Is the DKOS 45° Hydraulic End, Type ZMW322, Heavy Series, AISI 316L Steel compatible with standard crimping sleeves for my hose type?

Yes — DKOS 45° Hydraulic End, Type ZMW322, Heavy Series, AISI 316L Steel is compatible with standard crimping sleeves for your hose type, provided you use a sleeve matched to that hose. The product description explicitly states it is engineered for use with crimping sleeves matched to the hose type and features a classic hose tail, internal metric thread and nut for precise assembly, and a 24° cone with O‑ring (DKOS) for reliable sealing under high pressure. To ensure proper crimping and seal integrity, confirm: - the sleeve dimensions and profile match your hose manufacturer’s specification; - the crimping machine die set is correct for the sleeve/hose combination; - the sleeve material is suitable for AISI 316L fittings and your application (pressure, media, environment). When these conditions are met, the fitting will deliver secure, long‑lasting connections.

Can the DKOS 45° Hydraulic End, Type ZMW322, Heavy Series, AISI 316L Steel be used with non-standard or specialty crimping sleeves for specialized hose assemblies?

DKOS 45° Hydraulic End, Type ZMW322, Heavy Series, AISI 316L Steel Format — Yes, but with important caveats. The fitting is engineered for use with crimping sleeves matched to the hose type; using non‑standard or specialty sleeves can be possible only if those sleeves replicate the original sleeve’s diameter, material compatibility, crimp profile, and mechanical performance (burst, pull‑out, fatigue). Because this is a 24° cone with O‑ring sealing and an internal metric thread/nut, any alternative sleeve must ensure proper compression of the hose on the barb and maintain the sealing face alignment under pressure. Deviating from manufacturer‑specified sleeves risks poor sealing, reduced mechanical strength, leakage, or premature failure—especially under high pressure or corrosive conditions where AISI 316L was chosen for durability. Before using specialty sleeves, validate compatibility by: 1) confirming dimensional match and crimping specifications, 2) ensuring material corrosion compatibility with AISI 316L and the hose, 3) performing pressure and pull‑out tests per relevant standards, and 4) obtaining supplier or OEM approval. Without such verification, stick to sleeves specified for the hose and fitting.

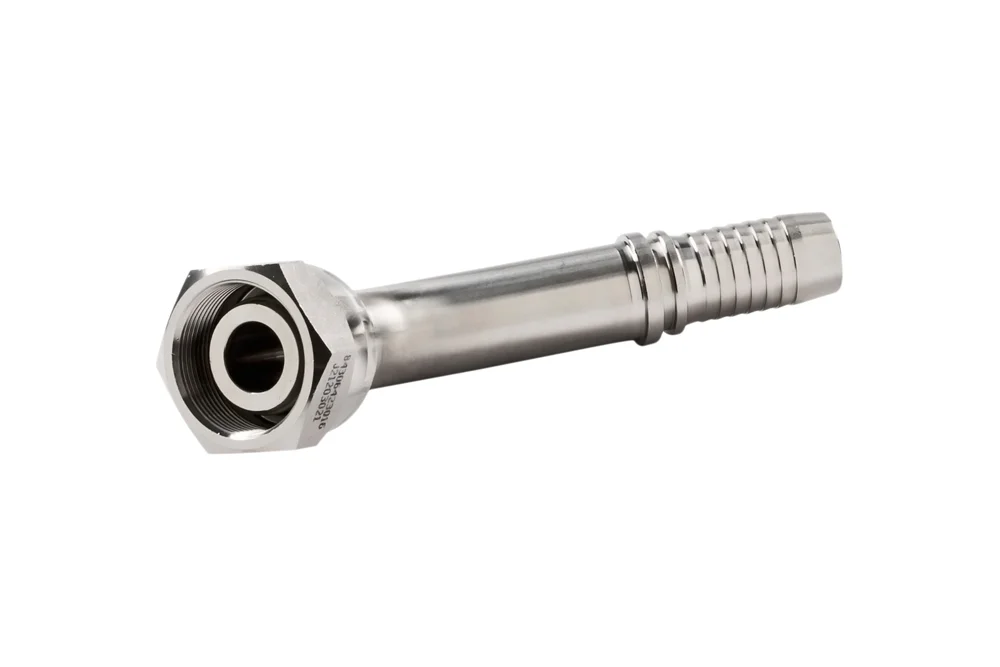

DKOS 45° Hydraulic End, Type ZMW322, Heavy Series, AISI 316L Steel

All products, Fittings for high-pressure hoses/

Additional information

Material	SS – stainless steel

This heavy-duty hydraulic fitting, crafted from premium AISI 316L stainless steel, features a standard type Z hydraulic end with a classic hose tail, ensuring secure and reliable connections in demanding applications. Designed with an internal metric thread and nut, it provides precise assembly and enhanced durability, while the 24° cone with O-ring (DKOS) guarantees excellent sealing performance even under high pressure. The 45° angled construction allows for flexible installation in confined spaces, optimizing hose routing and reducing stress on the system. Engineered for use with crimping sleeves matched to the hose type, this fitting delivers long-lasting resistance to corrosion, making it ideal for both hydraulic and industrial environments where reliability and safety are paramount.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-ZMW322-14-04-SS	End. 45° G thread M14x1.5, hose 1/4", 24°, o-ring, heavy, AISI 316L	6	-	In stock	Enquiry
TI-ZMW322-16-04-SS	End. 45° G thread M16x1.5, hose 1/4", 24°, o-ring, heavy, AISI 316L	6	-	In stock	Enquiry
TI-ZMW322-18-04-SS	End. 45° G thread M18x1.5, hose 1/4", 24°, o-ring, heavy, AISI 316L	6	-	In stock	Enquiry
TI-ZMW322-20-05-SS	End fitting 45° G1/2 M20x1.5, hose 5/16", 24°, o-ring, heavy, AIS316L	8	-	In stock	Enquiry
TI-ZMW322-20-06-SS	End fitting 45° G thread M20x1.5, hose 3/8", 24°, o-ring, heavy, AISI 316L	10	-	In stock	Enquiry
TI-ZMW322-22-06-SS	End. 45° G1/2 M22x1.5, hose 3/8", 24°, o-ring, heavy, AISI 316L	10	-	In stock	Enquiry
TI-ZMW322-24-08-SS	End. 45° G thread M24x1.5, hose 1/2", 24°, o-ring, heavy, AISI 316L	12	-	In stock	Enquiry
TI-ZMW322-30-10-SS	End. 45° G thread M30x2, hose 5/8", 24°, o-ring, heavy, AISI 316L	16	-	In stock	Enquiry
TI-ZMW322-30-12-SS	End. 45° G thread M30x2, hose 3/4", 24°, o-ring, heavy, AISI 316L	20	-	In stock	Enquiry
TI-ZMW322-36-12-SS	End. 45° GW M36x2, hose 3/4", 24°, o-ring, heavy, AISI 316L	20	-	In stock	Enquiry
TI-ZMW322-36-16-SS	End. 45° GW M36x2, hose 1", 24°, o-ring, heavy, AISI 316L	25	-	In stock	Enquiry
TI-ZMW322-42-16-SS	End. 45° GW M42x2, hose 1", 24°, o-ring, heavy, AISI 316L	25	-	In stock	Enquiry
TI-ZMW322-52-20-SS	End. 45° GW M52x2, hose 1.1/4", 24°, o-ring, heavy, AISI 316L	32	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

This heavy-duty hydraulic fitting, crafted from premium AISI 316L stainless steel, features a standard type Z hydraulic end with a classic hose tail, ensuring secure and reliable connections in demanding applications. Designed with an internal metric thread and nut, it provides precise assembly and enhanced durability, while the 24° cone with O-ring (DKOS) guarantees excellent sealing performance even under high pressure. The 45° angled construction allows for flexible installation in confined spaces, optimizing hose routing and reducing stress on the system. Engineered for use with crimping sleeves matched to the hose type, this fitting delivers long-lasting resistance to corrosion, making it ideal for both hydraulic and industrial environments where reliability and safety are paramount.
