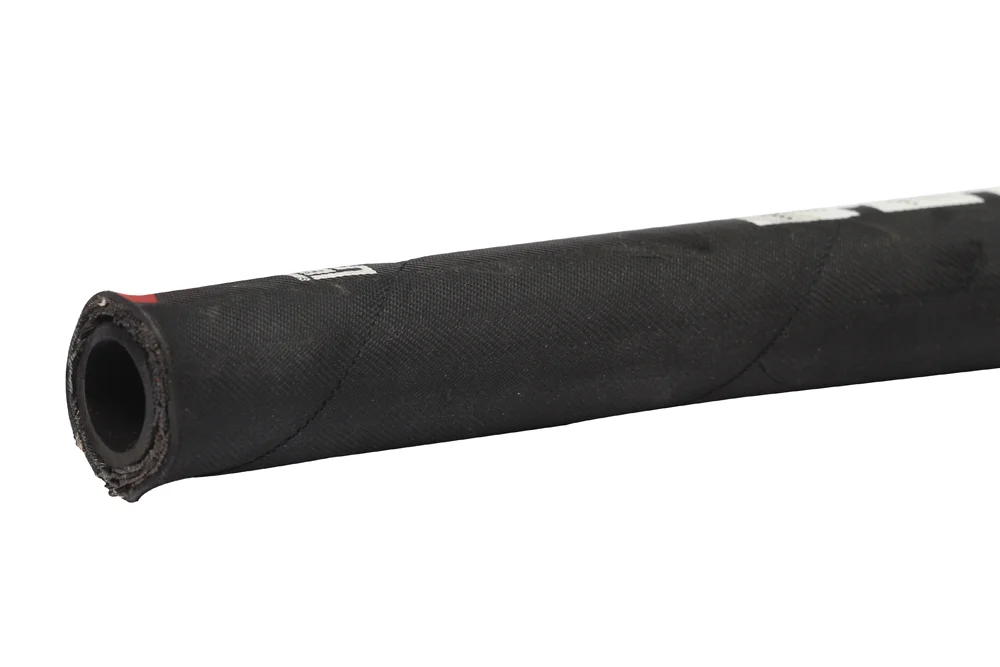

EN 853 2SN S Hydraulic Hose with Double Steel Braid

Additional information

Material

synthetic rubber

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

This versatile general-purpose hydraulic hose is engineered to deliver reliable performance across a wide range of demanding applications. Manufactured in compliance with EN 853 2SN and SAE100 R2AT standards, it features a durable inner layer made of black, oil-resistant synthetic rubber, ensuring excellent resistance to hydraulic fluids. Reinforced with a robust double steel braid, the hose offers outstanding strength and flexibility, making it suitable for both high-pressure and dynamic working conditions. The outer layer, also composed of oil-resistant synthetic rubber, provides additional protection against abrasion, weathering, and external damage, extending the service life even in harsh environments. With working pressures ranging from 80 bar up to 415 bar depending on the diameter, this hose guarantees safety and efficiency in hydraulic systems. It operates reliably in temperatures from -40°C to +100°C, with short-term resistance up to +120°C, while for water and air applications the maximum operating temperature is +70°C. For air pressures exceeding 17 bar, the hose requires micro-perforation of the outer layer to ensure safe use. Designed for versatility, durability, and consistent performance, this hydraulic hose is the ideal solution for industries seeking dependable fluid transfer under challenging conditions.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
HW-2SN-05SHydraulic hose EN 853 2SN 3/16"5415In stock
Enquiry
HW-2SN-06SHydraulic hose EN 853 2SN 1/4"6400In stock
Enquiry
HW-2SN-08SHydraulic hose EN 853 2SN 5/16"8350In stock
Enquiry
HW-2SN-10SHydraulic hose EN 853 2SN 3/8"10330In stock
Enquiry
HW-2SN-13SHydraulic hose EN 853 2SN 1/2"12275In stock
Enquiry
HW-2SN-16SHydraulic hose EN 853 2SN 5/8"16250In stock
Enquiry
HW-2SN-19SHydraulic hose EN 853 2SN 3/4"20215In stock
Enquiry
HW-2SN-25SHydraulic hose EN 853 2SN 1"25165In stock
Enquiry
HW-2SN-32SHydraulic hose EN 853 2SN 1.1/4"32125In stock
Enquiry
HW-2SN-38SHydraulic hose EN 853 2SN 1.1/2"3890In stock
Enquiry
HW-2SN-51SHydraulic hose EN 853 2SN 2"5078In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This versatile general-purpose hydraulic hose is engineered to deliver reliable performance across a wide range of demanding applications. Manufactured in compliance with EN 853 2SN and SAE100 R2AT standards, it features a durable inner layer made of black, oil-resistant synthetic rubber, ensuring excellent resistance to hydraulic fluids. Reinforced with a robust double steel braid, the hose offers outstanding strength and flexibility, making it suitable for both high-pressure and dynamic working conditions. The outer layer, also composed of oil-resistant synthetic rubber, provides additional protection against abrasion, weathering, and external damage, extending the service life even in harsh environments. With working pressures ranging from 80 bar up to 415 bar depending on the diameter, this hose guarantees safety and efficiency in hydraulic systems. It operates reliably in temperatures from -40°C to +100°C, with short-term resistance up to +120°C, while for water and air applications the maximum operating temperature is +70°C. For air pressures exceeding 17 bar, the hose requires micro-perforation of the outer layer to ensure safe use. Designed for versatility, durability, and consistent performance, this hydraulic hose is the ideal solution for industries seeking dependable fluid transfer under challenging conditions.

Additional information

Material

synthetic rubber

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Do you need a larger quantity of products or a bespoke quote?
