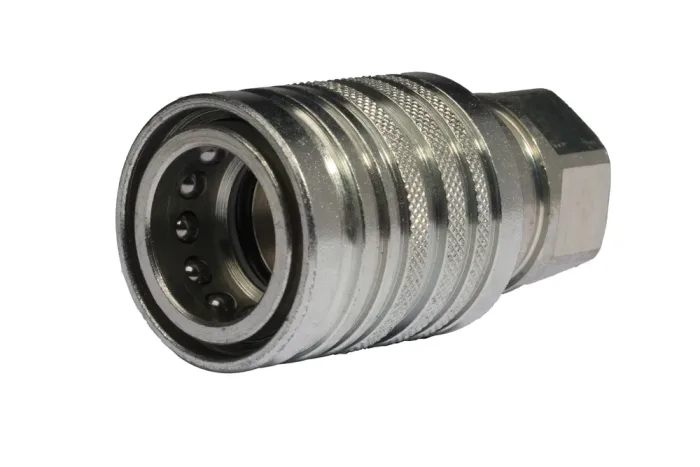

ISO-A hydraulic quick-coupling socket with a female BSP thread with valve, PUSH PULL, type PPV1

Additional information

Material

CS – steel (cast iron)

ISO-A hydraulic quick-coupling socket with a shut-off valve and thread internal BSP. version “push-pull” – Automatic disconnection at accidental tensioning line. Application: hydraulics power (oil hydraulic). quick coupling used mainly in machines agricultural. Commonly called “euro couplings”. interchangeable with quick coupling ISO-A other manufacturers. Material: steel galvanized. sealing socket: NBR. Operating temperature: od -25°C up to +100°C. Working pressure: 250 bar. Safety factor 4:1. Flow rate has been stated at Δp = 3 bar.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
DP-PPV1-1313002Socket DN12 with 1/2" female, seal NBR-250In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

ISO-A hydraulic quick-coupling socket with a shut-off valve and thread internal BSP. version “push-pull” – Automatic disconnection at accidental tensioning line. Application: hydraulics power (oil hydraulic). quick coupling used mainly in machines agricultural. Commonly called “euro couplings”. interchangeable with quick coupling ISO-A other manufacturers. Material: steel galvanized. sealing socket: NBR. Operating temperature: od -25°C up to +100°C. Working pressure: 250 bar. Safety factor 4:1. Flow rate has been stated at Δp = 3 bar.

Additional information

Material

CS – steel (cast iron)
