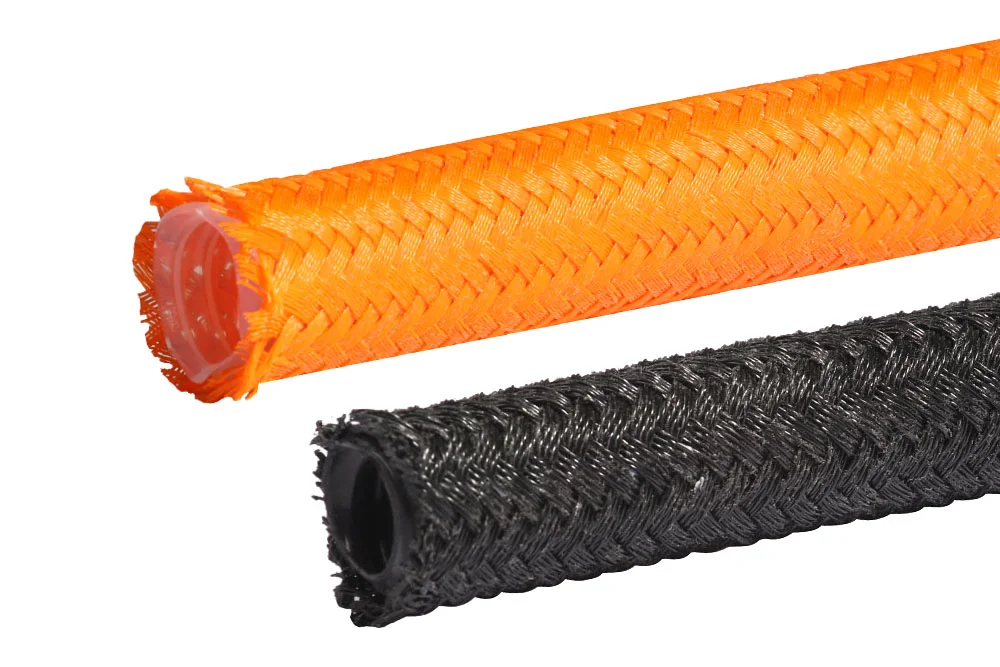

Hose PTFE in braid polypropylene HYPERLINE V (VISIFLON)
Hose HYPERLINE V (VISIFLON) has layer inner made with high quality serrated PTFE ensuring exceptional flexibility hose and resistance to vibration. has braid with fibre polypropylene characterized by low mass and high resistance chemical. at temperature use above +80°C maximum pressure working should reduced o 5% on each 1°C rise temperatures. for example at temperature 90ºC maximum pressure working for hose AF-VFPB-19 is: 16 bar – (90°C-80°C) x 5 = 16 bar – 50% = 8 bar. exists possibility order version in black braid polymer (version PBB), o similar characteristics as version PB, for applications tam, where color bright not can be used. available versions: standard (orange) and antistatic (black). antistatic teflon version AS, contains appropriate distributed in PTFE carbon and has resistance R 8 Ω (in accordance with the standard ISO 8031 anex A). ensures to discharge and dissipation charges electric. Hose material: spirally Serrated PTFE (teflon). Reinforcement: braid polypropylene. Working pressure: from 12.5 bar to 30 bar – depending on the diameter hose. Operating temperature: od -30°C up to +100°C. resistant to full vacuum for temperatures: +80°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Hose HYPERLINE V (VISIFLON) has layer inner made with high quality serrated PTFE ensuring exceptional flexibility hose and resistance to vibration. has braid with fibre polypropylene characterized by low mass and high resistance chemical. at temperature use above +80°C maximum pressure working should reduced o 5% on each 1°C rise temperatures. for example at temperature 90ºC maximum pressure working for hose AF-VFPB-19 is: 16 bar – (90°C-80°C) x 5 = 16 bar – 50% = 8 bar. exists possibility order version in black braid polymer (version PBB), o similar characteristics as version PB, for applications tam, where color bright not can be used. available versions: standard (orange) and antistatic (black). antistatic teflon version AS, contains appropriate distributed in PTFE carbon and has resistance R 8 Ω (in accordance with the standard ISO 8031 anex A). ensures to discharge and dissipation charges electric. Hose material: spirally Serrated PTFE (teflon). Reinforcement: braid polypropylene. Working pressure: from 12.5 bar to 30 bar – depending on the diameter hose. Operating temperature: od -30°C up to +100°C. resistant to full vacuum for temperatures: +80°C.
Additional information
| Material | PTFE – teflon and similar |
|---|---|
| Maximum operating temperature [°C] | 100 |
| Minimum operating temperature [°C] | -30 |
| Vacuum resistance | yes |
