Is the ISO-F Hydraulic Quick Coupling Socket, BSP Female Thread, Carbon Steel, Type PLT1 compatible with other ISO-F couplings from different manufacturers?

Yes. The ISO-F Hydraulic Quick Coupling Socket, BSP Female Thread, Carbon Steel, Type PLT1 is fully interchangeable with ISO-F quick couplings from other manufacturers. Its flat-face ISO-F design, standardized dimensions and sealing options (NBR or Viton), and BSP internal thread ensure mechanical and hydraulic compatibility. The product’s conformity to ISO-F flat-face standards means it will mate correctly, maintain the non-drip performance, and preserve flow characteristics and pressure ratings (up to 300 bar depending on size) when paired with other compliant ISO-F couplings. Safety features like the integrated shut-off valve and safety pin function as intended with other ISO-F components, providing reliable, cross-brand interoperability for construction and heavy-duty hydraulic systems.

Can the ISO-F Hydraulic Quick Coupling Socket, BSP Female Thread, Carbon Steel, Type PLT1 be used safely in cold environments down to -25°C without performance loss?

Yes. The ISO-F Hydraulic Quick Coupling Socket, BSP Female Thread, Carbon Steel, Type PLT1 can be used safely in cold environments down to -25°C without loss of performance. The product description specifies sealing options in NBR or Viton that guarantee secure performance across a wide temperature range from -25°C to +200°C. Its robust galvanized carbon steel body, flat-face non-drip design, and working pressure rating up to 300 bar (with a 4:1 safety factor) ensure reliable operation and durability at -25°C. For best results, confirm the chosen seal material (NBR or Viton) is appropriate for your specific fluid and application, and follow manufacturer guidance for installation, maintenance, and compatibility with mating couplings.

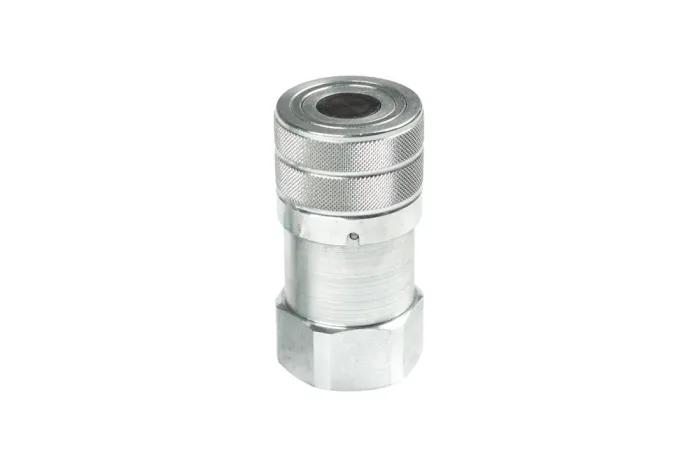

ISO-F hydraulic quick-coupling socket with a female BSP thread of carbon steel, type PLT1

All products, Hydraulic quick couplings/

Additional information

Material	CS – steel (cast iron)

Leak-free socket quick coupling “flat-face” ISO-F with a shut-off valve and thread internal BSP. Application: hydraulics power (oil hydraulic). intended mainly for machine construction. socket has stem securing against accidental disconnection. quick coupling can be operated one hand. interchangeable with quick coupling ISO-F other manufacturers. Material: steel galvanized. sealing: NBR, Viton. Operating temperature: od -25°C up to +200°C (depending on kinds seal). Working pressure: up to 300 bar (depending on size quick coupling). Safety factor 4:1. Flow rate has been stated at Δp = 3 bar.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
DP-PLT1-0606002	Socket DN6 with 1/4" BSP female, seal NBR, with a valve	-	300	In stock	Enquiry
DP-PLT1-1310002	Socket DN10 with 3/8" BSP female, seal NBR, with a valve	-	250	In stock	Enquiry
DP-PLT1-1313002	Socket DN10 with 1/2" BSP female, seal NBR, with a valve	-	250	In stock	Enquiry
DP-PLT1-2013002	Socket DN12 with 1/2" BSP female, seal NBR, with a valve	-	250	In stock	Enquiry
DP-PLT1-2019002	Socket DN12 with 3/4" BSP female, seal NBR, with a valve	-	250	In stock	Enquiry
DP-PLT1-2519002	Socket DN19 with 3/4" BSP female, seal NBR, with a valve	-	250	In stock	Enquiry
DP-PLT1-2525002	Socket DN19 with 1" BSP female, seal NBR, with a valve	-	250	In stock	Enquiry
DP-PLT1-2525002-V	Socket DN19 with 1" BSP female, seal Viton, with a valve	-	250	In stock	Enquiry
DP-PLT1-3031002	Socket DN25 with 1.1/4" BSP female, seal NBR, with a valve	-	250	In stock	Enquiry
DP-PLT1-3031002-V	Socket DN25 with 1.1/4" BSP female, seal Viton, with a valve	-	250	In stock	Enquiry
DP-PLT1-3939002	Socket DN40 with 1.1/2" BSP female, seal NBR, with a valve	-	250	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Leak-free socket quick coupling “flat-face” ISO-F with a shut-off valve and thread internal BSP. Application: hydraulics power (oil hydraulic). intended mainly for machine construction. socket has stem securing against accidental disconnection. quick coupling can be operated one hand. interchangeable with quick coupling ISO-F other manufacturers. Material: steel galvanized. sealing: NBR, Viton. Operating temperature: od -25°C up to +200°C (depending on kinds seal). Working pressure: up to 300 bar (depending on size quick coupling). Safety factor 4:1. Flow rate has been stated at Δp = 3 bar.
