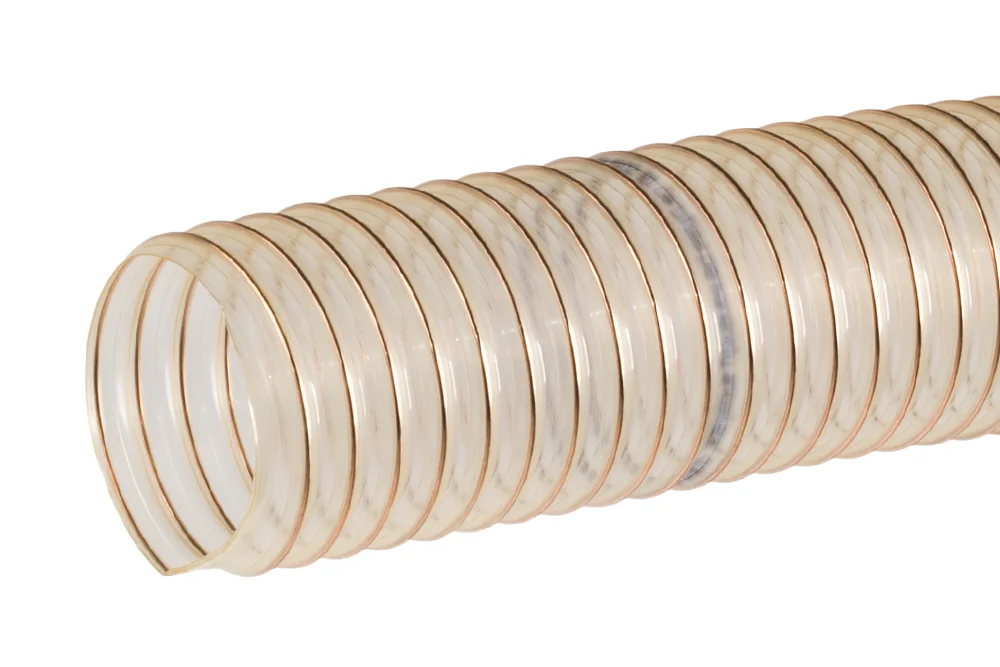

Hose for extraction light bulk materials SMARTFLEX® 0.4

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10, 2, 25

Reinforcement

steel spiral

Very light and flexible hose intended for discharge air, dust, dusts, fine sawdust and chips, very light bulk materials etc. Specially designed according to the requirements of the wood and furniture industry, it can also be used in other industries. compliant with the standard DIN 26057 Type 1. Antistatic and flame-retardant, it ensures a high level of work safety. very pliable and compressible, flexible also in low temperatures. With very good abrasion resistance, also resistant to microbes and hydrolysis. Contains no halogen compounds or plasticisers. Resistant to oils and petrol. The optimal flow direction of the medium is marked with an arrow. The hose wall thickness is measured between the spiral. Assembly on connectors with bridge clamps (prawo-handed). Other diameters may be available on special order. Anti-electrostatic properties: permanently antistatic (in accordance with ISO 8031 resistance R 9 Ω, in accordance with the German technical regulations TRGS 727 (6.4.2.4) specific resistance R 8 Ωm, in accordance with directive 2014/34/EU (ATEX) it can be used in specified explosion-hazard zones – which should be preceded by a risk analysis). After effective two-sided earthing of the spiral, it can be treated as electrically conductive – in accordance with BGI 739-2 recommendations. Flame-retardant – in accordance with DIN 4102 class B1. Hose material: transparent polyether-polyurethane. Reinforcement: spiral with wire steel. Wall thickness measured between the spiral: 0.4 mm. Operating temperature: od -40°C up to +100°C (momentarily up to +125°C).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
SC-SMARTFLEX-025-04SMARTFLEX hose 0.4 25 mm250.6In stock0 €
Enquiry
SC-SMARTFLEX-030-04SMARTFLEX hose 0.4 30 mm300.55In stock0 €
Enquiry
SC-SMARTFLEX-032-04SMARTFLEX Hose 0.4 32 mm320.53In stock0 €
Enquiry
SC-SMARTFLEX-035-04SMARTFLEX Hose 0.4 35 mm350.52In stock0 €
Enquiry
SC-SMARTFLEX-038-04SMARTFLEX hose 0.4 38 mm380.51In stock0 €
Enquiry
SC-SMARTFLEX-040-04SMARTFLEX hose 0.4 40 mm400.5In stock0 €
Enquiry
SC-SMARTFLEX-050-04SMARTFLEX hose 0.4 50 mm500.4In stock0 €
Enquiry
SC-SMARTFLEX-055-04SMARTFLEX hose 0.4 55 mm550.4In stock0 €
Enquiry
SC-SMARTFLEX-060-04SMARTFLEX Hose 0.4 60 mm600.4In stock0 €
Enquiry
SC-SMARTFLEX-063-04SMARTFLEX hose 0.4 63 mm650.37In stock0 €
Enquiry
SC-SMARTFLEX-065-04SMARTFLEX Hose 0.4 65 mm650.35In stock0 €
Enquiry
SC-SMARTFLEX-070-04SMARTFLEX Hose 0.4 70 mm700.32In stock0 €
Enquiry
SC-SMARTFLEX-075-04SMARTFLEX Hose 0.4 75 mm750.29In stock0 €
Enquiry
SC-SMARTFLEX-080-04SMARTFLEX hose 0.4 80 mm800.27In stock0 €
Enquiry
SC-SMARTFLEX-090-04SMARTFLEX hose 0.4 90 mm900.23In stock0 €
Enquiry
SC-SMARTFLEX-100-04SMARTFLEX Hose 0.4 100 mm1000.2In stock0 €
Enquiry
SC-SMARTFLEX-110-04SMARTFLEX hose 0.4 110 mm1100.2In stock0 €
Enquiry
SC-SMARTFLEX-115-04SMARTFLEX hose 0.4 115 mm1100.2In stock0 €
Enquiry
SC-SMARTFLEX-120-04SMARTFLEX Hose 0.4 120 mm1200.2In stock0 €
Enquiry
SC-SMARTFLEX-125-04SMARTFLEX hose 0.4 125 mm1250.18In stock0 €
Enquiry
SC-SMARTFLEX-130-04SMARTFLEX hose 0.4 130 mm1300.17In stock0 €
Enquiry
SC-SMARTFLEX-140-04SMARTFLEX hose 0.4 140 mm1400.15In stock0 €
Enquiry
SC-SMARTFLEX-150-04SMARTFLEX hose 0.4 150 mm1500.1In stock0 €
Enquiry
SC-SMARTFLEX-160-04SMARTFLEX hose 0.4 160 mm1600.09In stock0 €
Enquiry
SC-SMARTFLEX-165-04SMARTFLEX Hose 0.4 165 mm1600.09In stock0 €
Enquiry
SC-SMARTFLEX-170-04SMARTFLEX Hose 0.4 170 mm1600.09In stock0 €
Enquiry
SC-SMARTFLEX-180-04SMARTFLEX Hose 0.4 180 mm1800.09In stock0 €
Enquiry
SC-SMARTFLEX-200-04SMARTFLEX Hose 0.4 200 mm2000.08In stock0 €
Enquiry
SC-SMARTFLEX-225-04SMARTFLEX Hose 0.4 225 mm2250.06In stock0 €
Enquiry
SC-SMARTFLEX-230-04SMARTFLEX hose 0.4 230 mm2250.05In stock0 €
Enquiry
SC-SMARTFLEX-250-04SMARTFLEX hose 0.4 250 mm2500.05In stock0 €
Enquiry
SC-SMARTFLEX-300-04SMARTFLEX Hose 0.4 300 mm3000.03In stock0 €
Enquiry
SC-SMARTFLEX-350-04SMARTFLEX Hose 0.4 350 mm3500.02In stock0 €
Enquiry
SC-SMARTFLEX-400-04SMARTFLEX Hose 0.4 400 mm4000.01In stock0 €
Enquiry
SC-SMARTFLEX-450-04SMARTFLEX hose 0.4 450 mm4500.01In stock0 €
Enquiry
SC-SMARTFLEX-500-04SMARTFLEX Hose 0.4 500 mm5000.01In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Very light and flexible hose intended for discharge air, dust, dusts, fine sawdust and chips, very light bulk materials etc. Specially designed according to the requirements of the wood and furniture industry, it can also be used in other industries. compliant with the standard DIN 26057 Type 1. Antistatic and flame-retardant, it ensures a high level of work safety. very pliable and compressible, flexible also in low temperatures. With very good abrasion resistance, also resistant to microbes and hydrolysis. Contains no halogen compounds or plasticisers. Resistant to oils and petrol. The optimal flow direction of the medium is marked with an arrow. The hose wall thickness is measured between the spiral. Assembly on connectors with bridge clamps (prawo-handed). Other diameters may be available on special order. Anti-electrostatic properties: permanently antistatic (in accordance with ISO 8031 resistance R 9 Ω, in accordance with the German technical regulations TRGS 727 (6.4.2.4) specific resistance R 8 Ωm, in accordance with directive 2014/34/EU (ATEX) it can be used in specified explosion-hazard zones – which should be preceded by a risk analysis). After effective two-sided earthing of the spiral, it can be treated as electrically conductive – in accordance with BGI 739-2 recommendations. Flame-retardant – in accordance with DIN 4102 class B1. Hose material: transparent polyether-polyurethane. Reinforcement: spiral with wire steel. Wall thickness measured between the spiral: 0.4 mm. Operating temperature: od -40°C up to +100°C (momentarily up to +125°C).

Additional information

Material

PU – polyurethane

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

10, 2, 25

Reinforcement

steel spiral
