Does the M Nut WALForm® DIN 2353 with Seal, Carbon Steel require special installation tools or torque settings for use with Eaton Walterscheid™ DIN 2353 couplings (type M)?

M Nut WALForm® DIN 2353 with Seal, Carbon Steel does not intrinsically require special proprietary installation tools beyond standard tools used for DIN 2353 (type M) fittings. It is designed to fit Eaton Walterscheid™ DIN 2353 couplings (type M) using the same spanners/wrenches and assembly procedure as conventional DIN 2353 nuts. However, for reliable, leak‑free joints and to avoid damage to the precision metric thread and integrated Viton seal, follow these practical recommendations: - Use properly sized, non‑marring open or box spanners/wrenches that fit the nut flats to prevent rounding. - Clean mating surfaces and threads; inspect for damage before assembly. - Assemble per the coupling manufacturer’s DIN 2353 installation procedure (flare/ferule seating sequence for type M). The WALForm® nut’s precision thread and seal are compatible with standard seating practices. - Torque: the M Nut WALForm® does not mandate a unique torque value in its description. Apply the torque values or tightening method specified by Eaton Walterscheid™ or relevant DIN 2353 installation guidelines for type M fittings. If manufacturer torque tables are unavailable, tighten to firm seating and then follow any recommended additional rotation or test‑pressure checks per DIN practice rather than guessing a high torque that could deform the ferule or seal. - When reassembling, replace any deformed ferules or damaged components and replace the nut if the seal or threads show wear. If you require exact torque numbers for a specific size or series (L or S), consult Eaton Walterscheid™/DIN 2353 torque tables or the WALForm® technical datasheet for that size.

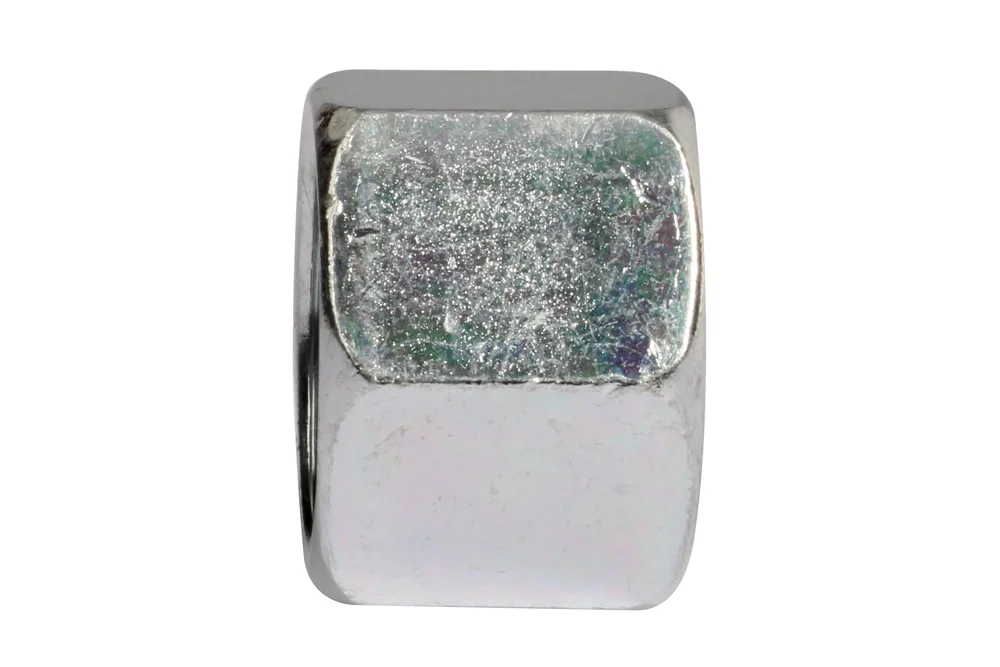

M Nut WALForm® DIN 2353 with Seal, Carbon Steel

Q: Is the M Nut WALForm® DIN 2353 with Seal, Carbon Steel compatible with Eaton Walterscheid™ DIN 2353 couplings (type M) and resistant to hydraulic fluids and high temperatures?

Yes. The M Nut WALForm® DIN 2353 with Seal, Carbon Steel is compatible with Eaton Walterscheid™ DIN 2353 couplings (type M). It features a precision‑engineered metric thread for a tight, leak‑free fit with type M couplings and is offered in both L (light) and S (heavy) series to match application requirements. Made from robust carbon steel with a Guardian Seal™ coating, it resists corrosion and wear for extended service life. The integrated Viton seal provides excellent chemical compatibility with common hydraulic fluids and strong resistance to high temperatures, ensuring reliable, durable performance in demanding hydraulic environments.

Additional information

The WALForm® nut with metric thread and integrated Viton seal is a high‑performance solution designed for reliable use with Eaton Walterscheid™ DIN 2353 couplings, type M. Available in both L (light series) and S (heavy series), it ensures secure connections across a wide range of hydraulic applications. Manufactured from robust carbon steel and enhanced with the advanced Guardian Seal™ coating, the nut delivers outstanding resistance to corrosion and wear, extending service life even in demanding environments. The precision‑engineered metric thread guarantees a tight, leak‑free fit, while the Viton seal provides excellent chemical and temperature resistance, ensuring consistent performance under pressure. This combination of durability, safety, and efficiency makes the WALForm® nut an ideal choice for industries seeking reliable, long‑lasting hydraulic connections with minimized maintenance needs.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-MWF-06L-W	DIN 2353 nut with WALForm seal MWF 6L M12x1.5	-	-	In stock	Enquiry
HD-MWF-06S-W	DIN 2353 nut with WALForm seal MWF 6S M14x1.5	-	-	In stock	Enquiry
HD-MWF-08L-W	DIN 2353 nut with seal WALForm MWF 8L M14x1.5	-	-	In stock	Enquiry
HD-MWF-08S-W	DIN 2353 nut with seal WALForm MWF 8S M16x1.5	-	-	In stock	Enquiry
HD-MWF-10L-W	DIN 2353 nut with seal WALForm MWF 10L M16x1.5	-	-	In stock	Enquiry
HD-MWF-10S-W	DIN 2353 nut with WALForm seal MWF 10S M18x1.5	-	-	In stock	Enquiry
HD-MWF-12L-W	DIN 2353 nut with WALForm seal MWF 12L M18x1.5	-	-	In stock	Enquiry
HD-MWF-12S-W	DIN 2353 nut with WALForm seal MWF 12S M20x1.5	-	-	In stock	Enquiry
HD-MWF-15L-W	DIN 2353 nut with seal WALForm MWF 15L M22x1.5	-	-	In stock	Enquiry
HD-MWF-16S-W	DIN 2353 nut with WALForm seal MWF 16S M24x1.5	-	-	In stock	Enquiry
HD-MWF-18L-W	DIN 2353 nut with seal WALForm MWF 18L M26x1.5	-	-	In stock	Enquiry
HD-MWF-20S-W	DIN 2353 nut with seal WALForm MWF 20S M30x2	-	-	In stock	Enquiry
HD-MWF-22L-W	DIN 2353 nut with seal WALForm MWF 22L M30x2	-	-	In stock	Enquiry
HD-MWF-25S-W	DIN 2353 nut with seal WALForm MWF 25S M36x2	-	-	In stock	Enquiry
HD-MWF-28L-W	DIN 2353 nut with seal WALForm MWF 28L M36x2	-	-	In stock	Enquiry
HD-MWF-30S-W	DIN 2353 nut with seal WALForm MWF 30S M42x2	-	-	In stock	Enquiry
HD-MWF-35L-W	DIN 2353 nut with seal WALForm MWF 35L M45x2	-	-	In stock	Enquiry
HD-MWF-38S-W	DIN 2353 nut with seal WALForm MWF 38S M52x2	-	-	In stock	Enquiry
HD-MWF-42L-W	DIN 2353 nut with seal WALForm MWF 42L M52x2	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The WALForm® nut with metric thread and integrated Viton seal is a high‑performance solution designed for reliable use with Eaton Walterscheid™ DIN 2353 couplings, type M. Available in both L (light series) and S (heavy series), it ensures secure connections across a wide range of hydraulic applications. Manufactured from robust carbon steel and enhanced with the advanced Guardian Seal™ coating, the nut delivers outstanding resistance to corrosion and wear, extending service life even in demanding environments. The precision‑engineered metric thread guarantees a tight, leak‑free fit, while the Viton seal provides excellent chemical and temperature resistance, ensuring consistent performance under pressure. This combination of durability, safety, and efficiency makes the WALForm® nut an ideal choice for industries seeking reliable, long‑lasting hydraulic connections with minimized maintenance needs.
