Is the Mini DN5 Air Quick-Connect Socket, Threaded, Nickel-Plated Brass, 16 bar compatible with RECTUS 21 and EURO DN 5 couplings from other manufacturers?

Yes. The Mini DN5 Air Quick-Connect Socket, Threaded, Nickel-Plated Brass, 16 bar is fully interchangeable and compatible with RECTUS 21 and EURO DN 5 couplings from other manufacturers. It is designed to match those standards while offering high flow (540 l/min at Pe = 6 bar, Δp = 1 bar), one‑hand operation up to 8 bar, and a maximum working pressure of 16 bar.

Can the Mini DN5 Air Quick-Connect Socket, Threaded, Nickel-Plated Brass, 16 bar be used safely with nitrogen and other non-flammable gases at temperatures down to -10°C?

Yes. The Mini DN5 Air Quick-Connect Socket, Threaded, Nickel-Plated Brass, 16 bar can be used safely with nitrogen and other non‑flammable gases down to -10°C. The product description explicitly states it is designed for reliable performance with air, nitrogen and other non‑flammable gases, is sealed with NBR, and has a rated temperature range of -10°C to +90°C. Its construction of nickel‑plated brass, NBR sealing, and a maximum working pressure of 16 bar (one‑hand operation up to 8 bar) support safe use within those pressure and temperature limits. Always ensure compatibility with your specific gas purity and system requirements, and follow applicable safety standards and installation recommendations.

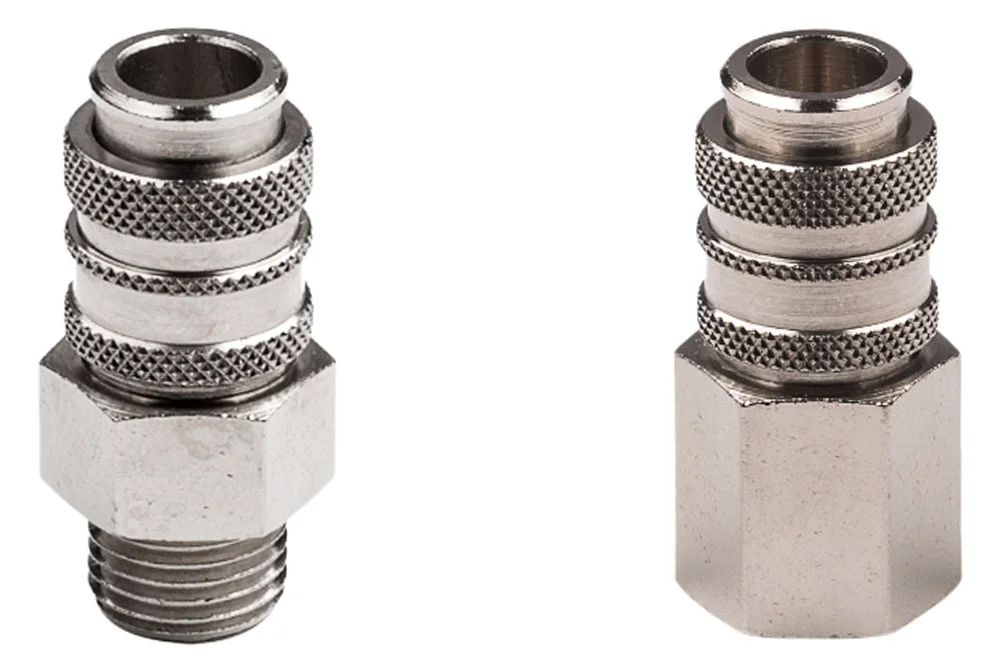

Mini DN5 Air Quick-Connect Socket, Threaded, Nickel-Plated Brass, 16 bar

All products, General-purpose low-pressure quick couplings/

Additional information

Material	B – brass (bronze)

The Eurostandard MINI DN 5 quick coupling socket with valve is a compact and highly efficient solution designed for demanding industrial applications, ensuring reliable performance with air, nitrogen, and other non-flammable gases. Available with either external or internal BSP thread, it combines small dimensions with outstanding flow capacity and minimal pressure drop, making it ideal for systems where efficiency and space-saving are crucial. Engineered for user convenience, it allows effortless one-hand operation at pressures up to 8 bar, while its robust construction supports a maximum working pressure of 16 bar. Delivering an impressive flow rate of 540 l/min (Pe = 6 bar, Δp = 1 bar), it guarantees consistent performance even in intensive use. Fully interchangeable with RECTUS 21 and EURO DN 5 couplings from other manufacturers, it offers flexibility and compatibility across different systems. Built from durable nickel-plated brass and sealed with NBR, it ensures long-lasting resistance to wear, corrosion, and temperature fluctuations ranging from -10°C to +90°C, making it a dependable choice for modern industrial environments.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TP-ES5-GW-02	MINI DN5 quick coupling socket, 1/8" BSP thread, nickel-plated brass	-	16	In stock	Enquiry
TP-ES5-GW-04	Mini quick coupling socket DN5, 1/4" BSP thread, nickel-plated brass	-	16	In stock	Enquiry
TP-ES5-GZ-02	MINI DN5 quick coupling socket, GZ 1/8" BSP, nickel-plated brass	-	16	In stock	Enquiry
TP-ES5-GZ-04	Mini quick coupling socket DN5, GZ 1/4" BSP, nickel-plated brass	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The Eurostandard MINI DN 5 quick coupling socket with valve is a compact and highly efficient solution designed for demanding industrial applications, ensuring reliable performance with air, nitrogen, and other non-flammable gases. Available with either external or internal BSP thread, it combines small dimensions with outstanding flow capacity and minimal pressure drop, making it ideal for systems where efficiency and space-saving are crucial. Engineered for user convenience, it allows effortless one-hand operation at pressures up to 8 bar, while its robust construction supports a maximum working pressure of 16 bar. Delivering an impressive flow rate of 540 l/min (Pe = 6 bar, Δp = 1 bar), it guarantees consistent performance even in intensive use. Fully interchangeable with RECTUS 21 and EURO DN 5 couplings from other manufacturers, it offers flexibility and compatibility across different systems. Built from durable nickel-plated brass and sealed with NBR, it ensures long-lasting resistance to wear, corrosion, and temperature fluctuations ranging from -10°C to +90°C, making it a dependable choice for modern industrial environments.
