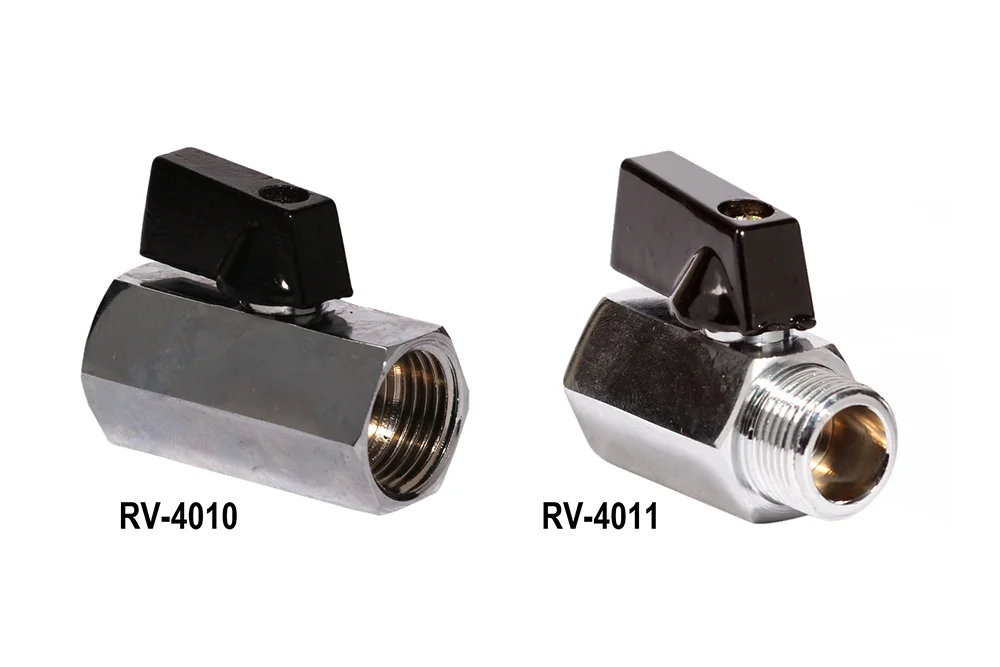

A compact, one-piece, brass ball valve MINI type 4010 / 4011
Straight, A universal, one-piece A mini valve ball shut-off for applications industrial. body made with hexagonal the rod with brass, nickel-plated, with a lever aluminum painted on black. ball with brass chrome-plated seated in seats with PTFE. stem with brass, with seal o-rings with NBR, has protection against blow-out. valve MINI It can be used for air, gases neutral, water, chemicals, products petrochemical etc., free od contaminants solid, compliant with resistance chemical materials valve. meets requirements the directive pressure PED 2014/68/UE, in the scope sound practice engineering (SEP), in accordance with art. 4 ust. 3 (without markings CE). compliant with the directive material RoHS 2011/65/UE and the regulation REACH 1907/2006. the given minimum temperature use refers to valve emptied with liquids freezing. Kv – factor flow valve expressed in units metric (Flow rate water in m 3 on hour at a drop pressure o 1 bar). Body material: brass nickel-plated. Material the ball: brass chrome-plated. Material stem: brass. Material lever: aluminum. sealing the ball: PTFE. sealing stem: 2 x O-ring NBR. Connection: thread BSP (ISO 228-1). Operating temperature: od -10°C up to +90°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Straight, A universal, one-piece A mini valve ball shut-off for applications industrial. body made with hexagonal the rod with brass, nickel-plated, with a lever aluminum painted on black. ball with brass chrome-plated seated in seats with PTFE. stem with brass, with seal o-rings with NBR, has protection against blow-out. valve MINI It can be used for air, gases neutral, water, chemicals, products petrochemical etc., free od contaminants solid, compliant with resistance chemical materials valve. meets requirements the directive pressure PED 2014/68/UE, in the scope sound practice engineering (SEP), in accordance with art. 4 ust. 3 (without markings CE). compliant with the directive material RoHS 2011/65/UE and the regulation REACH 1907/2006. the given minimum temperature use refers to valve emptied with liquids freezing. Kv – factor flow valve expressed in units metric (Flow rate water in m 3 on hour at a drop pressure o 1 bar). Body material: brass nickel-plated. Material the ball: brass chrome-plated. Material stem: brass. Material lever: aluminum. sealing the ball: PTFE. sealing stem: 2 x O-ring NBR. Connection: thread BSP (ISO 228-1). Operating temperature: od -10°C up to +90°C.
Additional information
| Material | B – brass (bronze) |
|---|
