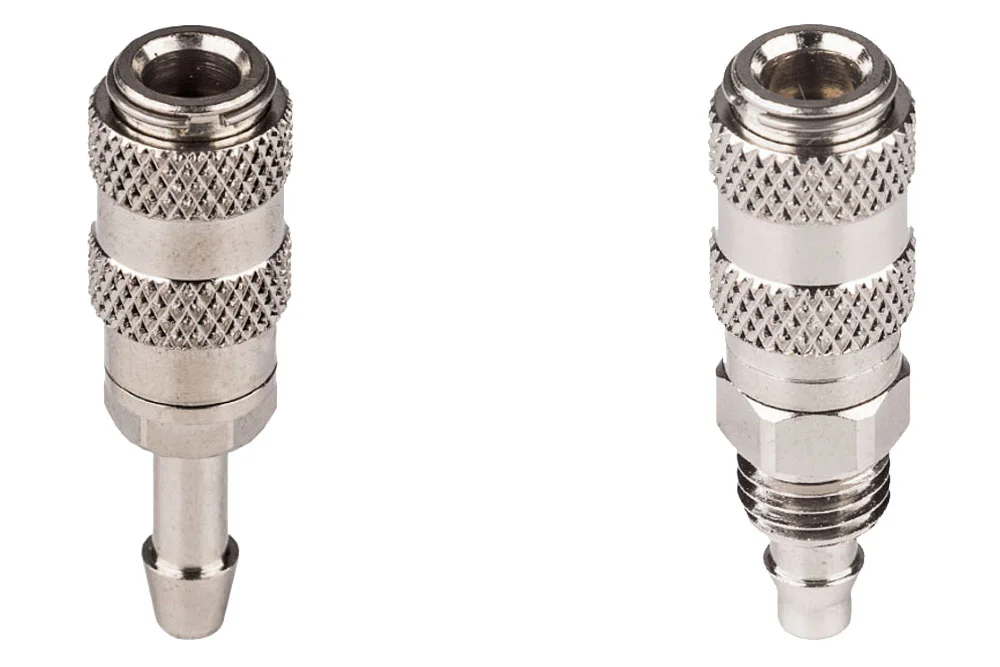

Miniature socket quick coupling DN2.7 for air, with valve, with fitting for hose, brass nickel-plated, 16 bar

Additional information

Material

B – brass (bronze)

Miniature socket quick coupling DN 2.7 with valve, with fitting for hose serrated or with fitting for hose plastic, screw-together a clamping ferrule. quick coupling have use everywhere tam, where required are small dimensions installation e.g. in technology medical, measurement, laboratory. interchangeable with RECTUS 20 and quick coupling DN 2.7 other manufacturers o this same profile plug. Application: pneumatics (air, nitrogen, other non-flammable gases). Working pressure: 16 bar. Flow rate: 228 l/min, Pe = 6 bar, Δp = 1 bar (air). Operating temperature: od -20°C up to +100°C. Material: brass nickel-plated, pins and spring of steel stainless. sealing: NBR.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
EW-MIKRO-GK-3Quick coupling socket MIKRO DN2.7, for 3 mm hose, brass nickel-plated316In stock0 €
Enquiry
EW-MIKRO-GK-4Quick coupling socket MIKRO DN2.7, for 4 mm hose, brass nickel-plated416In stock0 €
Enquiry
EW-MIKRO-GK-4X3Quick coupling socket MIKRO DN2.7, for a plastic hose 4x3 mm, brass nickel-plated316In stock0 €
Enquiry
EW-MIKRO-GK-5X3Quick coupling socket MIKRO DN2.7, for a plastic hose 5x3 mm, brass nickel-plated316In stock0 €
Enquiry
EW-MIKRO-GK-6X4Quick coupling socket MIKRO DN2.7, for a plastic hose 6x4 mm, brass nickel-plated416In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Miniature socket quick coupling DN 2.7 with valve, with fitting for hose serrated or with fitting for hose plastic, screw-together a clamping ferrule. quick coupling have use everywhere tam, where required are small dimensions installation e.g. in technology medical, measurement, laboratory. interchangeable with RECTUS 20 and quick coupling DN 2.7 other manufacturers o this same profile plug. Application: pneumatics (air, nitrogen, other non-flammable gases). Working pressure: 16 bar. Flow rate: 228 l/min, Pe = 6 bar, Δp = 1 bar (air). Operating temperature: od -20°C up to +100°C. Material: brass nickel-plated, pins and spring of steel stainless. sealing: NBR.

Additional information

Material

B – brass (bronze)
