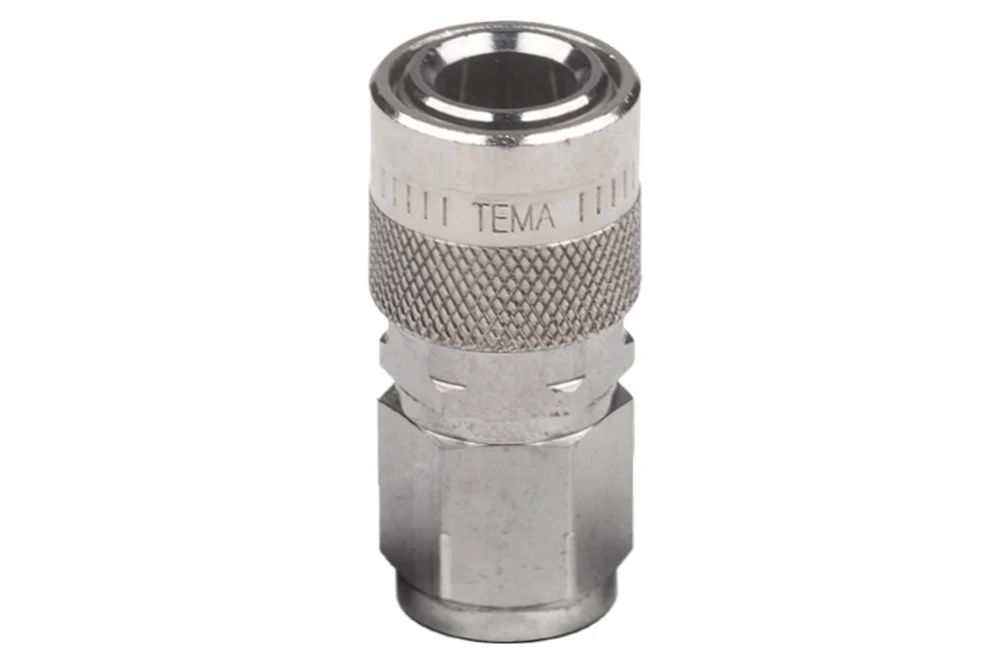

Socket quick coupling DN4.8 with valve, with thread, brass chrome-nickel-plated, series 1100N
Universal socket quick coupling double shut-off, with thread external or with thread internal BSP. intended primarily for liquids, to prevent leakage during disconnecting (for water, steam, oils and fuels). straight in use, durable, is characterized good flow at small sizes external. fittings series 1100N not should connect with the series 1100. operated two hands. Material: brass chrome-nickel-plated (body), steel stainless (balls and spring). flow capacity: 9.5 l/min (Δp = 1 bar, Kv=0.57 – water), 430 l/min (Pe=6 bar, Δp=0.5 bar – air). Working pressure: 20 bar (for steam 10 bar). Operating temperature: od -20°C up to +100°C (NBR – standard), od -25°C up to +200°C (Viton – option), od -50°C up to +150°C (EPDM – option), depending on medium.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
Universal socket quick coupling double shut-off, with thread external or with thread internal BSP. intended primarily for liquids, to prevent leakage during disconnecting (for water, steam, oils and fuels). straight in use, durable, is characterized good flow at small sizes external. fittings series 1100N not should connect with the series 1100. operated two hands. Material: brass chrome-nickel-plated (body), steel stainless (balls and spring). flow capacity: 9.5 l/min (Δp = 1 bar, Kv=0.57 – water), 430 l/min (Pe=6 bar, Δp=0.5 bar – air). Working pressure: 20 bar (for steam 10 bar). Operating temperature: od -20°C up to +100°C (NBR – standard), od -25°C up to +200°C (Viton – option), od -50°C up to +150°C (EPDM – option), depending on medium.
Additional information
| Material | B – brass (bronze) |
|---|
