Is the MSL threaded coupling with galvanized hose end, brass nut & aluminum clamp EN 14420-3 (DIN 2817) suitable for continuous use at 25 bar in LPG installations?

Yes. The MSL threaded coupling with galvanized hose end, brass nut & aluminum clamp EN 14420-3 (DIN 2817) is suitable for continuous use at 25 bar in LPG installations. It is manufactured to EN 14420-3 (DIN 2817) standards, uses a galvanized carbon steel fitting for corrosion and wear resistance, a brass nut with internal thread for a secure seal, and an aluminum shell clamp for durable hose retention. The product specification states a working pressure of up to 25 bar, indicating it is designed to deliver consistent, long-term performance at that pressure in professional liquefied gas systems.

Can the MSL threaded coupling with galvanized hose end, brass nut & aluminum clamp EN 14420-3 (DIN 2817) withstand pressure spikes above 25 bar in LPG systems?

MSL threaded coupling with galvanized hose end, brass nut & aluminum clamp EN 14420-3 (DIN 2817) is specified for a working pressure of up to 25 bar. It is designed and manufactured to meet EN 14420-3 (DIN 2817) standards using galvanized carbon steel fitting, brass nut and aluminum clamp, providing robust corrosion and mechanical resistance. However, it is not rated for sustained operation above 25 bar. Short-duration pressure spikes slightly above 25 bar may be tolerated depending on installation quality, system dynamics and applicable safety margins, but exceeding the certified working pressure risks seal or component failure and is not recommended. For systems subject to frequent or significant pressure spikes above 25 bar, select a coupling rated for the higher peak pressure and consult the manufacturer’s technical datasheet and a qualified engineer to verify suitability and safety.

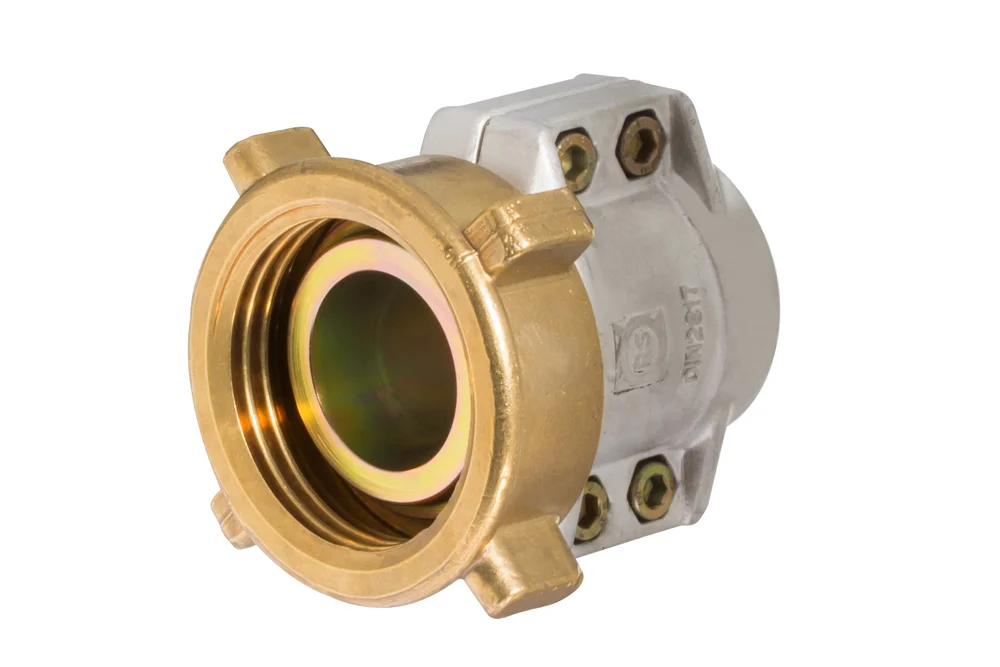

MSL threaded coupling with galvanized hose end, brass nut & aluminum clamp EN 14420-3 (DIN 2817)

All products, Threaded couplings and adapters/

Additional information

Material	CS – steel (cast iron)

The complete MSL coupling is a robust and reliable solution designed for secure hose connections in LPG installations, ensuring maximum safety and efficiency in demanding applications. Manufactured in accordance with EN 14420-3 (DIN 2817), it features a durable aluminum shell clamp combined with a precision-engineered brass nut and internal thread, guaranteeing a tight and stable fit. The fitting itself is made of high-quality galvanized carbon steel, providing excellent resistance to corrosion and mechanical wear, even under intensive use. With a working pressure of up to 25 bar, this coupling delivers consistent performance and long-lasting durability, making it an ideal choice for professional systems requiring dependable operation. Its carefully selected materials and standardized design not only enhance operational safety but also simplify installation and maintenance, offering users a cost-effective and efficient connection solution for liquefied gas components.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
GD-MSLA-225-032-STM-CL-06	MSL GW ACME 2.1/4" connector, 32 mm hose, galvanized steel/brass nut, with aluminum clamp 32x6 mm	32	25	In stock	Enquiry
GD-MSLA-225-038-STM-CL-65	MSL GW ACME 2.1/4" connector, 38 mm hose, galvanized steel/brass nut, with aluminum clamp 38x6.5 mm	38	25	In stock	Enquiry
GD-MSLA-325-050-STM-CL-08	MSL GW ACME 3.1/4" connector, 50 mm hose, galvanized steel/bronze nut, with aluminum clamp 50x8 mm	50	25	In stock	Enquiry
GD-MSLA-325-075-STM-CL-08	MSL GW ACME 3.1/4" connector, hose 75 mm, galvanized steel/brass nut, with aluminum clamp 75x8 mm	75	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The complete MSL coupling is a robust and reliable solution designed for secure hose connections in LPG installations, ensuring maximum safety and efficiency in demanding applications. Manufactured in accordance with EN 14420-3 (DIN 2817), it features a durable aluminum shell clamp combined with a precision-engineered brass nut and internal thread, guaranteeing a tight and stable fit. The fitting itself is made of high-quality galvanized carbon steel, providing excellent resistance to corrosion and mechanical wear, even under intensive use. With a working pressure of up to 25 bar, this coupling delivers consistent performance and long-lasting durability, making it an ideal choice for professional systems requiring dependable operation. Its carefully selected materials and standardized design not only enhance operational safety but also simplify installation and maintenance, offering users a cost-effective and efficient connection solution for liquefied gas components.
