Is the Profile Seal DIN3869, NBR 85 Shore compatible with both metric and inch threads per DIN 3852‑11E for high‑pressure applications?

Yes. The Profile Seal DIN3869, NBR 85 Shore is compatible with both metric and inch threads per DIN 3852‑11E for high‑pressure applications. Its profiled geometry conforms to DIN 3869 to provide an exact fit with DIN 3852‑11E thread forms, and the premium NBR (85 Shore) material offers high resistance to pressure, wear and deformation, ensuring reliable, long‑lasting sealing performance in hydraulic and pneumatic high‑pressure systems.

Can the Profile Seal DIN3869, NBR 85 Shore maintain sealing performance under fluctuating temperatures and pressure spikes in hydraulic systems?

Yes. The Profile Seal DIN3869, NBR 85 Shore is engineered to maintain sealing performance under fluctuating temperatures and pressure spikes typical for hydraulic systems. Key points: - Material resilience: NBR (nitrile rubber) at 85 Shore provides high resistance to compression set, wear and deformation, helping the seal recover after pressure excursions and thermal cycling. - Pressure capability: The profiled geometry and DIN 3869 standard design ensure secure metal-to-elastomer contact for high‑pressure metric and inch thread connections (per DIN 3852‑11E), minimizing extrusion and leakage during spikes. - Thermal stability: While NBR has defined operating temperature limits, its robust construction and precise fit reduce seal movement and maintain contact under normal hydraulic temperature variations; this supports consistent performance across typical system ranges. - Durability: The combination of premium NBR and exact profile reduces maintenance needs and extends service life, preserving sealing integrity through repeated pressure and temperature fluctuations. Note: For extreme temperatures outside NBR’s recommended range or unusually high transient pressures, verify compatibility with system conditions and consider alternative materials or protective design measures.

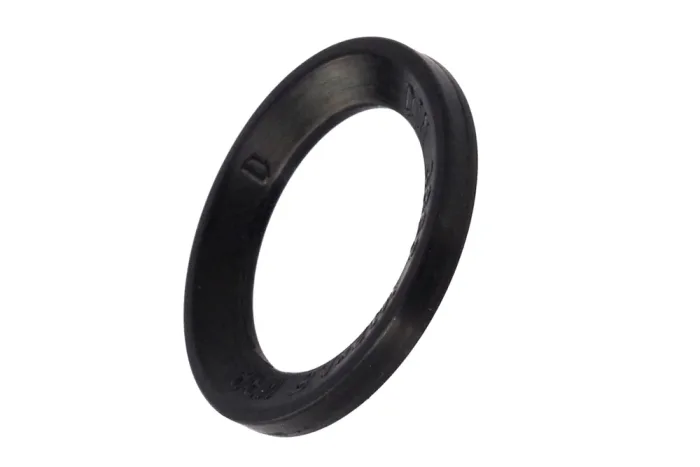

Profile Seal DIN3869, NBR

All products, General purpose seals/

Additional information

Maximum operating temperature [°C]	100
Minimum operating temperature [°C]	-30

The profiled gasket designed in compliance with DIN 3869 ensures a secure and reliable seal for high‑pressure connections with both metric and inch threads according to DIN 3852‑11E. Manufactured from premium‑quality NBR with a hardness of 85 Shore, it delivers outstanding resistance to pressure, wear, and deformation, guaranteeing long‑lasting performance even under demanding operating conditions. Its precise geometry provides an exact fit, minimizing the risk of leakage and enhancing the overall safety and efficiency of hydraulic and pneumatic systems. Thanks to its robust construction, the gasket is ideally suited for industrial applications where durability and reliability are critical, such as mechanical engineering, fluid technology, and high‑performance equipment. By combining standardized design with superior material properties, this gasket offers an optimal sealing solution that reduces maintenance needs, extends service life, and ensures consistent operational stability.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-UE-08	DIN3869 gasket 9.9x6.5x1 mm (M8)	-	-	In stock	Enquiry
TI-UE-10	DIN3869 gasket 11.9x8.4x1 mm (M10, 1/8" BSP)	-	-	In stock	Enquiry
TI-UE-12	DIN3869 gasket 14.4x9.8x1.5 mm (M12)	-	-	In stock	Enquiry
TI-UE-14	DIN3869 gasket 16.5x11.6x1.5 mm (M14, 1/4" BSP)	-	-	In stock	Enquiry
TI-UE-16	DIN3869 gasket 18.9x13.8x1.5 mm (M16)	-	-	In stock	Enquiry
TI-UE-17	DIN3869 gasket 18.9x14.7x1.5 mm (3/8" BSP)	-	-	In stock	Enquiry
TI-UE-18	DIN3869 gasket 20.9x15.7x1.5 mm (M18)	-	-	In stock	Enquiry
TI-UE-20	DIN3869 gasket 22.9x17.8x1.5 mm (M20)	-	-	In stock	Enquiry
TI-UE-21	DIN3869 gasket 23.9x18.5x1.5 mm (1/2" BSP)	-	-	In stock	Enquiry
TI-UE-22	DIN3869 gasket 24.3x19.6x1.5 mm (M22)	-	-	In stock	Enquiry
TI-UE-26	DIN3869 gasket 29.2x23.9x1.5 mm (M26-27, 3/4" BSP)	-	-	In stock	Enquiry
TI-UE-33	DIN3869 gasket 35.7x29.7x2 mm (M33, 1" BSP)	-	-	In stock	Enquiry
TI-UE-42	DIN3869 gasket 45.8x38.8x2 mm (M42, 1.1/4" BSP)	-	-	In stock	Enquiry
TI-UE-48	DIN3869 gasket 50.7x44.7x2 mm (M48, 1.1/2" BSP)	-	-	In stock	Enquiry
