Does the Electrically Operated Hydraulic Spool Valve, 4/3 Type, NG10 support continuous duty at 24 V DC and what is its maximum operating pressure for ports P/A/B?

Electrically Operated Hydraulic Spool Valve, 4/3 Type, NG10 Format: Yes — it supports continuous duty at 24 V DC. Maximum operating pressure for ports P/A/B is 315 bar.

Can the Electrically Operated Hydraulic Spool Valve, 4/3 Type, NG10 be mounted on a control panel and what are the maximum allowable pressures for ports P/A/B and T?

Can the Electrically Operated Hydraulic Spool Valve, 4/3 Type, NG10 be mounted on a control panel and what are the maximum allowable pressures for ports P/A/B and T? Yes — the Electrically Operated Hydraulic Spool Valve, 4/3 Type, NG10 is designed for panel mounting. Maximum allowable pressures: P, A, B = 315 bar; T = 160 bar.

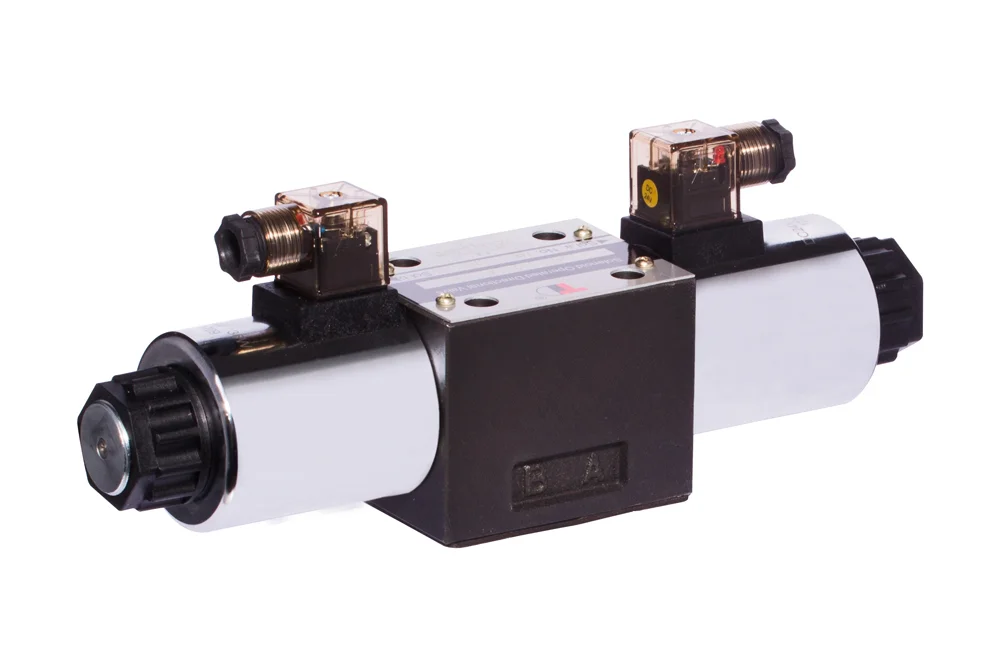

Electrically Operated Hydraulic Spool Valve, 4/3 Type, NG10

All products, Valves and plate adapters/

Additional information

Maximum operating temperature [°C]	80
Minimum operating temperature [°C]	-20

The 4/3 sliding valve with electrical control and centering springs is a reliable solution designed for panel mounting in demanding hydraulic systems of industrial machinery. Its robust cast iron body combined with a hardened steel slider ensures long-lasting durability and resistance to wear, while NBR sealing guarantees secure and efficient operation under high pressure. The valve operates at a maximum pressure of 315 bar for ports P, A, and B, and 160 bar for port T, making it suitable for a wide range of applications. Supplied as standard with O-rings and mounting screws, it allows for quick and convenient installation. Integrated couplings with built-in diodes provide clear indication of power status, enhancing safety and ease of monitoring. With a broad operating temperature range from -20°C to +80°C and availability in multiple control voltages (12 V DC, 24 V DC, 110 V AC, 220 V AC), this valve offers flexibility and adaptability to diverse industrial requirements, ensuring reliable performance in continuous operation.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
TL-NG10-E-24DC	Hydraulic distributor NG10, type 4/3, control 24V DC	-	315
TL-NG10-G-24DC	Hydraulic distributor NG10, type 4/3, control 24V DC	-	315
TL-NG10-H-24DC	Hydraulic distributor NG10, type 4/3, control 24V DC	-	315
TL-NG10-J-24DC	Hydraulic distributor NG10, type 4/3, control 24V DC	-	315

The 4/3 sliding valve with electrical control and centering springs is a reliable solution designed for panel mounting in demanding hydraulic systems of industrial machinery. Its robust cast iron body combined with a hardened steel slider ensures long-lasting durability and resistance to wear, while NBR sealing guarantees secure and efficient operation under high pressure. The valve operates at a maximum pressure of 315 bar for ports P, A, and B, and 160 bar for port T, making it suitable for a wide range of applications. Supplied as standard with O-rings and mounting screws, it allows for quick and convenient installation. Integrated couplings with built-in diodes provide clear indication of power status, enhancing safety and ease of monitoring. With a broad operating temperature range from -20°C to +80°C and availability in multiple control voltages (12 V DC, 24 V DC, 110 V AC, 220 V AC), this valve offers flexibility and adaptability to diverse industrial requirements, ensuring reliable performance in continuous operation.
