Does the Nickel-Plated Brass Y-Tee, 1x Male BSP / 2x Female BSP, Type A24 require thread sealant or washers for proper installation?

Nickel-Plated Brass Y-Tee, 1x Male BSP / 2x Female BSP, Type A24 requires appropriate sealing elements for proper installation. Use Teflon tape or a thread sealant on the tapered (BSPT) male thread to ensure a leak-free tapered seal. For the cylindrical (BSP) female/internal threads, use aluminum or copper washers where mating components have flat surfaces that compress the washer; cylindrical threads themselves typically seal by metal-to-metal fit, so washers are recommended when specified or when the mating part design requires them.

Can the Nickel-Plated Brass Y-Tee, 1x Male BSP / 2x Female BSP, Type A24 be used in systems above 60 bar or is a pressure regulator required?

Nickel-Plated Brass Y-Tee, 1x Male BSP / 2x Female BSP, Type A24 has a specified working pressure of up to 60 bar. Using it in systems above 60 bar would exceed its rated working pressure and is not recommended. To operate safely above 60 bar you would need a fitting rated for the higher pressure; a pressure regulator on the system side could reduce system pressure to ≤60 bar so the A24 can be used within its rating. Do not rely on sealants or washers to compensate for overpressure—always match fittings to the system’s maximum pressure or install proper pressure-reduction equipment.

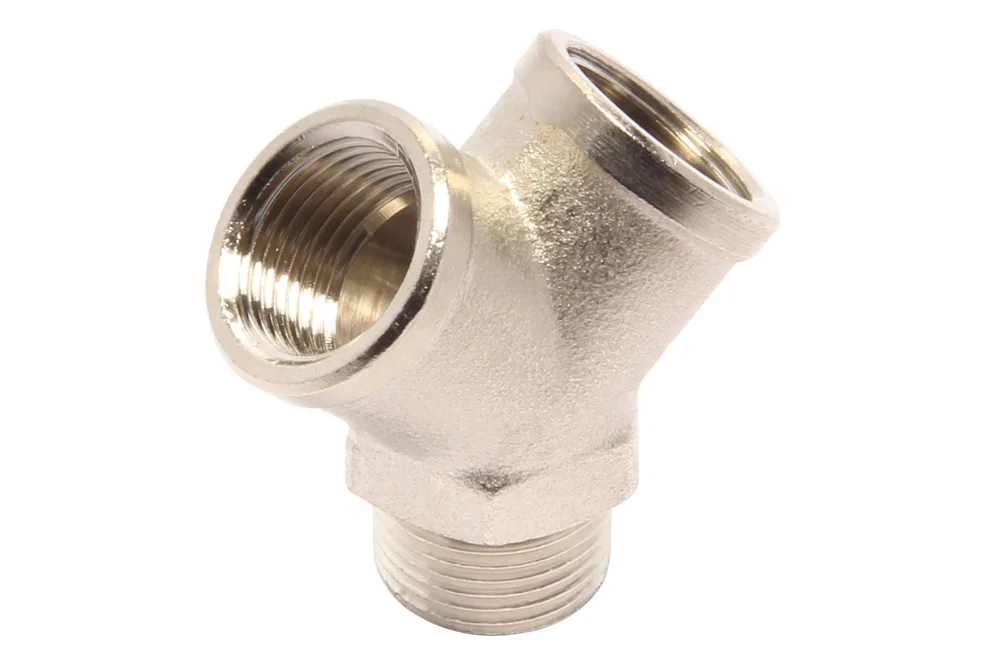

Nickel-Plated Brass Y-Tee, 1x Male BSP / 2x Female BSP, Type A24

All products, Threaded pneumatic fittings/

Additional information

Material	B – brass (bronze)

The Y-branch connector type A24 is a robust and versatile solution designed for reliable integration of pneumatic components, featuring two internal BSP threads and one external BSPT thread for flexible assembly options. Manufactured from high-quality nickel-plated brass, it ensures excellent durability, resistance to corrosion, and long-lasting performance even in demanding industrial environments. With a working pressure of up to 60 bar, this fitting guarantees secure operation in high-pressure pneumatic systems. To achieve optimal sealing, additional elements are recommended: Teflon tape or sealant for tapered threads, and aluminum or copper washers for cylindrical threads. Its precise design allows for quick and efficient connection of hoses and other pneumatic parts, minimizing downtime and ensuring leak-free performance. This makes the A24 Y-branch an ideal choice for professionals seeking a dependable, high-performance fitting that combines strength, reliability, and ease of installation.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
MW-2124001	Y-branch A24, GZ BSP 1/8" / 2 x GW BSP 1/8"	-	60
MW-2124002	Y-branch A24, GZ BSP 1/4" / 2 x GW BSP 1/4"	-	60
MW-2124003	Y-branch A24, GZ BSP 3/8" / 2 x GW BSP 3/8"	-	60
MW-2124004	Y-branch A24, GZ BSP 1/2" / 2 x GW BSP 1/2"	-	60
