Is the Nickel-Plated Brass Elbow with BSP Female Thread, Type A9 suitable for use with both tapered (BSPT) and parallel (BSPP) threads, and what sealing method should I use?

Yes. The Nickel-Plated Brass Elbow with BSP Female Thread, Type A9 is suitable for use with both tapered (BSPT) and parallel (BSPP) male threads. For proper sealing use: for tapered BSPT threads apply Teflon tape or a suitable thread sealant; for parallel BSPP threads use an appropriate aluminum or copper washer (seal), ensuring correct washer size and seating. The A9’s nickel-plated brass construction and precise threading provide reliable installation and tightness up to 60 bar when the correct sealing method is used.

Can the Nickel-Plated Brass Elbow with BSP Female Thread, Type A9 be used with different hose materials and temperatures, and are any special installation precautions required?

Nickel-Plated Brass Elbow with BSP Female Thread, Type A9 can be used with different hose materials and across a range of temperatures typical for pneumatic systems, but compatibility depends on the hose material’s own temperature and chemical resistance. The fitting’s nickel-plated brass construction offers good corrosion and wear resistance and supports working pressures up to 60 bar, so it pairs well with common pneumatic hoses (PVC, PU, rubber, reinforced elastomers) provided those hoses are rated for the system’s pressure and temperature. Special installation precautions: - Sealing: For tapered BSP threads use PTFE (Teflon) tape or a suitable thread sealant; for cylindrical BSP threads use an aluminum or copper washer to ensure a reliable seal. - Torque: Do not over-tighten — tighten to recommended torque for brass fittings to avoid thread damage or deformation of washers. - Temperature limits: Confirm the hose material’s temperature rating; extreme high or low temperatures may degrade hose material even if the elbow itself tolerates them. - Chemical compatibility: Check hose compatibility with any media (oils, solvents, gases) in the system. - Assembly: Ensure clean threads, correct washer type if required, and alignment to avoid side loads on the hose that could stress the connection. In summary, the Nickel-Plated Brass Elbow with BSP Female Thread, Type A9 is compatible with various hose materials when pressure, temperature and chemical compatibility are verified and when correct sealing (tape or washer) and proper tightening practices are followed.

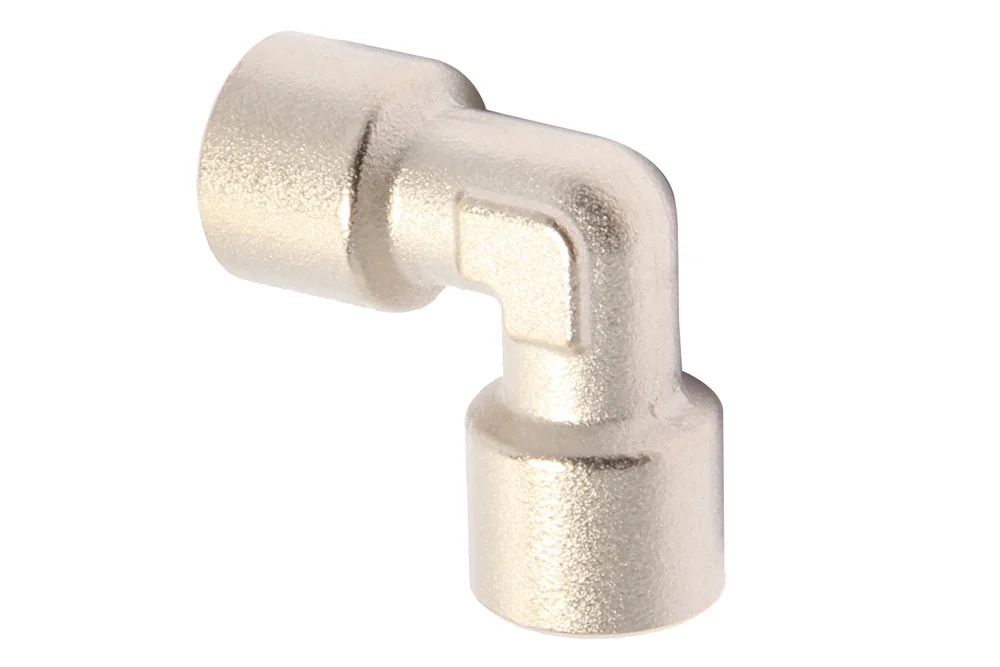

Nickel-Plated Brass Elbow with BSP Female Thread, Type A9

All products, Threaded pneumatic fittings/

Additional information

Material	B – brass (bronze)

The BSP type A9 elbow with internal thread is a durable and reliable connector designed for joining pneumatic components, including hoses, in demanding industrial environments. Manufactured from high-quality nickel-plated brass, it ensures excellent resistance to corrosion and mechanical wear, providing long-lasting performance even under intensive use. With a working pressure of up to 60 bar, this fitting guarantees secure and efficient operation in a wide range of pneumatic systems. To achieve optimal sealing, additional elements are recommended: tapered threads require Teflon tape or sealant, while cylindrical threads should be paired with aluminum or copper washers. Thanks to its robust construction and precise threading, the A9 elbow offers easy installation, dependable tightness, and compatibility with various pneumatic applications, making it an ideal choice for professionals seeking both reliability and efficiency.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
MW-2109001	Elbow A9, GW BSP 1/8" / GW BSP 1/8"	-	60
MW-2109002	Elbow A9, BSP thread 1/4" / BSP thread 1/4"	-	60
MW-2109003	Elbow A9, GW BSP 3/8" / GW BSP 3/8"	-	60
MW-2109004	Elbow A9, BSP thread 1/2" / BSP thread 1/2"	-	60

The BSP type A9 elbow with internal thread is a durable and reliable connector designed for joining pneumatic components, including hoses, in demanding industrial environments. Manufactured from high-quality nickel-plated brass, it ensures excellent resistance to corrosion and mechanical wear, providing long-lasting performance even under intensive use. With a working pressure of up to 60 bar, this fitting guarantees secure and efficient operation in a wide range of pneumatic systems. To achieve optimal sealing, additional elements are recommended: tapered threads require Teflon tape or sealant, while cylindrical threads should be paired with aluminum or copper washers. Thanks to its robust construction and precise threading, the A9 elbow offers easy installation, dependable tightness, and compatibility with various pneumatic applications, making it an ideal choice for professionals seeking both reliability and efficiency.
