Is the DIN 2353 VOSSFormSQR Nut with Seal, Carbon Steel, Zn-Ni Coated compatible with both L (light) and S (heavy) series MVF couplings?

Yes. The DIN 2353 VOSSFormSQR Nut with Seal, Carbon Steel, Zn-Ni Coated Format is compatible with both L (light) and S (heavy) series MVF couplings. It is specifically designed for DIN 2353 MVF type couplings and is available for use in both series, offering reliable sealing and durability for a wide range of hydraulic systems.

Does the DIN 2353 VOSSFormSQR Nut with Seal, Carbon Steel, Zn-Ni Coated maintain seal integrity at elevated temperatures encountered in heavy-duty hydraulic systems?

Yes. The DIN 2353 VOSSFormSQR Nut with Seal, Carbon Steel, Zn‑Ni Coated maintains seal integrity at the elevated temperatures typical of heavy‑duty hydraulic systems. The nut uses a Viton seal, which is specifically selected for excellent high‑temperature resistance, durability under long‑term operational stress, and compatibility with aggressive hydraulic media. Combined with a robust carbon‑steel body and a 6–10 µm zinc‑nickel coating that protects the metal against wear and corrosion, the assembly delivers reliable, leak‑free performance in demanding environments. This materials and design combination supports extended service life and reduced maintenance in heavy‑duty hydraulic applications.

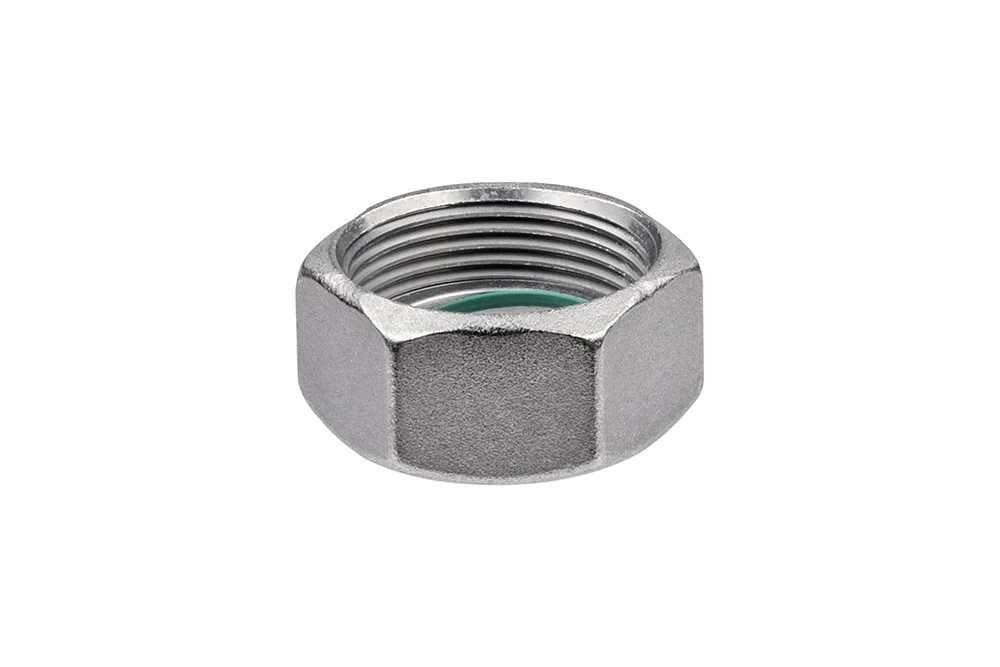

A nut DIN 2353 VOSSForm^SQR with gasket, steel carbon, zinc-nickel

A nut DIN 2353 VOSSForm<sup>SQR</sup> with gasket, steel carbon, zinc-nickel

Additional information

Standard length [m]	2, 45

A nut VOSSForm SQR with gasket with thread metric for connector DIN 2353, type MVF. occurs as: L (series light), S (series heavy). surface coated zinc-nickel o wall thickness layer 6-10 µm, which is characterized very high resistance on corrosion (for 720 hours without corrosion in chamber salt). Material: steel carbon, zinc-nickel (sealing made of Viton).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HD-MVF-06L-CN	Nut DIN 2353 with seal VOSSForm 6L M12x1.5, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-06S-CN	Nut DIN 2353 with seal VOSSForm 6S M14x1.5, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-08L-CN	Nut DIN 2353 with seal VOSSForm 8L M14x1.5, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-08S-CN	Nut DIN 2353 with seal VOSSForm 8S M16x1.5, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-10L-CN	Nut DIN 2353 with seal VOSSForm 10L M16x1.5, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-10S-CN	Nut DIN 2353 with seal VOSSForm 10S M18x1.5, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-12L-CN	Nut DIN 2353 with seal VOSSForm 12L M18x1.5, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-12S-CN	Nut DIN 2353 with seal VOSSForm 12S M20x1.5, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-14S-CN	Nut DIN 2353 with seal VOSSForm 14S M22x1.5, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-15L-CN	Nut DIN 2353 with seal VOSSForm 15L M22x1.5, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-16S-CN	Nut DIN 2353 with seal VOSSForm 16S M24x1.5, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-18L-CN	Nut DIN 2353 with seal VOSSForm 18L M26x1.5, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-20S-CN	Nut DIN 2353 with seal VOSSForm 20S M30x2, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-22L-CN	Nut DIN 2353 with seal VOSSForm 22L M30x2, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-25S-CN	Nut DIN 2353 with seal VOSSForm 25S M36x2, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-28L-CN	Nut DIN 2353 with seal VOSSForm 28L M36x2, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-30S-CN	Nut DIN 2353 with seal VOSSForm 30S M42x2, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-35L-CN	Nut DIN 2353 with seal VOSSForm 35L M45x2, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-38S-CN	Nut DIN 2353 with seal VOSSForm 38S M52x2, Zn-Ni	-	-	In stock	Enquiry
HD-MVF-42L-CN	Nut DIN 2353 with seal VOSSForm 42L M52x2, Zn-Ni	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

A nut VOSSForm SQR with gasket with thread metric for connector DIN 2353, type MVF. occurs as: L (series light), S (series heavy). surface coated zinc-nickel o wall thickness layer 6-10 µm, which is characterized very high resistance on corrosion (for 720 hours without corrosion in chamber salt). Material: steel carbon, zinc-nickel (sealing made of Viton).
