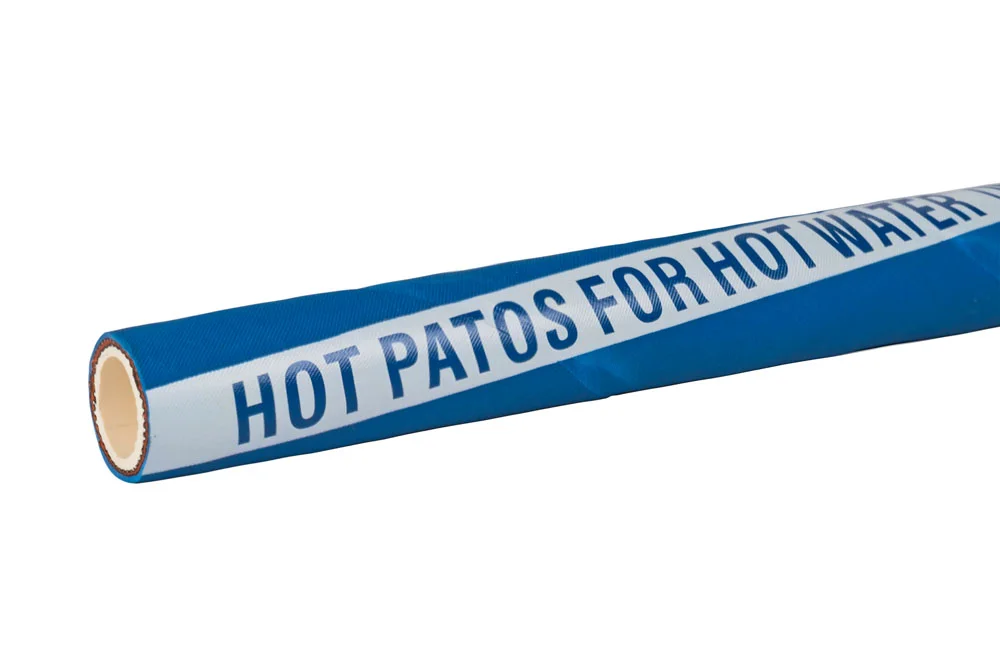

PATOS® hose for safe and efficient hot water and steam transfer

Additional information

Material

IIR – butyl rubber

Maximum operating temperature [°C]

165

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

60 / 120

Reinforcement

synthetic braid

This premium-quality hose is designed for efficient cleaning and washing of installations and machinery in the food industry, ensuring reliability and compliance with the highest safety standards. Its inner layer, made of white butyl rubber, fully meets FDA 21 CFR 177.2600 and BfR XXI category 2 requirements, guaranteeing safe contact with food-related environments. Reinforced with a durable synthetic cord and protected by a robust blue NBR/PVC outer layer, the hose offers exceptional resistance to vegetable and animal fats, making it ideal for dairies, meat processing plants, and other demanding facilities. Engineered for use with hot water or steam, it delivers outstanding performance under working pressures of up to 6 bar for steam and 10 bar for water, with a safety factor of 10:1 (3:1 for water). The hose withstands extreme operating temperatures ranging from -30°C to +165°C for steam and up to +95°C for water, ensuring versatility in challenging conditions. To maximize durability, it is recommended to use dedicated screw-on fittings for steam applications and to release steam after use to prevent condensation damage. Available in standard roll lengths of 60 m, with the option of 120 m upon request, this hose combines safety, strength, and long-lasting performance, making it a trusted solution for professional food industry operations.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-PATOS-013Hose PATOS 13x23 mm126In stock
Enquiry
IV-PATOS-016Hose PATOS 16x26 mm166In stock
Enquiry
IV-PATOS-019Hose PATOS 19x31 mm206In stock
Enquiry
IV-PATOS-025Hose PATOS 25x35 mm256In stock
Enquiry
IV-PATOS-032Hose PATOS 32x48 mm326In stock
Enquiry
IV-PATOS-038Hose PATOS 38x54 mm386In stock
Enquiry
IV-PATOS-051Hose PATOS 51x69.5 mm506In stock
Enquiry
IV-PATOS-065Hose PATOS 65x79 mm656In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This premium-quality hose is designed for efficient cleaning and washing of installations and machinery in the food industry, ensuring reliability and compliance with the highest safety standards. Its inner layer, made of white butyl rubber, fully meets FDA 21 CFR 177.2600 and BfR XXI category 2 requirements, guaranteeing safe contact with food-related environments. Reinforced with a durable synthetic cord and protected by a robust blue NBR/PVC outer layer, the hose offers exceptional resistance to vegetable and animal fats, making it ideal for dairies, meat processing plants, and other demanding facilities. Engineered for use with hot water or steam, it delivers outstanding performance under working pressures of up to 6 bar for steam and 10 bar for water, with a safety factor of 10:1 (3:1 for water). The hose withstands extreme operating temperatures ranging from -30°C to +165°C for steam and up to +95°C for water, ensuring versatility in challenging conditions. To maximize durability, it is recommended to use dedicated screw-on fittings for steam applications and to release steam after use to prevent condensation damage. Available in standard roll lengths of 60 m, with the option of 120 m upon request, this hose combines safety, strength, and long-lasting performance, making it a trusted solution for professional food industry operations.

Additional information

Material

IIR – butyl rubber

Maximum operating temperature [°C]

165

Minimum operating temperature [°C]

-30

Vacuum resistance

no

Standard length [m]

60 / 120

Reinforcement

synthetic braid
