TPE Hose with Steel Spiral for Food, Pharma and Cosmetic Applications – PHARMASTEEL

Additional information

Material

TPE – thermoplastic elastomer

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-30

Vacuum resistance

yes

Standard length [m]

30, 50, 60

Reinforcement

steel spiral

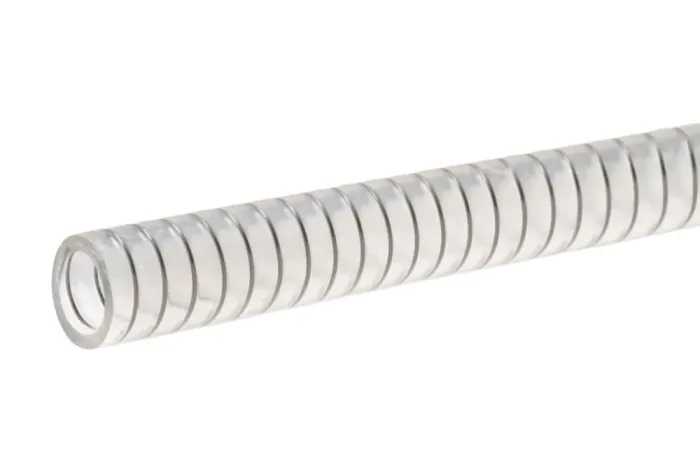

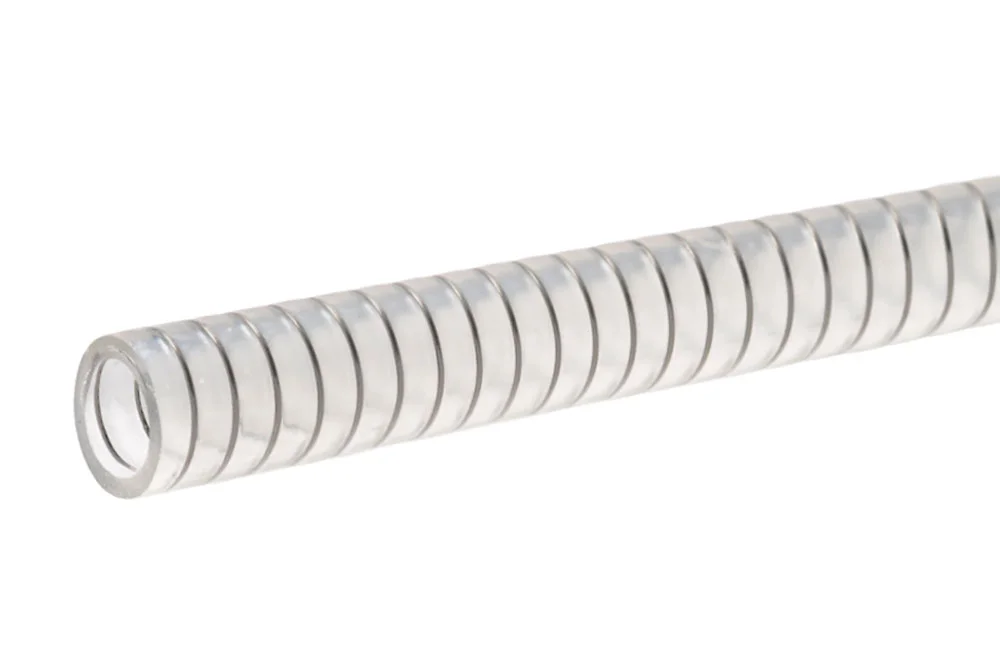

This highly flexible suction and discharge hose is designed for the safe and efficient transfer of food, pharmaceutical, and cosmetic products such as water, fruit juices, beer, wine, vinegar, high-proof alcohols (up to 96%), milk and dairy derivatives, creams, soaps, aromatic substances, and pigments. Manufactured from transparent TPE-S with an embedded stainless steel AISI 302 spiral, it ensures excellent resistance to vacuum and collapse while allowing easy visual monitoring of the flow. Its smooth, non-vulcanized inner and outer surfaces guarantee optimal hygiene, effortless cleaning, and no impact on the taste, smell, or quality of the transported medium. The hose is resistant to fats, oils, light chemicals, hydrolysis, UV radiation, and weathering, while its low porosity prevents bacterial growth and ensures long-lasting performance. Certified for direct food contact in compliance with EU regulations (1935/2004/EC, 10/2011/EU, 2023/2006/EC), FDA 21 CFR 177.2600, and USP Class VI, it meets the strictest industry standards. With a working pressure range of 1–1.5 bar (depending on diameter) and an operating temperature from -30°C to +100°C, it offers reliability across diverse applications. Ideal for producers seeking a hygienic, durable, and versatile solution, this hose combines safety, transparency, and flexibility to support demanding processes in modern food and pharmaceutical environments.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IP-PHARMASTEEL-13PHARMASTEEL hose 13x19 mm121.5In stock
Enquiry
IP-PHARMASTEEL-16PHARMASTEEL hose 16x22.4 mm161.3In stock
Enquiry
IP-PHARMASTEEL-19PHARMASTEEL hose 19x26 mm201.3In stock
Enquiry
IP-PHARMASTEEL-25PHARMASTEEL hose 25x33 mm251In stock
Enquiry
IP-PHARMASTEEL-32PHARMASTEEL hose 32x40.4 mm321In stock
Enquiry
IP-PHARMASTEEL-38PHARMASTEEL hose 38x47 mm381In stock
Enquiry
IP-PHARMASTEEL-51PHARMASTEEL hose 51x61 mm501In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This highly flexible suction and discharge hose is designed for the safe and efficient transfer of food, pharmaceutical, and cosmetic products such as water, fruit juices, beer, wine, vinegar, high-proof alcohols (up to 96%), milk and dairy derivatives, creams, soaps, aromatic substances, and pigments. Manufactured from transparent TPE-S with an embedded stainless steel AISI 302 spiral, it ensures excellent resistance to vacuum and collapse while allowing easy visual monitoring of the flow. Its smooth, non-vulcanized inner and outer surfaces guarantee optimal hygiene, effortless cleaning, and no impact on the taste, smell, or quality of the transported medium. The hose is resistant to fats, oils, light chemicals, hydrolysis, UV radiation, and weathering, while its low porosity prevents bacterial growth and ensures long-lasting performance. Certified for direct food contact in compliance with EU regulations (1935/2004/EC, 10/2011/EU, 2023/2006/EC), FDA 21 CFR 177.2600, and USP Class VI, it meets the strictest industry standards. With a working pressure range of 1–1.5 bar (depending on diameter) and an operating temperature from -30°C to +100°C, it offers reliability across diverse applications. Ideal for producers seeking a hygienic, durable, and versatile solution, this hose combines safety, transparency, and flexibility to support demanding processes in modern food and pharmaceutical environments.

Additional information

Material

TPE – thermoplastic elastomer

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-30

Vacuum resistance

yes

Standard length [m]

30, 50, 60

Reinforcement

steel spiral
