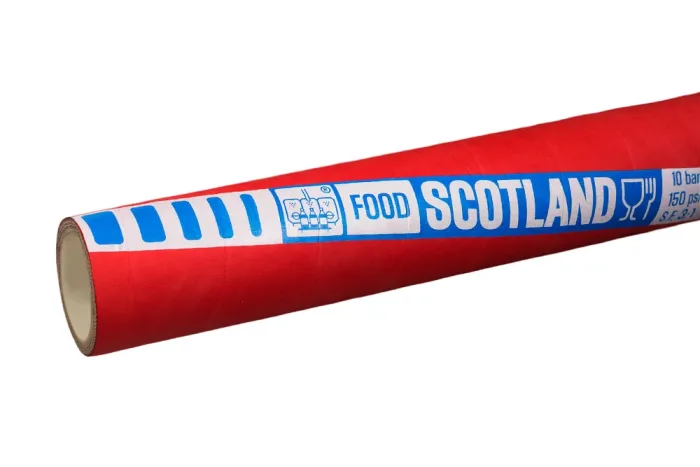

Hose delivery for strong alcohols SCOTLAND BE®
The highest quality hose delivery intended for conveying wine, beer, juices fruit etc. and substances food free of fats, demanding use rubber free of odour and taste. Contains no phthalates or bisphenol A. Designed for high-class wines and alcohols, for use in breweries and distilleries. Widely used in industry spirits for conveying strong alcohols o a concentration up to 96%. It has copper wires ensuring electrical continuity between the hose ends, co increases safety conveying high-proof, flammable alcohol (at mounting should ensure contact cable with fitting). Layer outer resistant to abrasion, aging and conditions atmospheric. standards and requirements : industry food, contact with food 1935/2004/EC, 2023/2006/EC (GMP). Layer inner compliant with FDA 21 CFR 177.2600, BfR XXI kat.2, D.M. 21/03/73. Inner layer: white rubber butyl (IIR). Reinforcement: cord synthetic. Outer layer: red rubber butyl (IIR). Working pressure: 10 bar. Operating temperature: od -40°C up to +120°C.
List of product variants
Do you need a larger quantity of products or a bespoke quote?
The highest quality hose delivery intended for conveying wine, beer, juices fruit etc. and substances food free of fats, demanding use rubber free of odour and taste. Contains no phthalates or bisphenol A. Designed for high-class wines and alcohols, for use in breweries and distilleries. Widely used in industry spirits for conveying strong alcohols o a concentration up to 96%. It has copper wires ensuring electrical continuity between the hose ends, co increases safety conveying high-proof, flammable alcohol (at mounting should ensure contact cable with fitting). Layer outer resistant to abrasion, aging and conditions atmospheric. standards and requirements : industry food, contact with food 1935/2004/EC, 2023/2006/EC (GMP). Layer inner compliant with FDA 21 CFR 177.2600, BfR XXI kat.2, D.M. 21/03/73. Inner layer: white rubber butyl (IIR). Reinforcement: cord synthetic. Outer layer: red rubber butyl (IIR). Working pressure: 10 bar. Operating temperature: od -40°C up to +120°C.
Additional information
| Material | IIR – butyl rubber |
|---|---|
| Maximum operating temperature [°C] | 120 |
| Minimum operating temperature [°C] | -40 |
| Vacuum resistance | no |
| Standard length [m] | 4, 60 |
| Reinforcement | synthetic braid |
