Is the DIN 3015 Standard Insert, Polyamide, Type 101 suitable for outdoor use across its full -40°C to +180°C operating range?

Yes. The DIN 3015 Standard Insert, Polyamide, Type 101 is suitable for outdoor use across its full -40°C to +180°C operating range. It is made from high-grade, self-extinguishing polyamide, offering resistance to demanding environmental conditions, excellent grip, vibration minimization, and durable fastening. These properties, combined with the stated temperature range, make it appropriate for extreme cold and high-heat outdoor applications.

Does the DIN 3015 Standard Insert, Polyamide, Type 101 maintain its self-extinguishing and grip properties after prolonged UV exposure?

DIN 3015 Standard Insert, Polyamide, Type 101 is manufactured from high-grade, self-extinguishing polyamide and features a profiled, grooved pipe hole for secure grip and vibration damping. Its material and design provide inherent flame-retardant properties and reliable clamping performance across a broad operating temperature range (-40°C to +180°C). However, prolonged UV exposure can degrade many polyamides over time, potentially reducing mechanical strength, surface hardness and grip effectiveness while also affecting some flame-retardant additives. Unless the specific polyamide formulation is UV-stabilized (not stated in the provided description), long-term outdoor UV exposure may impair both grip and self‑extinguishing behaviour. Recommendation: For confirmed long-term UV resistance, choose a UV-stabilized/polyamide UV-protected variant or request manufacturer data (UV ageing tests, flame-retardancy retention, tensile and grip performance after UV exposure).

DIN 3015 Standard Insert, Polyamide, Type 101

All products, Clamps for hydraulic pipes/

Additional information

Material	P – material (plastic)

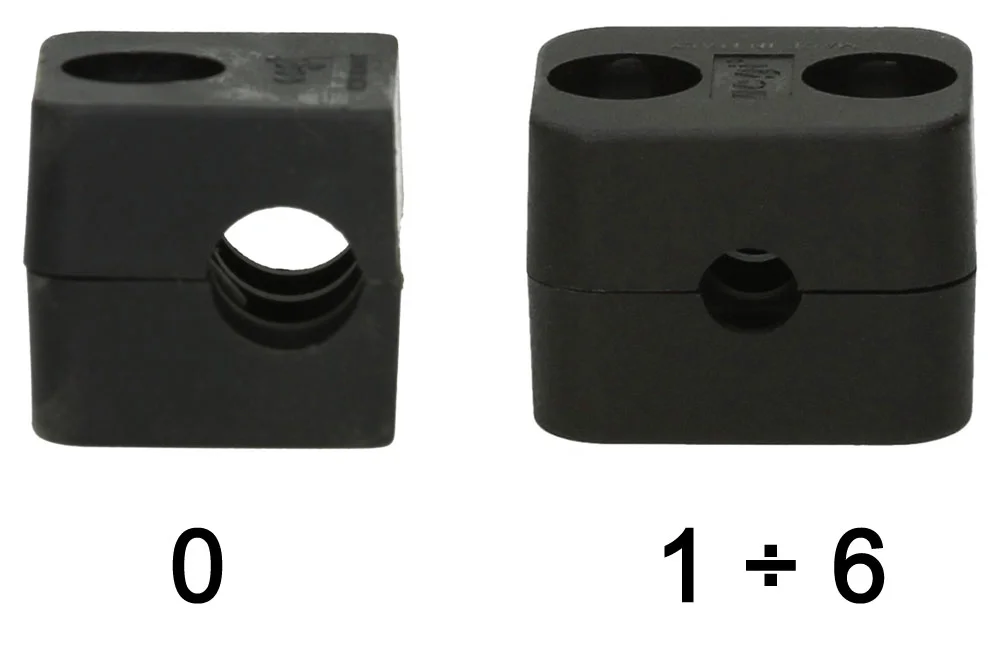

The two-part insert clamp DIN 3015 type 101 is a reliable and durable solution designed in full compliance with the DIN 3015 standard, ensuring consistent quality and performance. Tailored for versatile applications, it is available for size group 0 with a single screw hole, while size groups 1 to 6 feature two screw holes for enhanced stability and secure fastening. The clamp is equipped with a profiled, grooved surface in the pipe hole, providing excellent grip and minimizing vibration for optimal operational safety. Manufactured from high-grade, self-extinguishing polyamide, it guarantees resistance to demanding conditions while meeting strict safety requirements. With an impressive operating temperature range from -40°C to +180°C, this insert clamp is perfectly suited for both extreme cold and high-heat environments, making it an ideal choice for industries that demand reliability, precision, and long-lasting performance.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
TC-PA101-006X	DIN3015 standard PA insert for 6 mm pipe	-	-
TC-PA101-008X	DIN3015 standard PA insert for 8 mm pipe	-	-
TC-PA101-010X	DIN3015 standard PA insert for 10 mm pipe	-	-
TC-PA101-012X	DIN3015 standard PA insert for 12 mm pipe	-	-
TC-PA101-106,4X	DIN3015 standard PA insert for 6.4 mm pipe	-	-
TC-PA101-106X	DIN3015 standard PA insert for 6 mm pipe	-	-
TC-PA101-108X	DIN3015 standard PA insert for 8 mm pipe	-	-
TC-PA101-109,5X	DIN3015 standard PA insert for 9.5 mm pipe	-	-
TC-PA101-110X	DIN3015 standard PA insert for 10 mm pipe	-	-
TC-PA101-112X	DIN3015 standard PA insert for 12 mm pipe	-	-
TC-PA101-212,7X	DIN3015 standard PA insert for 12.7 mm pipe	-	-
TC-PA101-213,5X	DIN3015 standard PA insert for 13.5 mm pipe	-	-
TC-PA101-214X	DIN3015 standard PA insert for 14 mm pipe	-	-
TC-PA101-215X	DIN3015 standard PA insert for 15 mm pipe	-	-
TC-PA101-216X	DIN3015 standard PA insert for 16 mm pipe	-	-
TC-PA101-217,2X	DIN3015 standard PA insert for 17.2 mm pipe	-	-
TC-PA101-218X	DIN3015 standard PA insert for 18 mm pipe	-	-
TC-PA101-219X	DIN3015 standard PA insert for 19 mm pipe	-	-
TC-PA101-319X	DIN3015 standard PA insert for 19 mm pipe	-	-
TC-PA101-320X	DIN3015 standard PA insert for 20 mm pipe	-	-
TC-PA101-321,3X	DIN3015 standard PA insert for 21.3 mm pipe	-	-
TC-PA101-322X	DIN3015 standard PA insert for 22 mm pipe	-	-
TC-PA101-325,4X	DIN3015 standard PA insert for 25.4 mm pipe	-	-
TC-PA101-325X	DIN3015 standard PA insert for 25 mm pipe	-	-
TC-PA101-426,9X	DIN3015 standard PA insert for 26.9 mm pipe	-	-
TC-PA101-428X	DIN3015 standard PA insert for 28 mm pipe	-	-
TC-PA101-430X	DIN3015 standard PA insert for 30 mm pipe	-	-
TC-PA101-432X	DIN3015 standard PA insert for 32 mm pipe	-	-
TC-PA101-532X	DIN3015 standard PA insert for 32 mm pipe	-	-
TC-PA101-533,7X	DIN3015 standard PA insert for 33.7 mm pipe	-	-
TC-PA101-535X	DIN3015 standard PA insert for 35 mm pipe	-	-
TC-PA101-538X	DIN3015 standard PA insert for 38 mm pipe	-	-
TC-PA101-540X	DIN3015 standard PA insert for 40 mm pipe	-	-
TC-PA101-542,4X	DIN3015 standard PA insert for 42.4 mm pipe	-	-
TC-PA101-542X	DIN3015 standard PA insert for 42 mm pipe	-	-
TC-PA101-545X	DIN3015 standard PA insert for 45 mm pipe	-	-
TC-PA101-644,5X	DIN3015 standard PA insert for 44.5 mm pipe	-	-
TC-PA101-648,3X	DIN3015 standard PA insert for 48.3 mm pipe	-	-
TC-PA101-650,8X	DIN3015 standard PA insert for 50.8 mm pipe	-	-

The two-part insert clamp DIN 3015 type 101 is a reliable and durable solution designed in full compliance with the DIN 3015 standard, ensuring consistent quality and performance. Tailored for versatile applications, it is available for size group 0 with a single screw hole, while size groups 1 to 6 feature two screw holes for enhanced stability and secure fastening. The clamp is equipped with a profiled, grooved surface in the pipe hole, providing excellent grip and minimizing vibration for optimal operational safety. Manufactured from high-grade, self-extinguishing polyamide, it guarantees resistance to demanding conditions while meeting strict safety requirements. With an impressive operating temperature range from -40°C to +180°C, this insert clamp is perfectly suited for both extreme cold and high-heat environments, making it an ideal choice for industries that demand reliability, precision, and long-lasting performance.
