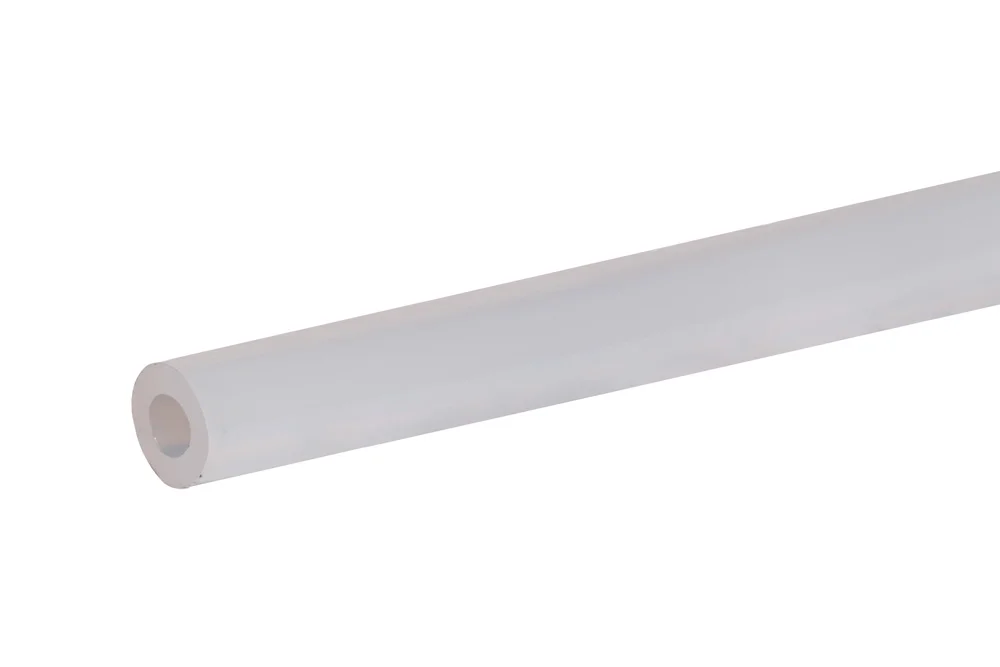

DIN 73378 Polyamide Pneumatic Hose PA12 X-XIPHL

Additional information

Material

PA – polyamide

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-55

Vacuum resistance

no

Standard length [m]

10, 100, 15, 50, 6

The flexible and lightweight polyamide PA 12 hose is a reliable solution for pneumatic, oil, fuel, and hydraulic systems, offering excellent resistance to chemicals, lubricants, and demanding working conditions. Its precisely calibrated outer diameter enables the use of plug couplings, ensuring quick, simple, and secure installation that saves both time and effort. Manufactured in compliance with the DIN 73378 standard, this hose guarantees consistent quality and performance across a wide range of applications. With a working pressure range from 16 bar up to 49 bar, depending on diameter and wall thickness, it delivers durability and safety even in high-pressure environments. Designed to operate in extreme temperatures from -55°C to +100°C (up to +70°C for water-based media), it provides outstanding versatility for industrial and automotive use. Available in a wide selection of colors including yellow, orange, red, blue, green, natural, and black, it allows for easy identification and system organization, making it the perfect choice for professionals seeking efficiency, reliability, and long-lasting performance.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
ZC-PA12H-04X02PA12 X-HIPHL nylon hose 4x2 mm249In stock
Enquiry
ZC-PA12H-04X02BKNylon hose PA12 X-HIPHL 4x2 mm, black249In stock
Enquiry
ZC-PA12H-04X02BLNylon hose PA12 X-HIPHL 4x2 mm, blue249In stock
Enquiry
ZC-PA12H-05X03PA12 X-HIPHL nylon hose 5x3 mm337In stock
Enquiry
ZC-PA12H-05X03BKNylon hose PA12 X-HIPHL 5x3 mm, black337In stock
Enquiry
ZC-PA12H-05X03BLPA12 X-HIPHL nylon hose 5x3 mm, blue337In stock
Enquiry
ZC-PA12H-06X04PA12 X-HIPHL nylon hose 6x4 mm429In stock
Enquiry
ZC-PA12H-06X04BKNylon hose PA12 X-HIPHL 6x4 mm, black429In stock
Enquiry
ZC-PA12H-06X04BLNylon hose PA12 X-HIPHL 6x4 mm, blue429In stock
Enquiry
ZC-PA12H-08X05PA12 X-HIPHL nylon hose 8x5 mm534In stock
Enquiry
ZC-PA12H-08X05BKNylon hose PA12 X-HIPHL 8x5 mm, black534In stock
Enquiry
ZC-PA12H-08X05BLNylon hose PA12 X-HIPHL 8x5 mm, blue534In stock
Enquiry
ZC-PA12H-08X06PA12 X-HIPHL nylon hose 8x6 mm621In stock
Enquiry
ZC-PA12H-08X06BKNylon hose PA12 X-HIPHL 8x6 mm, black621In stock
Enquiry
ZC-PA12H-08X06BLNylon hose PA12 X-HIPHL 8x6 mm, blue621In stock
Enquiry
ZC-PA12H-08X06RNylon hose PA12 X-HIPHL 8x6 mm, red621In stock
Enquiry
ZC-PA12H-08X5,5Nylon hose PA12 X-HIPHL 8x5.5 mm627In stock
Enquiry
ZC-PA12H-08X5,5BKNylon hose PA12 X-HIPHL 8x5.5 mm, black627In stock
Enquiry
ZC-PA12H-08X5,5BLNylon hose PA12 X-HIPHL 8x5.5 mm, blue627In stock
Enquiry
ZC-PA12H-10X06Nylon hose PA12 X-HIPHL 10x6 mm637In stock
Enquiry
ZC-PA12H-10X06BKNylon hose PA12 X-HIPHL 10x6 mm, black637In stock
Enquiry
ZC-PA12H-10X06BLNylon hose PA12 X-HIPHL 10x6 mm, blue637In stock
Enquiry
ZC-PA12H-10X08PA12 X-HIPHL nylon hose 10x8 mm816In stock
Enquiry
ZC-PA12H-10X08BKPA12 X-HIPHL nylon hose 10x8 mm, black816In stock
Enquiry
ZC-PA12H-10X08BLNylon hose PA12 X-HIPHL 10x8 mm, blue816In stock
Enquiry
ZC-PA12H-10X7,5Nylon hose PA12 X-HIPHL 10x7.5 mm821In stock
Enquiry
ZC-PA12H-12X08PA12 X-HIPHL nylon hose 12x8 mm829In stock
Enquiry
ZC-PA12H-12X09Nylon hose PA12 X-HIPHL 12x9 mm821In stock
Enquiry
ZC-PA12H-12X09BLNylon hose PA12 X-HIPHL 12x9 mm, blue821In stock
Enquiry
ZC-PA12H-14X10Nylon hose PA12 X-HIPHL 14x10 mm1024In stock
Enquiry
ZC-PA12H-15X12PA12 X-HIPHL nylon hose 15x12 mm1216In stock
Enquiry
ZC-PA12H-16X12PA12 X-HIPHL nylon hose 16x12 mm1221In stock
Enquiry
ZC-PA12H-18X14Nylon hose PA12 X-HIPHL 18x14 mm1418In stock
Enquiry
ZC-PA12H-20X16Nylon hose PA12 X-HIPHL 20x16 mm1616In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

The flexible and lightweight polyamide PA 12 hose is a reliable solution for pneumatic, oil, fuel, and hydraulic systems, offering excellent resistance to chemicals, lubricants, and demanding working conditions. Its precisely calibrated outer diameter enables the use of plug couplings, ensuring quick, simple, and secure installation that saves both time and effort. Manufactured in compliance with the DIN 73378 standard, this hose guarantees consistent quality and performance across a wide range of applications. With a working pressure range from 16 bar up to 49 bar, depending on diameter and wall thickness, it delivers durability and safety even in high-pressure environments. Designed to operate in extreme temperatures from -55°C to +100°C (up to +70°C for water-based media), it provides outstanding versatility for industrial and automotive use. Available in a wide selection of colors including yellow, orange, red, blue, green, natural, and black, it allows for easy identification and system organization, making it the perfect choice for professionals seeking efficiency, reliability, and long-lasting performance.

Additional information

Material

PA – polyamide

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-55

Vacuum resistance

no

Standard length [m]

10, 100, 15, 50, 6
