Hose pneumatic spiral polyamide SCAR

Additional information

Material

B – brass (bronze)

Maximum operating temperature [°C]

80

Minimum operating temperature [°C]

-40

Vacuum resistance

no

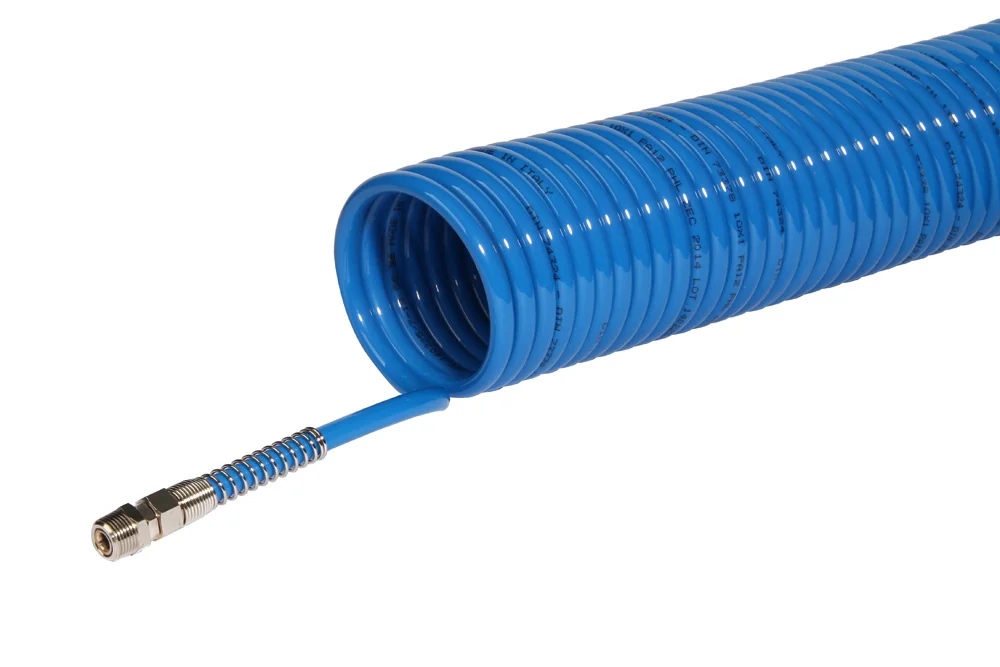

Line – hose spiral polyamide intended for all kinds equipment pneumatic, systems control, etc. terminated on both sides section simple o length 100 mm and fitting with thread external BSPT. The stated total length is the maximum hose length after stretching. Hose material: blue polyamide PA 12 (nylon). Working pressure: up to 28 bar (depending on the diameter hose). Operating temperature: od -40°C up to +80°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
ZC-SCAR-06-025Hose spiralny PA12 SCAR 6x4 mm x 2.5 m with 1/4" male428In stock0 €
Enquiry
ZC-SCAR-06-050Hose spiralny PA12 SCAR 6x4 mm, L=5 m with 1/4" male428In stock0 €
Enquiry
ZC-SCAR-06-075Hose spiralny PA12 SCAR 6x4 mm, L=7.5 m with 1/4" male428In stock0 €
Enquiry
ZC-SCAR-06-100Hose spiralny PA12 SCAR 6x4 mm, L=10 m with 1/4" male428In stock0 €
Enquiry
ZC-SCAR-08-025Hose spiralny PA12 SCAR 8x6 mm, L=2.5 m with 1/4" male620In stock0 €
Enquiry
ZC-SCAR-08-050Hose spiralny PA12 SCAR 8x6 mm, L=5 m with 1/4" male620In stock0 €
Enquiry
ZC-SCAR-08-075Hose spiralny PA12 SCAR 8x6 mm, L=7.5 m with 1/4" male620In stock0 €
Enquiry
ZC-SCAR-08-100Hose spiralny PA12 SCAR 8x6 mm, L=10 m with 1/4" male620In stock0 €
Enquiry
ZC-SCAR-10-025Hose spiralny PA12 SCAR 10x8 mm, L=2.5 m with 3/8" male816In stock0 €
Enquiry
ZC-SCAR-10-050Hose spiralny PA12 SCAR 10x8 mm, L=5 m with 3/8" male816In stock0 €
Enquiry
ZC-SCAR-10-075Hose spiralny PA12 SCAR 10x8 mm, L=7.5 m with 3/8" male816In stock0 €
Enquiry
ZC-SCAR-10-100Hose spiralny PA12 SCAR 10x8 mm, L=10 m with 3/8" male816In stock0 €
Enquiry
ZC-SCAR-12-025Hose spiralny PA12 SCAR 12x10 mm, L=2.5 m with 3/8" male1012In stock0 €
Enquiry
ZC-SCAR-12-050Hose spiralny PA12 SCAR 12x10 mm, L=5 m with 3/8" male1012In stock0 €
Enquiry
ZC-SCAR-12-075Hose spiralny PA12 SCAR 12x10 mm, L=7.5 m with 3/8" male1012In stock0 €
Enquiry
ZC-SCAR-12-100Hose spiralny PA12 SCAR 12x10mm, L=10 m with 3/8" male1012In stock0 €
Enquiry
ZC-SCAR-15-025Hose spiralny PA12 SCAR 15x12 mm, L=2.5 m with 1/2" male1216In stock0 €
Enquiry
ZC-SCAR-15-050Hose spiralny PA12 SCAR 15x12 mm, L=5 m with 1/2" male1216In stock0 €
Enquiry
ZC-SCAR-15-075Hose spiralny PA12 SCAR 15x12 mm, L=7.5 m with 1/2" male1216In stock0 €
Enquiry
ZC-SCAR-15-100Hose spiralny PA12 SCAR 15x12mm, L=10 m with 1/2" male1216In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Line – hose spiral polyamide intended for all kinds equipment pneumatic, systems control, etc. terminated on both sides section simple o length 100 mm and fitting with thread external BSPT. The stated total length is the maximum hose length after stretching. Hose material: blue polyamide PA 12 (nylon). Working pressure: up to 28 bar (depending on the diameter hose). Operating temperature: od -40°C up to +80°C.

Additional information

Material

B – brass (bronze)

Maximum operating temperature [°C]

80

Minimum operating temperature [°C]

-40

Vacuum resistance

no

Do you need a larger quantity of products or a bespoke quote?
