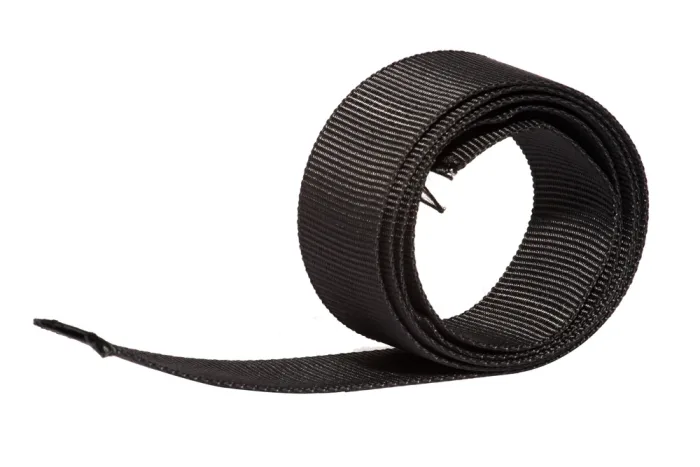

GT35 Polyester Fabric Protective Cover
The GT35 protective cover is manufactured from exceptionally dense polyester fabric, ensuring reliable durability in demanding industrial environments. Specially developed to shield individual hoses or entire bundles of hydraulic and pneumatic lines, it provides outstanding resistance to mechanical wear, oils, and organic substances. By forming a strong barrier, it not only extends the service life of hoses but also enhances workplace safety by protecting operators from potential oil spray in the event of a hose failure. With a continuous operating temperature of up to +100°C, this cover delivers consistent performance under high thermal stress, making it an ideal solution for industries where reliability and protection are critical. Its robust construction, combined with ease of application, makes the GT35 cover a practical and cost-effective investment for maintaining efficiency and safety in hydraulic and pneumatic systems.
List of product variants
| Article number | Product variant name | Nominal inner diameter | Working pressure [bar] | Enquiry |
|---|---|---|---|---|
| ZC-GT-035 | Textile cover diameter 20 mm, width 35 mm | - | - | |
| ZC-GT-040 | Textile cover diameter 22 mm, width 40 mm | - | - | |
| ZC-GT-045 | Textile cover diameter 25 mm, width 45 mm | - | - | |
| ZC-GT-050 | Textile cover diameter 28 mm, width 50 mm | - | - | |
| ZC-GT-055 | Textile cover diameter 32 mm, width 55 mm | - | - | |
| ZC-GT-060 | Textile cover diameter 35 mm, width 60 mm | - | - | |
| ZC-GT-065 | Textile cover diameter 38 mm, width 65 mm | - | - | |
| ZC-GT-080 | Textile cover diameter 45 mm, width 80 mm | - | - | |
| ZC-GT-090 | Textile cover diameter 50 mm, width 90 mm | - | - | |
| ZC-GT-120 | Textile cover diameter 70 mm, width 120 mm | - | - | |
| ZC-GT-150 | Textile cover diameter 90 mm, width 150 mm | - | - |
The GT35 protective cover is manufactured from exceptionally dense polyester fabric, ensuring reliable durability in demanding industrial environments. Specially developed to shield individual hoses or entire bundles of hydraulic and pneumatic lines, it provides outstanding resistance to mechanical wear, oils, and organic substances. By forming a strong barrier, it not only extends the service life of hoses but also enhances workplace safety by protecting operators from potential oil spray in the event of a hose failure. With a continuous operating temperature of up to +100°C, this cover delivers consistent performance under high thermal stress, making it an ideal solution for industries where reliability and protection are critical. Its robust construction, combined with ease of application, makes the GT35 cover a practical and cost-effective investment for maintaining efficiency and safety in hydraulic and pneumatic systems.
Additional information
| Maximum operating temperature [°C] | 100 |
|---|---|
| Minimum operating temperature [°C] | -40 |
| Standard length [m] | 100, 50 |
