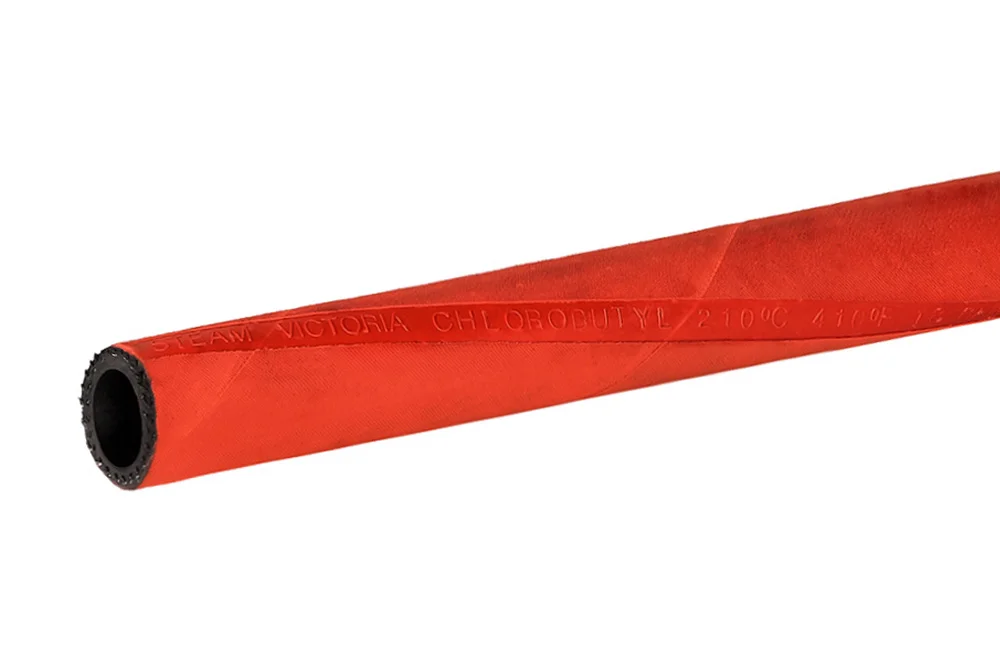

Hose delivery for steam saturated VICTORIA®, PREMIUM

Additional information

Material

IIR – butyl rubber

Maximum operating temperature [°C]

210

Minimum operating temperature [°C]

-40

Vacuum resistance

no

Standard length [m]

60, 60 / 120

Reinforcement

2 steel braids

Strong and flexible hose delivery of reinforcement steel for conducting steam saturated. Layer inner o sound resistance to high temperature, steam saturated and phenomenon pop-corningu (destruction layer internal through penetration condensate steam). withstands momentarily steam superheated o temperature 230°C and pressure 18 bar, longer use with steam superheated reduces service life hose. Layer outer resistant to temperature, conditions atmospheric, abrasion and aging. hose used in industry chemical, petrochemical, power and in other use industrial. Not intended for steam cleaners (“dry steam cleaners”). Do steam water use special fittings bolted screws intended for steam water. in order to extending service life should empty hose with steam po use, by avoid accumulation condensate. factor safety: 10:1. length standard: 60 m. Inner layer: black rubber IIR. Reinforcement: double cord with wire steel. Outer layer: red EPDM rubber, micro-perforated. Working pressure: 18 bar. Operating temperature: od -40°C up to +210°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-VICTORIA-PREM-13Hose VICTORIA PREMIUM 13x25 mm1218In stock0 €
Enquiry
IV-VICTORIA-PREM-19Hose VICTORIA PREMIUM 19x31 mm2018In stock0 €
Enquiry
IV-VICTORIA-PREM-25Hose VICTORIA PREMIUM 25x37 mm2518In stock0 €
Enquiry
IV-VICTORIA-PREM-38Hose VICTORIA PREMIUM 38x54 mm3818In stock0 €
Enquiry
IV-VICTORIA-PREM-51Hose VICTORIA PREMIUM 51x65 mm5018In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Strong and flexible hose delivery of reinforcement steel for conducting steam saturated. Layer inner o sound resistance to high temperature, steam saturated and phenomenon pop-corningu (destruction layer internal through penetration condensate steam). withstands momentarily steam superheated o temperature 230°C and pressure 18 bar, longer use with steam superheated reduces service life hose. Layer outer resistant to temperature, conditions atmospheric, abrasion and aging. hose used in industry chemical, petrochemical, power and in other use industrial. Not intended for steam cleaners (“dry steam cleaners”). Do steam water use special fittings bolted screws intended for steam water. in order to extending service life should empty hose with steam po use, by avoid accumulation condensate. factor safety: 10:1. length standard: 60 m. Inner layer: black rubber IIR. Reinforcement: double cord with wire steel. Outer layer: red EPDM rubber, micro-perforated. Working pressure: 18 bar. Operating temperature: od -40°C up to +210°C.

Additional information

Material

IIR – butyl rubber

Maximum operating temperature [°C]

210

Minimum operating temperature [°C]

-40

Vacuum resistance

no

Standard length [m]

60, 60 / 120

Reinforcement

2 steel braids

Do you need a larger quantity of products or a bespoke quote?
