Is the PUSH-ON JIC self-locking fitting with UNF female thread, type YJW110 compatible with standard PUSH-ON hoses and their specified working pressures?

Yes. The PUSH-ON JIC self-locking fitting with UNF female thread, type YJW110 is compatible with standard PUSH-ON hoses when those hoses are of the type and dimensions the fitting was designed for. Its precisely engineered groove profile is tailored to hose material, dimensions and braid structure so the hose locks securely without additional clamps. The fitting’s working pressure is intended to match the hose’s specified working pressure, and its operating temperature range is −40°C to +80°C. Do not use type YJW110 with other hose types or with external clamping methods, as that can cause damage and compromise performance.

Can the PUSH-ON JIC self-locking fitting with UNF female thread, type YJW110 be installed on non-PUSH-ON hoses or used with external clamps without risking damage?

No. The PUSH-ON JIC self-locking fitting with UNF female thread, type YJW110 is designed exclusively for self-clamping PUSH-ON hoses. Its groove profile is precisely engineered for the specific hose material, dimensions and braid structure to ensure the hose locks onto the fitting securely without additional clamps. Installing it on non-PUSH-ON hoses or using external clamps can prevent the intended locking action, compromise sealing and may damage the hose or fitting. For safe, reliable performance use the YJW110 only with compatible PUSH-ON hoses and follow the hose manufacturer’s pressure and temperature specifications.

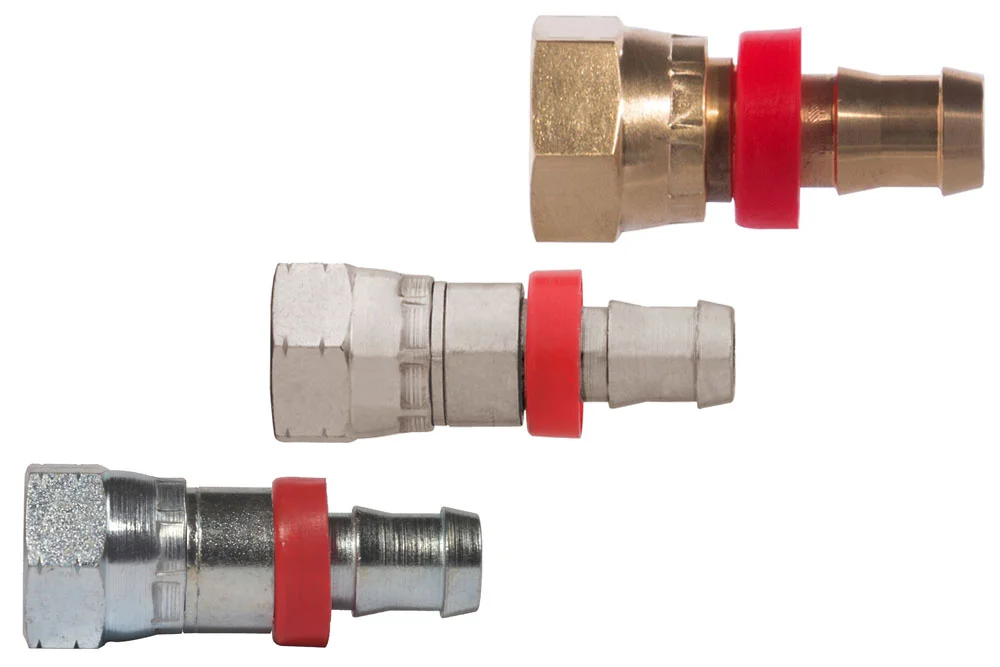

PUSH-ON JIC self-locking fitting with UNF female thread, type YJW110

All products, General purpose hoses/

Additional information

Material	CS – steel (cast iron)

The PUSH-ON JIC end fitting type YJW110 with internal UNF thread is a high-quality solution dedicated to self-clamping PUSH-ON hoses, ensuring secure and reliable connections without the need for additional clamps or bands. Its precisely engineered groove profile is tailored to the hose material, dimensions, and braid structure, allowing the hose to lock firmly onto the fitting for maximum safety and durability. Designed exclusively for PUSH-ON hoses, it guarantees optimal performance while preventing the risk of damage that may occur when used with other hose types or external clamping methods. With an operating temperature range from -40°C to +80°C and working pressure aligned with the hose’s specifications, this fitting delivers dependable functionality even in demanding conditions. Manufactured from robust materials such as galvanized carbon steel, brass, or AISI 316 stainless steel, it combines strength, corrosion resistance, and long service life, making it an excellent choice for industries seeking efficiency, reliability, and ease of installation.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
TI-YJW110-07-04	End. PUSH-ON JIC GW 7/16", hose 1/4", cone 74°	-	-	In stock	Enquiry
TI-YJW110-07-04-MO	End. PUSH-ON JIC G 7/16", hose 1/4", cone 74°, MO58	-	-	In stock	Enquiry
TI-YJW110-07-04-SS	End. PUSH-ON JIC G 7/16", hose 1/4", cone 74°, AISI 316L	-	-	In stock	Enquiry
TI-YJW110-09-06	End. PUSH-ON JIC G 9/16", hose 3/8", cone 74°	-	-	In stock	Enquiry
TI-YJW110-09-06-MO	End. PUSH-ON JIC G 9/16", hose 3/8", cone 74°, MO58	-	-	In stock	Enquiry
TI-YJW110-09-06-SS	End. PUSH-ON JIC G 9/16", hose 3/8", cone 74°, AISI 316L	-	-	In stock	Enquiry
TI-YJW110-12-08	End. PUSH-ON JIC G 3/4", hose 1/2", cone 74°	-	-	In stock	Enquiry
TI-YJW110-12-08-MO	End. PUSH-ON JIC G 3/4", hose 1/2", cone 74°, MO58	-	-	In stock	Enquiry
TI-YJW110-12-08-SS	End. PUSH-ON JIC G 3/4", hose 1/2", cone 74°, AISI 316L	-	-	In stock	Enquiry
TI-YJW110-14-08	End. PUSH-ON JIC G 7/8", hose 1/2", cone 74°	-	-	In stock	Enquiry
TI-YJW110-14-08-MO	End. PUSH-ON JIC GW 7/8", hose 1/2", cone 74°, MO58	-	-	In stock	Enquiry
TI-YJW110-14-08-SS	End. PUSH-ON JIC G 7/8", hose 1/2", cone 74°, AISI 316L	-	-	In stock	Enquiry
TI-YJW110-14-10-MO	End. PUSH-ON JIC G 7/8", hose 5/8", cone 74°, MO58	-	-	In stock	Enquiry
TI-YJW110-14-10-SS	End. PUSH-ON JIC GW 7/8", hose 5/8", cone 74°, AISI 316L	-	-	In stock	Enquiry
TI-YJW110-17-12	End. PUSH-ON JIC G 1.1/16", hose 3/4", cone 74°	-	-	In stock	Enquiry
TI-YJW110-17-12-MO	End. PUSH-ON JIC G 1.1/16", hose 3/4", cone 74°, MO58	-	-	In stock	Enquiry
TI-YJW110-17-12-SS	End. PUSH-ON JIC G 1.1/16", hose 3/4", st. 74°, AISI 316L	-	-	In stock	Enquiry
TI-YJW110-21-16-SS	End. PUSH-ON JIC G 1.5/16", hose 1", st. 74°, AISI 316L	-	-	In stock	Enquiry
