Is the 90° Socket DN6 Quick Coupling with Hose End, Brass TST 060 Series suitable for steam and hot oil applications up to 200°C and 25 bar?

Yes. The 90° Socket DN6 Quick Coupling with Hose End, Brass TST 060 Series is suitable for steam and hot oil applications up to 200°C and 25 bar. Its specifications list a 6 mm flow diameter, working pressure up to 25 bar, and an operating temperature range of -20°C to +200°C when fitted with Viton sealing. Constructed from brass with stainless steel spring, ring and balls, it is designed for hot oil and steam service and for demanding industrial environments, providing corrosion and thermal resistance appropriate for those conditions.

Can the 90° Socket DN6 Quick Coupling with Hose End, Brass TST 060 Series be used in cooling circuits for injection molds and die-cast components?

Yes. The 90° Socket DN6 Quick Coupling with Hose End, Brass TST 060 Series is specifically engineered for cooling circuits of injection molds and die-cast components (plastics, aluminum, brass, zinc alloys). Its 6 mm flow diameter, up to 25 bar working pressure and operating temperature range of −20°C to +200°C (with Viton seal) make it suitable for typical mold cooling media. Brass body and stainless steel internals provide good corrosion and thermal resistance, and the option to use it with or without a valve adds installation flexibility. Ensure compatibility with your specific coolant, sealing material (Viton recommended for higher temps/chemical resistance), hose size and system pressure, and follow maintenance and installation guidelines for best performance.

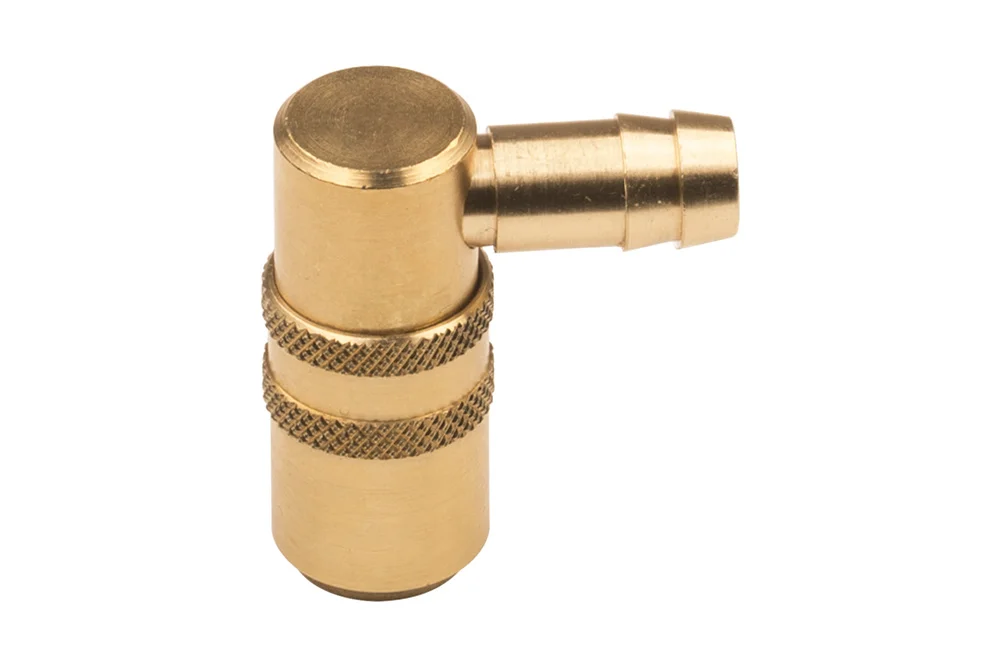

Socket 90° DN 6 quick coupling with fitting for hose, series TST 060, brass

Additional information

Material	B – brass (bronze)

Socket 90° DN 6 quick coupling with “tail” for hose, with valve or without valve, used widely in industry for cooling moulds injection and casting parts with plastics, aluminum, brass and alloys zinc. can be used for water in cleaning machines, for hot oil, steam water. Diameter bore: 6 mm. Working pressure: 25 bar. Operating temperature: od -20°C up to +200°C (Viton). Material: brass (body socket, Connection, sleeve valve), steel stainless (spring, ring, balls).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-CSK060-06-90	Socket 90° DN 6 with Fitting for 6 mm hose, with a valve	6	25	In stock	Enquiry
FW-CSK060-08-90	Socket 90° DN 6 with Fitting for 8 mm hose, with a valve	8	25	In stock	Enquiry
FW-CSK060-09-90	Socket 90° DN 6 with Fitting for 9 mm hose, with a valve	10	25	In stock	Enquiry
FW-CSK060-10-90	Socket 90° DN 6 with Fitting for 10 mm hose, with a valve	10	25	In stock	Enquiry
FW-SK060-06-90	Socket 90° DN 6 with Fitting for 6 mm hose, without valve	6	25	In stock	Enquiry
FW-SK060-08-90	Socket 90° DN 6 with Fitting for 8 mm hose, without valve	8	25	In stock	Enquiry
FW-SK060-09-90	Socket 90° DN 6 with Fitting for 9 mm hose, without valve	10	25	In stock	Enquiry
FW-SK060-10-90	Socket 90° DN 6 with Fitting for 10 mm hose, without valve	10	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Socket 90° DN 6 quick coupling with “tail” for hose, with valve or without valve, used widely in industry for cooling moulds injection and casting parts with plastics, aluminum, brass and alloys zinc. can be used for water in cleaning machines, for hot oil, steam water. Diameter bore: 6 mm. Working pressure: 25 bar. Operating temperature: od -20°C up to +200°C (Viton). Material: brass (body socket, Connection, sleeve valve), steel stainless (spring, ring, balls).
