Is the T-Type R5 Through Tee Connector suitable for both vacuum and compressed air applications up to 16 bar?

Yes. The T-Type R5 Through Tee Connector is suitable for both vacuum and compressed air applications up to 16 bar. Manufactured from nickel-plated brass with NBR sealing, it provides reliable sealing and durability across a temperature range of -20°C to +80°C, supports repeated assembly/disassembly, and is designed for precision, safety, and efficiency in industrial pneumatic systems.

Can the T-Type R5 Through Tee Connector’s nickel-plated brass construction withstand corrosive or high-humidity industrial environments?

Yes. The T-Type R5 Through Tee Connector’s nickel-plated brass construction is specifically described as durable and resistant to wear and corrosion, making it well suited for corrosive or high-humidity industrial environments. Nickel plating enhances the brass substrate’s protection against oxidation and typical industrial corrosion, while the connector’s design (including high-quality NBR sealing) maintains airtight performance under moisture exposure. Its rated operating range (vacuum to compressed air, up to 16 bar, and -20°C to +80°C) and repeated assembly capability further support reliable long-term use in demanding, humid, or moderately corrosive settings. For highly aggressive chemical environments (strong acids, chlorides, or continuous salt spray), consider verifying specific corrosion-resistance requirements or choosing materials with superior chemical resistance.

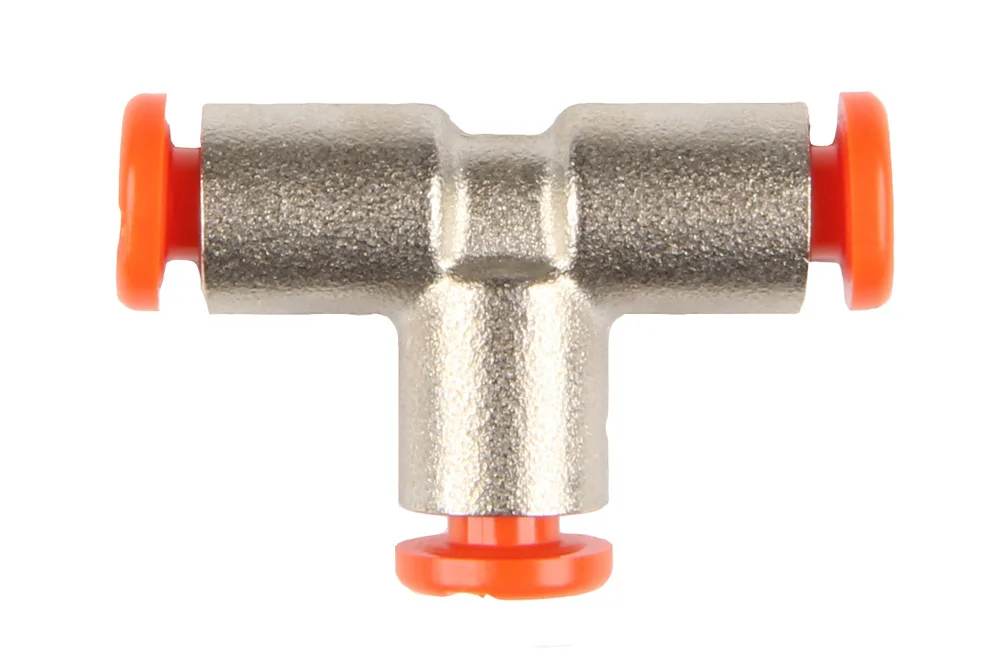

Tee plug-in “T” through-flow, type R5

All products, Push-in fittings/

Additional information

Material	B – brass (bronze)

Tee plug-in “T” through-flow, type R5, intended for connections lines and other element in systems pneumatic. easy and fast in use for repeated mounting without loss tightness po side mechanical and pneumatic. Material: brass nickel-plated. Working pressure: 16 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +80°C. sealing: NBR.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-2005002	Tee fitting R5 hose 5 mm	-	16	In stock	Enquiry
MW-2005006	Tee fitting RL5 hose 12 mm	-	16	In stock	Enquiry
MW-2005007	Tee fitting RL5 hose 14 mm	-	16	In stock	Enquiry
MW-2005A01	Tee fitting R5 hose 3.17 mm	-	16	In stock	Enquiry
MW-2005A02	Tee fitting R5 hose 3 mm	-	16	In stock	Enquiry
MW-2L05001	Tee fitting RL5 hose 4 mm	-	16	In stock	Enquiry
MW-2L05003	Tee fitting RL5 hose 6 mm	-	16	In stock	Enquiry
MW-2L05004	Tee fitting RL5 hose 8 mm	-	16	In stock	Enquiry
MW-2L05005	Tee fitting RL5 hose 10 mm	-	16	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Tee plug-in “T” through-flow, type R5, intended for connections lines and other element in systems pneumatic. easy and fast in use for repeated mounting without loss tightness po side mechanical and pneumatic. Material: brass nickel-plated. Working pressure: 16 bar. medium working: vacuum, air. Operating temperature: od -20°C up to +80°C. sealing: NBR.
