What is the maximum pressure rating for the Reducing Y Plug Tee, Metric Type PYM?

The maximum pressure rating for the Reducing Y Plug Tee, Metric Type PYM is 10 bar. It also withstands vacuum conditions down to 0.99 bar and operates between 0°C and +60°C, with NBR sealing for leak-free connections.

How do I select the correct hose outer diameter sizes when installing the Reducing Y Plug Tee, Metric Type PYM to ensure a leak-free connection?

To ensure a leak-free connection when installing the Reducing Y Plug Tee, Metric Type PYM, select hose outer diameters as follows: - Match the hose outer diameters to the connector’s calibrated metric sizes exactly. The PYM uses plug-in connections sized for specific metric O.D.; using the precise O.D. ensures the NBR seal seats correctly. - Measure hose O.D. with a caliper at multiple points to confirm tolerances and roundness; choose hoses within the manufacturer’s specified diameter range for each port. - For reducing ports, verify each branch’s O.D. corresponds to the intended larger or smaller PYM port—do not force a larger O.D. into a smaller port or vice versa. - Ensure hose wall thickness and flexibility are compatible with push-in fitting installation—too stiff or too thin walls can prevent proper sealing. - Cut hose ends square, remove burrs, and push fully onto the fitting until the hose meets the internal stop so the NBR seal engages uniformly. - Check working conditions: hoses selected should withstand up to 10 bar and the operating temperature range 0°C–+60°C to maintain seal integrity. - After installation, perform a pressure and vacuum leak test (up to specified limits) to confirm no leakage. Following these steps ensures the NBR sealing in the Reducing Y Plug Tee, Metric Type PYM provides a secure, leak-free connection.

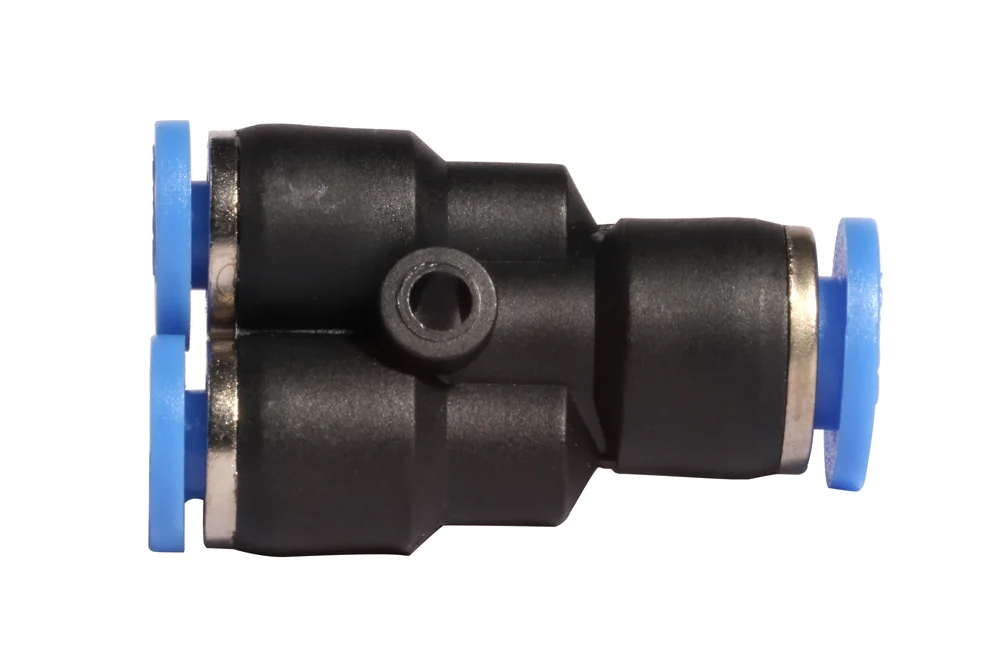

Reducing Y Plug Tee, Metric Type PYM

All products, Push-in fittings/

Additional information

Material	P – material (plastic)

The Y-type reducing tee connector with plug-in connections from the S series, type PYM, is a practical and cost-efficient solution for joining flexible pneumatic hoses with calibrated metric outer diameters. Designed for quick and effortless installation, it ensures reliable performance in demanding pneumatic systems while minimizing assembly time. Manufactured from durable plastic, the connector guarantees long-lasting use under working pressures up to 10 bar and vacuum conditions reaching 0.99 bar. Its operating temperature range from 0°C to +60°C makes it suitable for a wide variety of industrial applications, while the NBR sealing provides secure and leak-free connections. This versatile component is an excellent choice for optimizing pneumatic setups, offering both efficiency and dependability in everyday operations.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
SH-PYM-06-04	Reducer tee fitting PYM, hose 1x6 mm, 2x4 mm	-	10
SH-PYM-08-04	Reducer tee fitting PYM, hose 1x8 mm, 2x4 mm	-	10
SH-PYM-08-06	Reducer tee fitting PYM, hose 1x8 mm, 2x6 mm	-	10
SH-PYM-10-06	Reducer tee fitting PYM, hose 1x10 mm, 2x6 mm	-	10
SH-PYM-10-08	Reducer tee fitting PYM, hose 1x10 mm, 2x8 mm	-	10
SH-PYM-12-08	Reducer tee fitting PYM, hose 1x12 mm, 2x8 mm	-	10
SH-PYM-12-10	Reducer tee fitting PYM, hose 1x12 mm, 2x10 mm	-	10
SH-PYM-16-12	Reducer tee fitting PYM, hose 1x16 mm, 2x12 mm	-	10
SH-PYM-16-14	Reducer tee fitting PYM, hose 1x16 mm, 2x14 mm	-	10

The Y-type reducing tee connector with plug-in connections from the S series, type PYM, is a practical and cost-efficient solution for joining flexible pneumatic hoses with calibrated metric outer diameters. Designed for quick and effortless installation, it ensures reliable performance in demanding pneumatic systems while minimizing assembly time. Manufactured from durable plastic, the connector guarantees long-lasting use under working pressures up to 10 bar and vacuum conditions reaching 0.99 bar. Its operating temperature range from 0°C to +60°C makes it suitable for a wide variety of industrial applications, while the NBR sealing provides secure and leak-free connections. This versatile component is an excellent choice for optimizing pneumatic setups, offering both efficiency and dependability in everyday operations.
