What maintenance schedule is recommended for the Compressed Air Pressure Regulator REG, NEW DEAL Series to ensure reliable long-term performance?

For reliable long-term performance of the Compressed Air Pressure Regulator REG, NEW DEAL Series, follow this maintenance schedule: - Weekly: Visually inspect for external damage, leaks at BSP connections and gauge port, and ensure mounting fasteners remain secure. Verify gauge reading corresponds to required setpoint. - Monthly: Check inlet supply for contamination and moisture; drain upstream filters and condensate traps. Operate the regulator through its adjustment range to confirm smooth movement and stable output. - Quarterly (every 3 months): Clean external surfaces and remove debris from ports. Inspect threads and sealing surfaces; re-seal or replace pipe sealant/tape if needed. Verify pressure gauge accuracy; replace if erratic. - Biannually (every 6 months): Inspect internal components (diaphragm/piston, springs, seats) for wear, corrosion, or deformation. Replace worn seals or piston components per manufacturer recommendations. Check wall-mount points and realign if vibration is present. - Annually: Perform a full functional test under typical supply pressure (up to 18 bar) and operating temperature conditions (up to +50°C). Confirm flow capacity and pressure regulation across expected ranges (0–2, 0–4, 0–8, 0–12 bar). Replace consumables (seals, O-rings) proactively. - As needed: If performance degrades (pressure instability, leaking, reduced flow), remove and service the regulator immediately; replace damaged parts. Use clean, dry compressed air and proper filtration to minimize maintenance frequency. Follow any additional manufacturer service instructions and use genuine replacement parts.

How can I verify compatibility of the Compressed Air Pressure Regulator REG, NEW DEAL Series with existing BSP-threaded piping and pressure gauges?

To verify compatibility of the Compressed Air Pressure Regulator REG, NEW DEAL Series with existing BSP-threaded piping and pressure gauges, follow these steps: 1. Check thread types and sizes - The REG, NEW DEAL Series has BSP female threaded inlet and outlet. Confirm your piping uses BSP (not NPT) threads. - Available body sizes: 1/4", 3/8", 1/2", 3/4", 1". Match your pipe nominal size to the regulator model. 2. Verify gauge connection - For regulator sizes up to 1/2" the gauge port is BSP 1/8". - For 3/4" and 1" models the gauge port is BSP 1/4". Ensure your pressure gauges have the corresponding BSP male thread or use an appropriate adapter. 3. Confirm pressure and temperature limits - Ensure your system’s maximum supply pressure does not exceed 18 bar. - Ensure operating temperature does not exceed +50°C. - Choose the regulator output range that matches your application (0–2, 0–4, 0–8, or 0–12 bar). 4. Check flow capacity - Verify required flow at operating conditions: 650 l/min (1/4"), 2500 l/min (3/8" & 1/2"), 4500 l/min (3/4" & 1") at 6 bar inlet and Δp = 1 bar. Select a size that meets your flow demand. 5. Mounting and physical fit - The regulator supports wall mounting via body holes; confirm clearance and mounting orientation in your installation. 6. Use adapters if needed - If your system uses different thread standards or sizes, use appropriate BSP adapters or fittings rated for the pressures involved. Following these checks ensures mechanical and operational compatibility with your existing BSP-threaded piping and gauges.

Valve reducing for compressed air REG, series NEW DEAL

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50

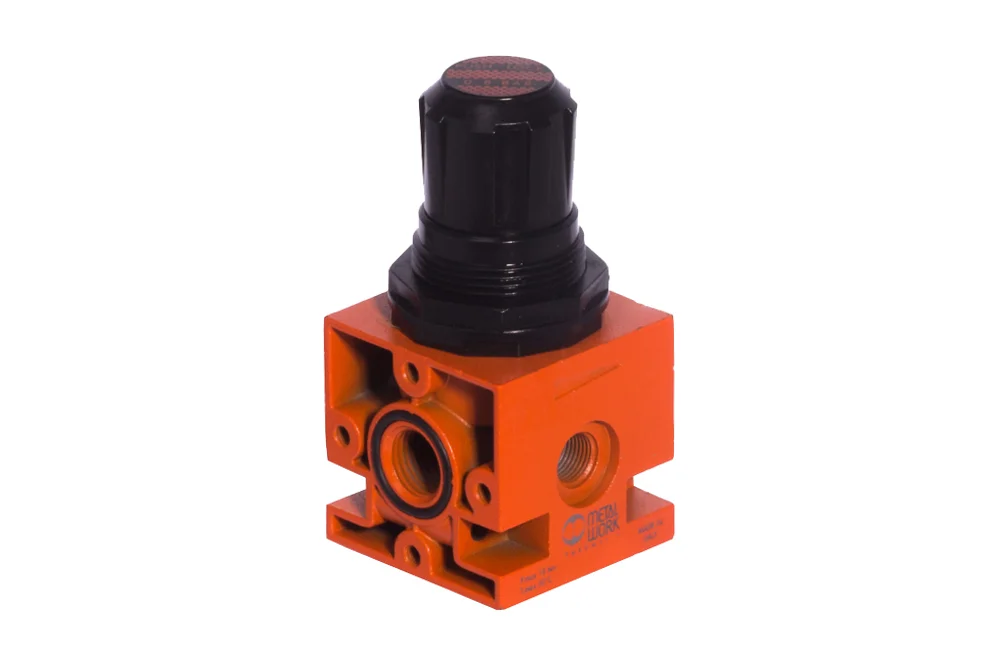

Valve reducing REG type piston, is characterized resistance on heavy conditions use, intended for series NEW DEAL. Possibility of wall mounting via holes in the body. Size: 1/4″, 3/8″, 1/2″, 3/4″, 1″. Output pressure range: 0÷2, 0÷4, 0÷8, 0÷12 bar. Supply pressure: up to 18 bar. Operating temperature: up to +50°C. Connection: 1/4″ BSP female, 3/8″, 1/2″, 3/4″, 1″. Pressure gauge connection: 1/8″ BSP female for valve for 1/2″ (above – 1/4″ BSP female). Flow rate: 650 l/min – 1/4″, 2500 l/min – 3/8″, 1/2″, 4500 l/min – 3/4″, 1″ (at an inlet pressure of 6 bar Δp = 1 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-1202001	Reducing valve REG 1/4 04 (NEW DEAL)	-	-	In stock	Enquiry
MW-1202002	Reducing valve REG 1/4 08 (NEW DEAL)	-	-	In stock	Enquiry
MW-1202003	Reducing valve REG 1/4 012 (NEW DEAL)	-	-	In stock	Enquiry
MW-1202004	Reducing valve REG 1/4 02 (NEW DEAL)	-	-	In stock	Enquiry
MW-1302001	Reducing valve REG 3/8 04 (NEW DEAL)	-	-	In stock	Enquiry
MW-1302002	Reducing valve REG 3/8 08 (NEW DEAL)	-	-	In stock	Enquiry
MW-1302003	Reducing valve REG 3/8 012 (NEW DEAL)	-	-	In stock	Enquiry
MW-1402001	Reducing valve REG 1/2 04 (NEW DEAL)	-	-	In stock	Enquiry
MW-1402002	Reducing valve REG 1/2 08 (NEW DEAL)	-	-	In stock	Enquiry
MW-1402003	Reducing valve REG 1/2 012 (NEW DEAL)	-	-	In stock	Enquiry
MW-1502001	Reducing valve REG 3/4 04 (NEW DEAL)	-	-	In stock	Enquiry
MW-1502002	Reducing valve REG 3/4 08 (NEW DEAL)	-	-	In stock	Enquiry
MW-1502003	Reducing valve REG 3/4 012 (NEW DEAL)	-	-	In stock	Enquiry
MW-1602001	Reducing valve REG 1 04 (NEW DEAL)	-	-	In stock	Enquiry
MW-1602002	Reducing valve REG 1 08 (NEW DEAL)	-	-	In stock	Enquiry
MW-1602003	Reducing valve REG 1 012 (NEW DEAL)	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Valve reducing REG type piston, is characterized resistance on heavy conditions use, intended for series NEW DEAL. Possibility of wall mounting via holes in the body. Size: 1/4″, 3/8″, 1/2″, 3/4″, 1″. Output pressure range: 0÷2, 0÷4, 0÷8, 0÷12 bar. Supply pressure: up to 18 bar. Operating temperature: up to +50°C. Connection: 1/4″ BSP female, 3/8″, 1/2″, 3/4″, 1″. Pressure gauge connection: 1/8″ BSP female for valve for 1/2″ (above – 1/4″ BSP female). Flow rate: 650 l/min – 1/4″, 2500 l/min – 3/8″, 1/2″, 4500 l/min – 3/4″, 1″ (at an inlet pressure of 6 bar Δp = 1 bar).
