Can the High-pressure air regulator 60 bar with gauge, DN12 size maintain stable output pressure under fluctuating air consumption?

Yes. The High-pressure air regulator 60 bar with gauge, DN12 size is designed to maintain a stable output pressure even under fluctuating air consumption. Its piston-type pressure reducing mechanism with integrated manometer ensures reliable pressure regulation, and it is explicitly specified to maintain stable working pressure with varying medium consumption. The unit supports adjustable output pressures from 0.5 to 50 bar (depending on version), accepts supply pressures up to 60 bar, and delivers high flow rates (up to 2000 l/min for 1/4" and 2500 l/min for 3/8" at 20 bar input, Δp = 4 bar), making it suitable for demanding applications where consumption varies. Operating temperature range −10°C to +90°C and robust brass construction further support consistent performance.

How does the High-pressure air regulator 60 bar with gauge, DN12 size perform at low temperatures (-10°C) compared to room temperature?

The High-pressure air regulator 60 bar with gauge, DN12 size is specified for an operating temperature range of -10°C to +90°C, so at -10°C it remains within its rated limits and should function correctly. Expect stable pressure regulation and reliable gauge readings similar to room temperature, provided the unit is properly installed and the medium is dry and free of contaminants that could freeze or thicken at low temperature. Practical considerations at -10°C compared to room temperature: - Response and regulation: Core piston-type mechanism continues to deliver stable output pressure; minor changes in material elasticity may cause slightly different feel or small variation in hysteresis but performance remains within specifications. - Flow capacity: Rated flow figures (up to 2000 l/min for 1/4" and 2500 l/min for 3/8" at 20 bar input, Δp = 4 bar) are valid at standard test conditions; cold air density is higher, so mass flow may increase slightly for the same volumetric flow—practical effect is minimal for most applications. - Seals and wear: Low temperatures can stiffen seals; long-term exposure near the lower limit may slightly accelerate wear if not using compatible seal materials. Manufacturer rating implies seals are suitable for -10°C. - Condensation/freezing risk: If moisture is present, water can condense and freeze, impairing operation. Use dry/filtered air or freeze protection for reliable low-temperature performance. Summary: The regulator performs reliably at -10°C as it is rated for that temperature, with only minor possible effects on seal flexibility, feel, and freezing risks if moisture is present.

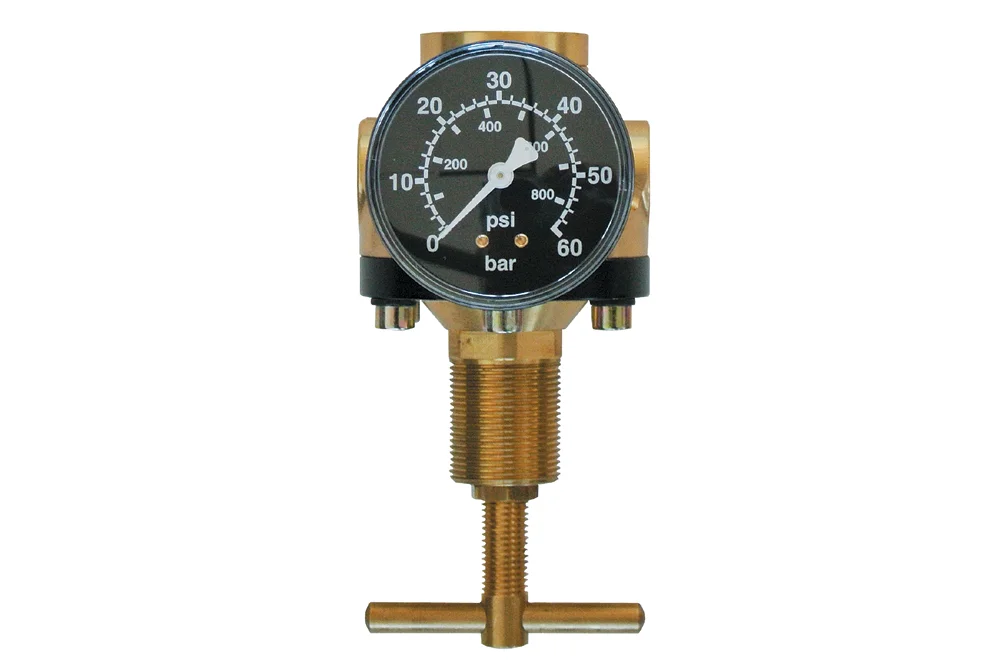

High-pressure air regulator 60 bar with gauge, DN12 size

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	90

The high-pressure piston-type pressure reducing valve with integrated manometer is a reliable solution designed to maintain stable working pressure and guarantee optimal performance of connected systems, even under fluctuating medium consumption. With a compact DN12 size and durable brass housing, it ensures long-lasting resistance to demanding operating conditions. The valve offers a wide range of adjustable output pressures from 0.5 to 50 bar, depending on the selected version, while handling supply pressures up to 60 bar. Suitable for operating temperatures between -10°C and +90°C, it provides versatility across various industrial applications. Equipped with BSP 1/4″ or 3/8″ connections and a clear Ø63 manometer dial, it allows precise monitoring and easy installation. Delivering high flow rates of up to 2000 l/min for 1/4″ and 2500 l/min for 3/8″ connections at 20 bar input pressure (Δp = 4 bar), this valve combines efficiency, safety, and performance, making it an excellent choice for professionals seeking reliable pressure control in high-demand environments.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
EW-302323	Reducer 60 bar DN 12, 1/4" BSP thread, with pressure gauge, 0.5 ÷ 12 bar	-	-	In stock	Enquiry
EW-302324	Reducer 60 bar DN 12, 1/4" BSP female thread, with pressure gauge, 1 ÷ 20 bar	-	-	In stock	Enquiry
EW-302325	Reducer 60 bar DN 12, 1/4" BSP female thread, with pressure gauge, 2 ÷ 35 bar	-	-	In stock	Enquiry
EW-302326	Reducer 60 bar DN 12, 1/4" BSP thread, with pressure gauge, 3 ÷ 50 bar	-	-	In stock	Enquiry
EW-302333	Reducer 60 bar DN 12, GW 3/8" BSP, with pressure gauge, 0.5 ÷ 12 bar	-	-	In stock	Enquiry
EW-302334	Reducer 60 bar DN 12, G 3/8" BSP, with pressure gauge, 1 ÷ 20 bar	-	-	In stock	Enquiry
EW-302335	Reducer 60 bar DN 12, G 3/8" BSP, with pressure gauge, 2 ÷ 35 bar	-	-	In stock	Enquiry
EW-302336	Reducer 60 bar DN 12, G 3/8" BSP, with pressure gauge, 3 ÷ 50 bar	-	-	In stock	Enquiry
