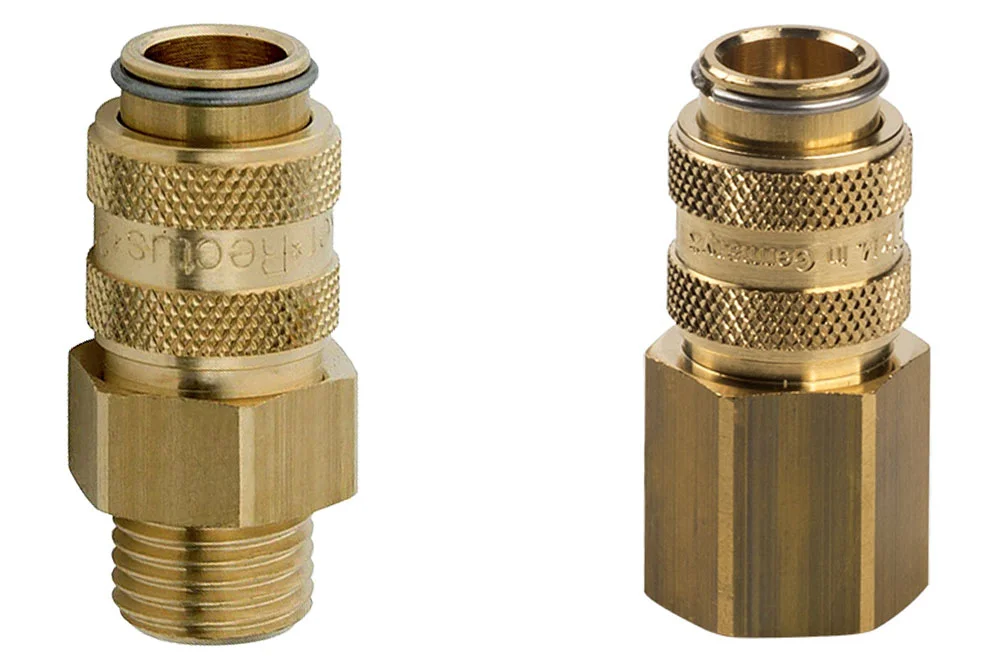

Socket quick coupling double shut-off DN5 with valve, with thread, brass, series 21KB

Additional information

Material

B – brass (bronze)

Socket quick coupling double shut-off, Eurostandard DN5 (MINI), series 21KB with thread external or internal BSP. version double shut-off, has valve in the socket and we plug and not should connect version single shut-offj with double shut-off, because not will occur opening valve. Widely used in industry, where required are small dimensions at high flow capacity flow and small a drop pressure. possible operation one hand. flow capacity: 170 l/min (Pe = 6 bar, Δp=0.5 bar – air), 3.2 l/min (Δp=1 bar Kv=0.19 – water). Working pressure: 35 bar. Material: brass, steel stainless (spring and balls). sealing: NBR. Operating temperature: od -20°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
RE-21KBAW10MPXQuick coupling socket 21KB DN5, 1/8" BSP male, brass, NBR-35In stock0 €
Enquiry
RE-21KBAW13MPXQuick coupling socket 21KB DN5, 1/4" BSP male, brass, NBR-35In stock0 €
Enquiry
RE-21KBIW10MPXQuick coupling socket 21KB DN5, 1/8" BSP female, brass, NBR-35In stock0 €
Enquiry
RE-21KBIW13MPXQuick coupling socket 21KB DN5, 1/4" BSP female, brass, NBR-35In stock0 €
Enquiry
RE-21KBIW17MPXQuick coupling socket 21KB DN5, 3/8" BSP female, brass, NBR-35In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket quick coupling double shut-off, Eurostandard DN5 (MINI), series 21KB with thread external or internal BSP. version double shut-off, has valve in the socket and we plug and not should connect version single shut-offj with double shut-off, because not will occur opening valve. Widely used in industry, where required are small dimensions at high flow capacity flow and small a drop pressure. possible operation one hand. flow capacity: 170 l/min (Pe = 6 bar, Δp=0.5 bar – air), 3.2 l/min (Δp=1 bar Kv=0.19 – water). Working pressure: 35 bar. Material: brass, steel stainless (spring and balls). sealing: NBR. Operating temperature: od -20°C up to +100°C.
