Is the Hydraulic 2-Way Valve with Metric External Thread, SKH L/S Type compatible with standard DIN 2353 fittings and rated for high-pressure hydraulic systems?

Hydraulic 2-Way Valve with Metric External Thread, SKH L/S Type: Yes. The SKH L/S two-way ball valve is designed to DIN 2353 metric external thread standards, so it is compatible with standard DIN 2353 fittings and will integrate directly into existing installations. Constructed entirely from steel (body, ball, stem) and fitted with durable POM (ball) and NBR (stem) seals, it is built for demanding high‑pressure hydraulic systems. It operates reliably across wide temperature ranges (POM: –40°C to +100°C; NBR: –20°C to +100°C), offers smooth operation with minimal pressure loss, and provides robust tightness and wear resistance—making it suitable and safe for high‑pressure hydraulic applications.

Can the Hydraulic 2-Way Valve with Metric External Thread, SKH L/S Type be used with both POM and NBR seals for applications across its full temperature range without compromising seal performance?

Yes — but with temperature-dependent limitations. The Hydraulic 2-Way Valve with Metric External Thread, SKH L/S Type is supplied with POM seals on the ball and NBR seals on the stem and is designed to operate across the valve’s full specified temperature range only when each seal is used within its own rated limits. Specifically: - With POM seals: suitable from −40°C to +100°C. - With NBR seals: suitable from −20°C to +100°C. Therefore you should not expect full seal performance below −20°C if the valve uses NBR stem seals; for temperatures between −40°C and −20°C the POM ball seals remain acceptable but the NBR stem seals may harden and lose sealing effectiveness. For reliable operation across the entire −40°C to +100°C span, ensure any stem sealing exposed to the lowest temperatures is specified with a material rated to −40°C (i.e., replace NBR with a low-temperature alternative) or confirm a variant with compatible seal materials.

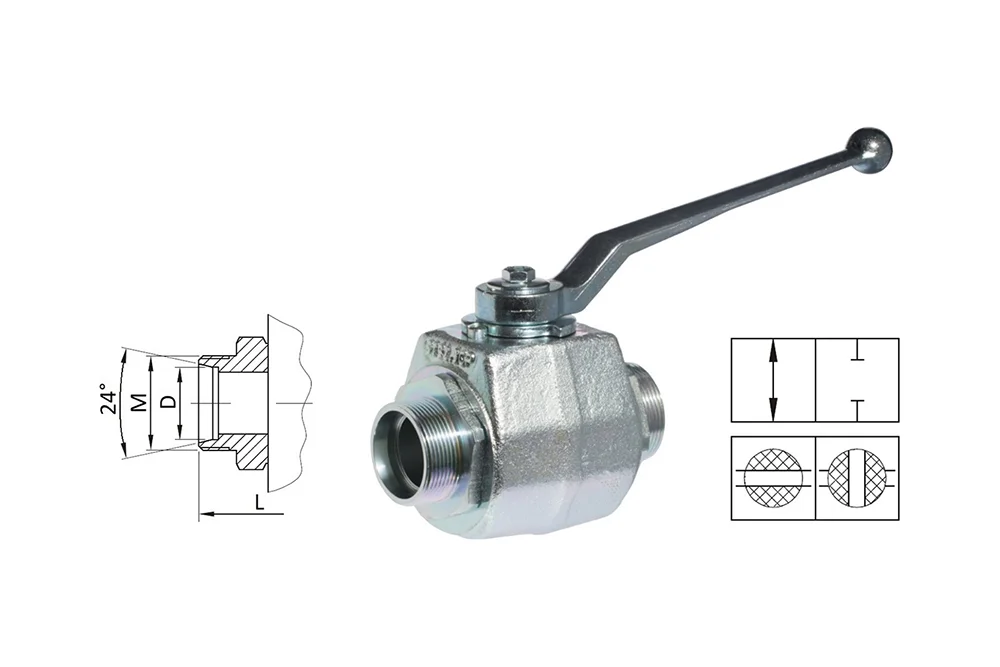

Hydraulic 2-Way Valve with Metric External Thread, SKH L/S Type

All products, Directional control valves/

Additional information

Material	CS – steel (cast iron)

The SKH L/S two-way ball valve with external metric thread in accordance with DIN 2353 is a robust and reliable solution for demanding high-pressure hydraulic systems. Manufactured entirely from durable steel, including the body, ball, and stem, it guarantees long-lasting performance even under intensive operating conditions. The valve is equipped with high-quality seals: POM for the ball and NBR for the stem, ensuring excellent tightness and resistance to wear. Designed to operate within a wide temperature range, it performs flawlessly from -40°C to +100°C with POM seals and from -20°C to +100°C with NBR seals, making it suitable for diverse industrial applications. Its precise construction ensures smooth operation, minimal pressure loss, and maximum safety in hydraulic circuits. Thanks to its compliance with DIN 2353 standards, the valve integrates seamlessly into existing installations, offering engineers and technicians a dependable component that enhances system efficiency. This combination of strength, precision, and versatility makes the SKH L/S valve an ideal choice for industries where reliability and performance are critical.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HZ-SKH-35L	Two-way valve DN32 with GZ M45x2, POM/NBR, lightweight	32	400	In stock	Enquiry
HZ-SKH-38S	Two-way valve DN32 with GZ M52x2, POM/NBR, heavy	32	400	In stock	Enquiry
HZ-SKH-42L	Two-way valve DN40 with GZ M52x2, POM/NBR, lightweight	40	400	In stock	Enquiry
