Is the Hydraulic 2-Way Valve with BSP Female Thread, SKH Type suitable for fluids other than hydraulic oil and extreme temperatures, and do you offer consultation for custom sealing options?

Is the Hydraulic 2-Way Valve with BSP Female Thread, SKH Type suitable for fluids other than hydraulic oil and extreme temperatures, and do you offer consultation for custom sealing options? Yes. The Hydraulic 2-Way Valve with BSP Female Thread, SKH Type is designed for more than standard hydraulic oil service. Constructed from steel (body, ball, stem) and offering selectable ball seals (POM or PTFE) and stem seals (NBR or FKM), it covers a wide temperature range from −200°C to +250°C, making it suitable for many media and extreme thermal conditions. For applications involving non-hydraulic fluids or elevated/very low temperatures, Tubes International provides expert consultation to determine the optimal sealing materials and valve configuration to ensure compatibility, safety, and longevity.

Can the Hydraulic 2-Way Valve with BSP Female Thread, SKH Type be supplied with alternative seals (POM/PTFE, NBR/FKM) and consultation for non-hydraulic fluids or extreme temperature applications?

Yes. The Hydraulic 2-Way Valve with BSP Female Thread, SKH Type can be supplied with alternative seals: POM or PTFE for the ball, and NBR or FKM for the stem, enabling adaptation to wide temperature ranges (-200°C to +250°C). For fluids other than hydraulic oil or for extreme temperature applications, Tubes International offers specialist consultation to determine the optimal seal materials and valve configuration to ensure compatibility, safety and long-term performance.

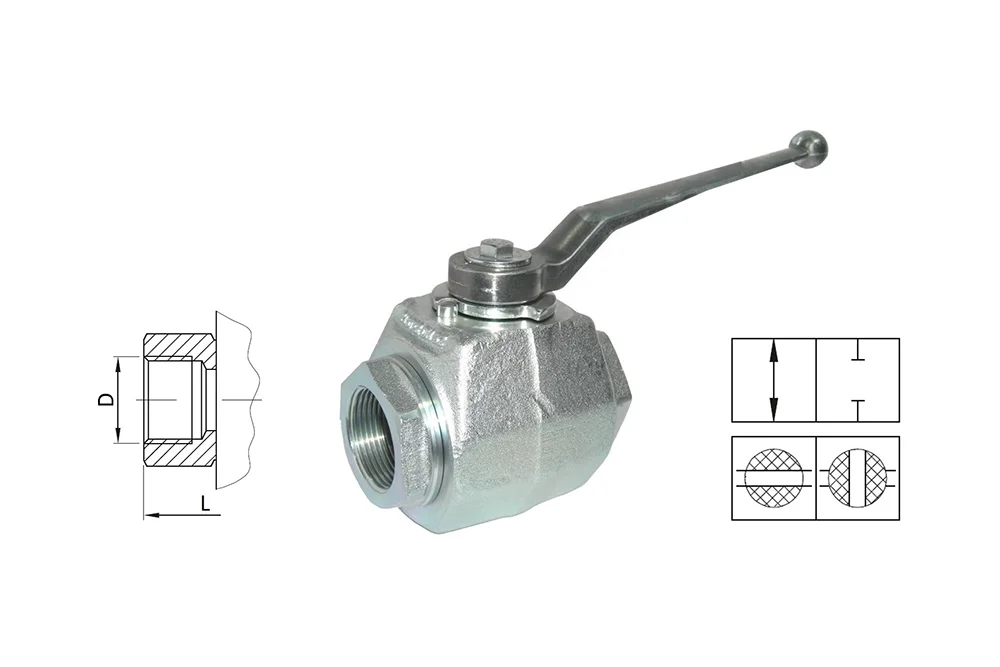

Valve hydraulic two-way with thread internal BSP, type SKH

All products, Directional control valves/

Additional information

Material	CS – steel (cast iron)

High quality two-way ball valve type SKH with thread internal BSP, intended for high-pressure installation hydraulic and industrial. in order to correct selection valve for media other than oil hydraulic and for high temperatures should consult with Tubes International. pressure working dependent od material seal valve. Material: steel (body, ball, stem). seal: POM or PTFE (ball), NBR or FKM (stem). Operating temperature: od -40°C up to +100°C (POM); od -200°C up to +250°C (PTFE); od -20°C up to +100°C (NBR); od -20°C up to +200°C (FKM).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HZ-SKH-G-20	Valve two-way DN32 with 1.1/4" BSP female, POM/NBR	32	400	In stock	Enquiry
HZ-SKH-G-20-T-V	Valve two-way DN32 with 1.1/4" BSP female, PTFE/FKM	32	63	In stock	Enquiry
HZ-SKH-G-24	Valve two-way DN40 with 1.1/2" BSP female, POM/NBR	40	400	In stock	Enquiry
HZ-SKH-G-24-T-V	Valve two-way DN40 with 1.1/2" BSP female, PTFE/FKM	40	63	In stock	Enquiry
HZ-SKH-G-32	Valve two-way DN50 with 2" BSP female, POM/NBR	50	400	In stock	Enquiry
HZ-SKH-G-32-T-V	Valve two-way DN50 with 2" BSP female, PTFE/FKM	50	63	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

High quality two-way ball valve type SKH with thread internal BSP, intended for high-pressure installation hydraulic and industrial. in order to correct selection valve for media other than oil hydraulic and for high temperatures should consult with Tubes International. pressure working dependent od material seal valve. Material: steel (body, ball, stem). seal: POM or PTFE (ball), NBR or FKM (stem). Operating temperature: od -40°C up to +100°C (POM); od -200°C up to +250°C (PTFE); od -20°C up to +100°C (NBR); od -20°C up to +200°C (FKM).
