What maintenance interval is recommended for the Compressed Air Prep Unit F+D 100-300, SKILLAIR® Series to maintain filtration efficiency and condensate discharge performance?

For the Compressed Air Prep Unit F+D 100-300, SKILLAIR® Series, a recommended maintenance interval is to inspect and service the filters and condensate discharge at least every 6 months under normal operating conditions. In more demanding or heavy-duty applications (continuous operation, high contamination load, elevated temperature near +50°C, or higher supply pressures), shorten the interval to every 3 months. Replace the standard 5 µm filter and check the fine filter (99.97% at 0.01 µm) at these intervals, and verify condensate discharge operation (manual, RMSA semi-automatic, or SAC/RA fully automatic) for proper function and sealing. Additionally, perform visual checks of connections and pressure performance monthly and immediately if any drop in air quality or pressure is observed.

How do I choose between manual, semi-automatic (RMSA), and fully automatic (SAC, RA) condensate discharge options for the Compressed Air Prep Unit F+D 100-300, SKILLAIR® Series?

When choosing between manual, semi-automatic (RMSA), and fully automatic (SAC, RA) condensate discharge options for the Compressed Air Prep Unit F+D 100-300, SKILLAIR® Series, consider these practical factors: - Maintenance frequency and staff availability - Manual: choose if regular on-site operator intervention is available and low initial cost is important. - RMSA (semi-automatic): good middle ground—reduces operator workload by prompting periodic manual action; suitable when occasional attention is acceptable. - SAC/RA (fully automatic): best if minimal manual intervention is required or staff presence is limited. - Process continuity and downtime risk - Manual: higher risk of missed drain cycles and potential downtime from liquid buildup. - RMSA: lowers risk versus manual but still needs periodic checks. - Fully automatic: minimizes downtime risk by continuous, unattended condensate removal—preferred for critical, continuous processes. - Air purity and system performance demands - For applications demanding maximum reliability and consistent air quality (high filtration to 0.01 µm, 99.97% efficiency), fully automatic discharge helps maintain stable performance by preventing condensate carryover. - Environmental & regulatory considerations - If condensate must be handled, disposed of, or treated automatically to meet regulations, choose fully automatic options that can be integrated with treatment/disposal systems. - Operating conditions and pressure/temperature - All discharge types are compatible within the unit’s operating range (up to 15 bar, +50°C), but verify model-specific limits for chosen discharge type. - Total cost of ownership - Manual: lowest purchase cost, higher labor and risk costs. - RMSA: moderate cost and labor savings. - Fully automatic: higher upfront cost but lowest labor and risk, typically best for intensive use and long-term efficiency. Recommendation: For intermittent, low-risk applications with available staff, manual or RMSA may suffice. For continuous, critical, or regulated processes and to maximize uptime and air purity of the Compressed Air Prep Unit F+D 100-300, SKILLAIR® Series, select a fully automatic (SAC or RA) condensate discharge.

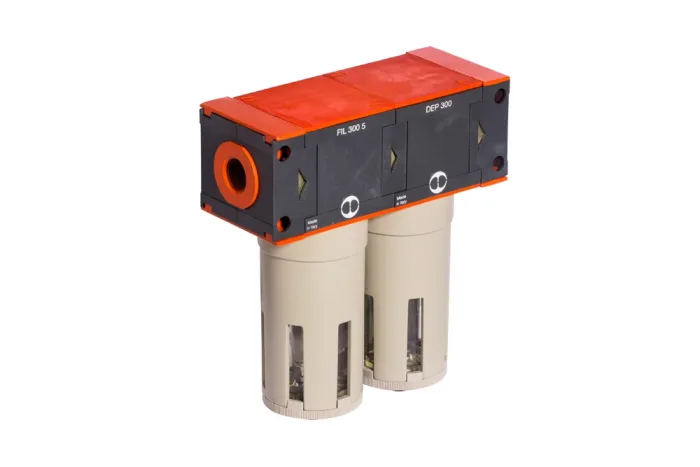

Compressed Air Prep Unit F+D 100-300, SKILLAIR® Series

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50
Standard length [m]	10

The SKILLAIR® Set F + D series is a highly reliable solution designed to ensure maximum purity of compressed air, combining a robust filter with a precision fine filter for superior performance. Engineered to effectively eliminate both liquid and solid impurities, the system guarantees clean and safe air supply for demanding industrial applications. Available in sizes 100, 200, and 300, the units operate at supply pressures up to 15 bar, depending on the model and discharge type. With a filtration capacity of 5 µm for the standard filter and an impressive 99.97% efficiency at 0.01 µm for the fine filter, the set delivers exceptional air quality. Flexible connection options from GW BSP 1/4″ to 1″ ensure easy integration into existing systems, while condensate discharge can be selected as manual, semi-automatic (RMSA), or fully automatic (SAC, RA) to match operational needs. Designed for reliability even in intensive use, the system operates at temperatures up to +50°C, making it the ideal choice for industries that demand consistent performance, reduced downtime, and long-term efficiency.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
MW-3289001	Set F+D 100 1/4 5 RMSA - RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3289005	F+D Set 100 1/4 5 SAC - RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3289006	Set F+D 100 1/4 5 SAC - SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3389001	Set F+D 100 3/8 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3389005	Set F+D 100 3/8 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3489001	Set F+D 200 1/4 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3489005	Set F+D 200 1/4 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3589001	Set F+D 200 3/8 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3589005	Set F+D 200 3/8 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-3689001	Set F+D 200 1/2 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-3689005	Set F+D 200 1/2 5 SAC (SKILLAIR)	-	-	In stock	Enquiry
MW-4489001	Set F+D 300 1/2 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4489002	Set F+D 300 1/2 5 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4589001	Set F+D 300 3/4 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4589002	Set F+D 300 3/4 5 RA (SKILLAIR)	-	-	In stock	Enquiry
MW-4689001	F+D Set 300 1 5 RMSA (SKILLAIR)	-	-	In stock	Enquiry
MW-4689002	F+D Set 300 1 5 RA (SKILLAIR)	-	-	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The SKILLAIR® Set F + D series is a highly reliable solution designed to ensure maximum purity of compressed air, combining a robust filter with a precision fine filter for superior performance. Engineered to effectively eliminate both liquid and solid impurities, the system guarantees clean and safe air supply for demanding industrial applications. Available in sizes 100, 200, and 300, the units operate at supply pressures up to 15 bar, depending on the model and discharge type. With a filtration capacity of 5 µm for the standard filter and an impressive 99.97% efficiency at 0.01 µm for the fine filter, the set delivers exceptional air quality. Flexible connection options from GW BSP 1/4″ to 1″ ensure easy integration into existing systems, while condensate discharge can be selected as manual, semi-automatic (RMSA), or fully automatic (SAC, RA) to match operational needs. Designed for reliability even in intensive use, the system operates at temperatures up to +50°C, making it the ideal choice for industries that demand consistent performance, reduced downtime, and long-term efficiency.
