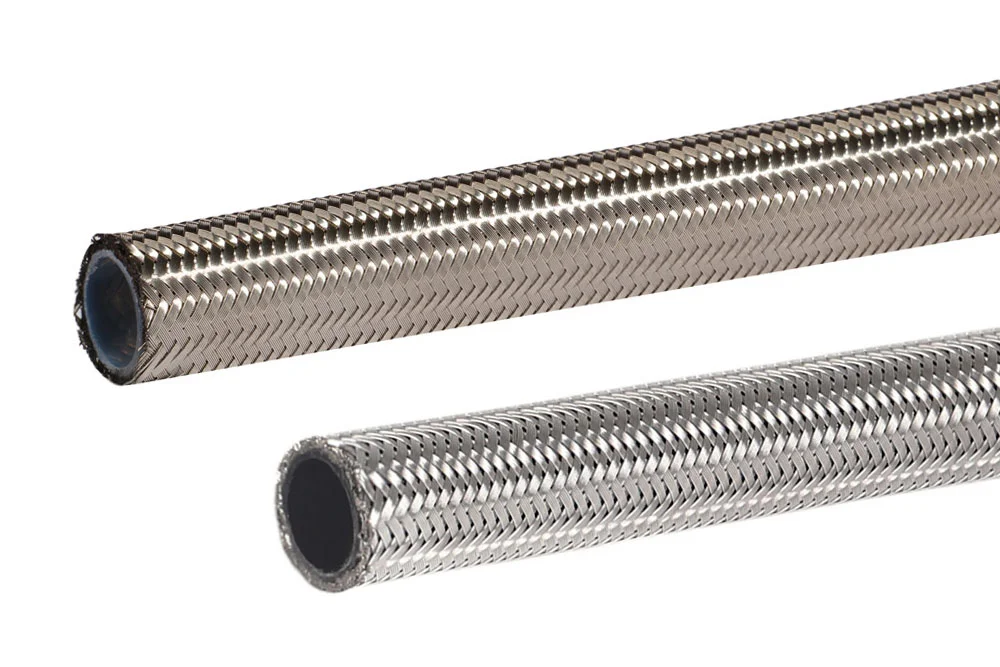

Hose PTFE and antistatic thick wall, in double braid steel AISI 304, SMOOTHBORE HWDB

Additional information

Material

PTFE – teflon and similar

Maximum operating temperature [°C]

260

Minimum operating temperature [°C]

-70

Vacuum resistance

no

Standard length [m]

10.5, 25, 40, 60

Reinforcement

2 steel braids

Hose made is with smooth, seamless tube with PTFE. PTFE tube hose extruded is in strictly defined and controlled conditions, co ensures jej highest quality, minimal porosity and maximum possible for obtaining for hose smooth with PTFE flexible and flexibility. version thick-walled HW recommended is for heavier conditions use, gases (up to 100 bar) and for applications in which available cyclic changes temperatures use. braid made is with annealed wire of steel stainless AISI 304 o high strength on stretching 1700 N/mm 2, o strictly controlled angle arrangement and voltage bundles wire braid, co results minimal changes length hose under high pressure. Due to unique properties PTFE (large range temperatures use, resistance to most substances and compounds chemical, negligible adhesion surface) hose SMOOTHBORE perfectly is suitable for conveying substances chemical, food, fuels, oils, paints, solvents, adhesives, dyes, detergents, steam water etc. – as well as for classic installation high-pressure oil hydraulic. W case when identified is hazard electricity static (danger formation and accumulation charges electric), should use hoses SMOOTHBORE made with PTFE antistatic – version antistatic AS. antistatic teflon version AS is black (contains appropriate distributed in PTFE carbon) and has resistance R 8 Ω (in accordance with the standard ISO 8031 anex A). ensures to discharge and dissipation (dissipation) charges electric. Safety factor 3:1, if required is factor 4:1 (e.g. acc. to EN 16643) should multiply value through 0.75. at temperature use above +130°C maximum pressure working given in parameters should reduced o 0.75% on each 1°C above tej temperatures. for example at temperature 170°C maximum pressure working for hose AF-HWDB-10 is: 240 bar – (170°C-130°C) x 0.75 = 240 bar – 30% = 168 bar. The value “Wall thickness” given in the Technical data refers to the PTFE layer. Hose material: smooth PTFE (teflon). Reinforcement: double braid of steel AISI 304. Working pressure: from 40 bar to 350 bar – depending on the diameter hose. Operating temperature: od -70°C up to +260°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
AF-HWDB-03Hose SMOOTHBORE HWDB 1/8"4350In stock0 €
Enquiry
AF-HWDB-03ASHose SMOOTHBORE HWDB 1/8" antistatic4350In stock0 €
Enquiry
AF-HWDB-05Hose SMOOTHBORE HWDB 3/16"5320In stock0 €
Enquiry
AF-HWDB-05ASHose SMOOTHBORE HWDB 3/16" antistatic5320In stock0 €
Enquiry
AF-HWDB-06Hose SMOOTHBORE HWDB 1/4"6310In stock0 €
Enquiry
AF-HWDB-06ASHose SMOOTHBORE HWDB 1/4" antistatic6310In stock0 €
Enquiry
AF-HWDB-08Hose SMOOTHBORE HWDB 5/16"8275In stock0 €
Enquiry
AF-HWDB-08ASHose SMOOTHBORE HWDB 5/16 antistatic8275In stock0 €
Enquiry
AF-HWDB-10Hose SMOOTHBORE HWDB 3/8"10240In stock0 €
Enquiry
AF-HWDB-10ASHose SMOOTHBORE HWDB 3/8" antistatic10240In stock0 €
Enquiry
AF-HWDB-13Hose SMOOTHBORE HWDB 1/2"12200In stock0 €
Enquiry
AF-HWDB-13ASHose SMOOTHBORE HWDB 1/2" antistatic12200In stock0 €
Enquiry
AF-HWDB-16Hose SMOOTHBORE HWDB 5/8"16155In stock0 €
Enquiry
AF-HWDB-16ASHose SMOOTHBORE HWDB 5/8" antistatic16155In stock0 €
Enquiry
AF-HWDB-19Hose SMOOTHBORE HWDB 3/4"20110In stock0 €
Enquiry
AF-HWDB-19ASHose SMOOTHBORE HWDB 3/4" antistatic20110In stock0 €
Enquiry
AF-HWDB-25Hose SMOOTHBORE HWDB 1"2584In stock0 €
Enquiry
AF-HWDB-25ASHose SMOOTHBORE HWDB 1" antistatic2584In stock0 €
Enquiry
AF-HWDB-32Hose SMOOTHBORE HWDB 1.1/4"3275In stock0 €
Enquiry
AF-HWDB-32ASHose SMOOTHBORE HWDB 1.1/4" antistatic3275In stock0 €
Enquiry
AF-HWDB-38Hose SMOOTHBORE HWDB 1.1/2"3865In stock0 €
Enquiry
AF-HWDB-38ASHose SMOOTHBORE HWDB 1.1/2" antistatic3865In stock0 €
Enquiry
AF-HWDB-51Hose SMOOTHBORE HWDB 2"5040In stock0 €
Enquiry
AF-HWDB-51ASHose SMOOTHBORE HWDB 2" antistatic5040In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?
