Can the Brass Quick Coupling Socket DN9 with Male Thread, TST 090 Series withstand continuous use with hot oil and steam up to 200°C at 25 bar?

Yes. The Brass Quick Coupling Socket DN9 with Male Thread, TST 090 Series can withstand continuous use with hot oil and steam up to 200°C at 25 bar. Its specifications state a working pressure up to 25 bar and an operating temperature range up to +200°C (with Viton seals). The product description explicitly confirms safe use with hot oil and steam. Construction materials—brass body, connection and valve sleeve with stainless steel spring, ring and balls—provide corrosion and wear resistance suitable for demanding industrial environments, supporting continuous operation under those temperature and pressure conditions.

Is the Brass Quick Coupling Socket DN9 with Male Thread, TST 090 Series suitable for handling potable water and cleaning agents in automated wash systems at 25 bar and up to 200°C?

Yes. The Brass Quick Coupling Socket DN9 with Male Thread, TST 090 Series is suitable for handling potable water and cleaning agents in automated wash systems at up to 25 bar and temperatures up to 200°C. Its specifications explicitly support a working pressure of up to 25 bar and an operating temperature range of -20°C to +200°C (with Viton). The brass body, connection and valve sleeve combined with stainless steel spring, ring and balls provide good corrosion resistance and durability for water and common cleaning agents. The 60° cone seal and option for a valve improve leak prevention and operational safety. Ensure compatibility of specific cleaning chemicals with brass and Viton (some strong acids/alkalis or oxidizers may cause corrosion or elastomer degradation) and verify any potable-water certification required for your jurisdiction before installation.

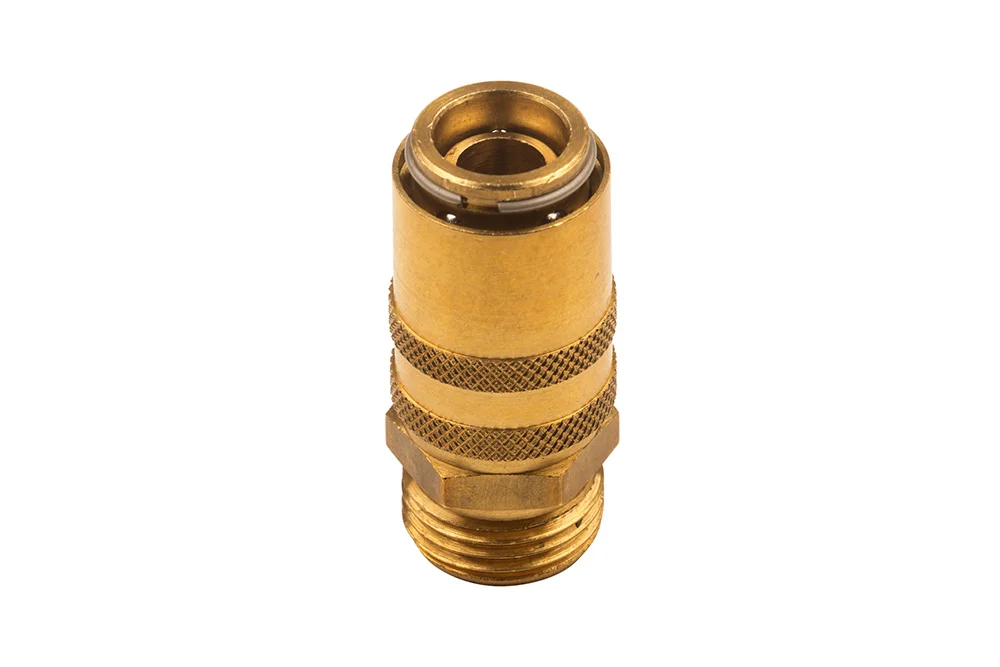

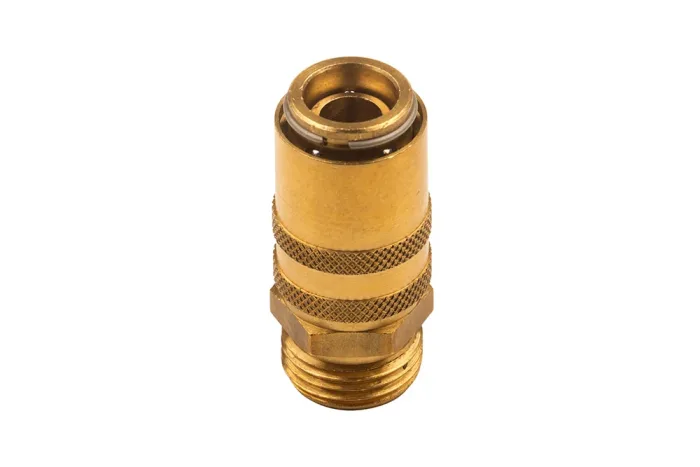

Brass Quick Coupling Socket DN9 with Male Thread, TST 090 Series

Additional information

Material	B – brass (bronze)

The DN 9 quick coupling socket with external BSP or metric thread and a 60° cone seal is a versatile solution designed for demanding industrial applications. Available with or without a valve, it ensures reliable performance in processes such as cooling injection molds and die-cast components made of plastics, aluminum, brass, or zinc alloys. Its robust construction allows safe use with water in cleaning systems, as well as with hot oil and steam, making it a universal connector for diverse production environments. With a 9 mm flow diameter, a working pressure of up to 25 bar, and an impressive operating temperature range from -20°C to +200°C (Viton), this coupling guarantees efficiency and durability even under extreme conditions. The body, connection, and valve sleeve are made of high-quality brass, while the spring, ring, and balls are crafted from stainless steel, ensuring long-lasting resistance to wear and corrosion. This combination of materials and technical parameters makes the DN 9 quick coupling socket a reliable choice for industries seeking precision, safety, and uninterrupted operation.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
FW-CSK090-EG17	DN 9 socket with GZ 3/8" BSP, 60° cone, with valve	-	25	In stock	Enquiry
FW-CSK090-EG21	Socket DN 9 with GZ 1/2" BSP, 60° cone, with valve	-	25	In stock	Enquiry
FW-CSK090-EGM16	Socket DN 9 with GZ M16x1.5, 60° cone, with valve	-	25	In stock	Enquiry
FW-SK090-EG17	Socket DN 9 with GZ 3/8" BSP, 60° cone, without valve	-	25	In stock	Enquiry
FW-SK090-EG21	Socket DN 9 with GZ 1/2" BSP, 60° cone, without valve	-	25	In stock	Enquiry
FW-SK090-EGM16	Socket DN 9 with GZ M16x1.5, 60° cone, without valve	-	25	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The DN 9 quick coupling socket with external BSP or metric thread and a 60° cone seal is a versatile solution designed for demanding industrial applications. Available with or without a valve, it ensures reliable performance in processes such as cooling injection molds and die-cast components made of plastics, aluminum, brass, or zinc alloys. Its robust construction allows safe use with water in cleaning systems, as well as with hot oil and steam, making it a universal connector for diverse production environments. With a 9 mm flow diameter, a working pressure of up to 25 bar, and an impressive operating temperature range from -20°C to +200°C (Viton), this coupling guarantees efficiency and durability even under extreme conditions. The body, connection, and valve sleeve are made of high-quality brass, while the spring, ring, and balls are crafted from stainless steel, ensuring long-lasting resistance to wear and corrosion. This combination of materials and technical parameters makes the DN 9 quick coupling socket a reliable choice for industries seeking precision, safety, and uninterrupted operation.
