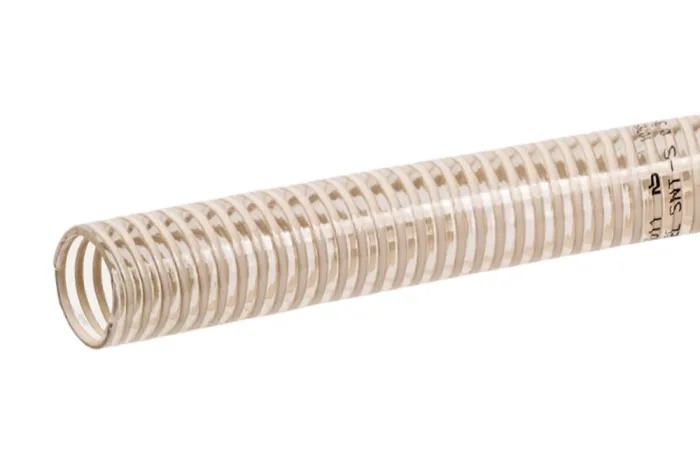

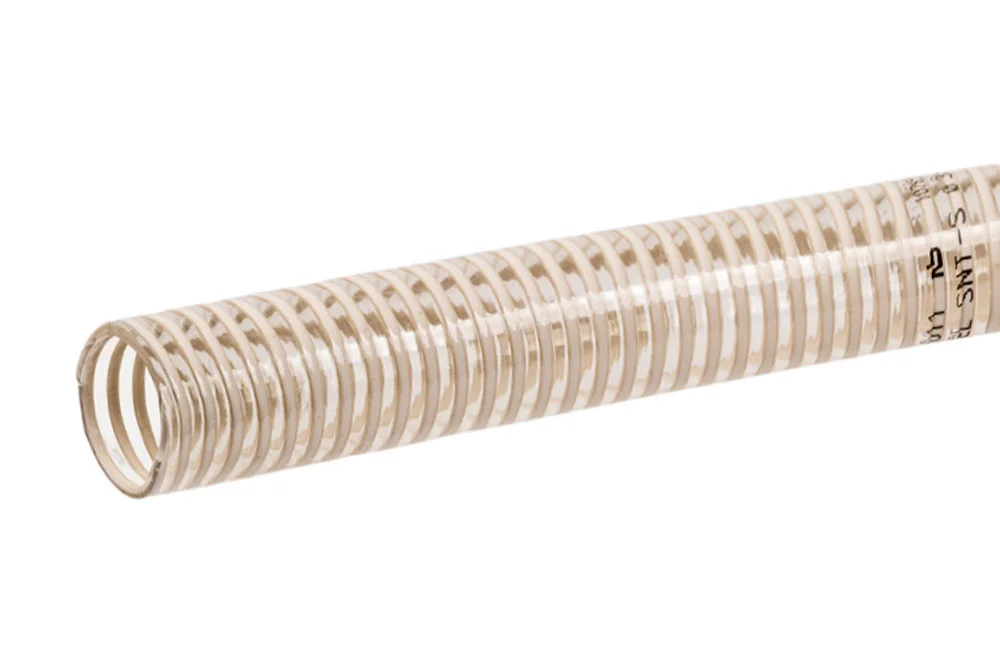

SPIRABEL® SNTS Hard PVC Spiral-Reinforced Hose for Food Applications

Additional information

Material

PVC – polyvinyl chloride

Maximum operating temperature [°C]

60

Minimum operating temperature [°C]

-15

Vacuum resistance

yes

Standard length [m]

10, 20, 25, 40, 50, 60

Reinforcement

PVC spiral

This lightweight and highly flexible suction and discharge hose is designed for safe and efficient transfer of water, juices, beverages, and a wide range of food products. Manufactured from transparent PVC free of phthalates, it is suitable for milk and dairy derivatives as well as alcohols up to 50% concentration at temperatures reaching +60°C, while its smooth inner surface minimizes flow resistance and simplifies cleaning. Reinforced with a durable hard PVC spiral, the hose offers excellent resistance to vacuum and collapse, while the clear wall enables continuous visual monitoring of the medium. The smooth outer layer not only facilitates the installation of fittings with tapes or clamps but also enhances protection against abrasion and makes maintenance effortless. Beyond food applications, it is a versatile solution for industrial, agricultural, and construction use, handling light chemicals, water, sludge, wastewater, air, dust, powders, and granules, provided they are free from fats, oils, and hydrocarbons. Its adaptability is complemented by compliance with strict European food contact regulations (1935/2004/EC, 10/2011/EU, 2023/2006/EC), ensuring safety and reliability in professional environments. With working pressure ranging from 3 to 7 bar depending on diameter and an operating temperature range of -15°C to +60°C, this hose combines durability, hygiene, and practicality, making it an indispensable component for businesses seeking efficiency and quality in fluid and bulk transfer operations.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
TR-SPIRABEL-020SPIRABEL hose SNTS 20 mm, wall thickness 2.6 mm207In stock
Enquiry
TR-SPIRABEL-025SPIRABEL hose SNTS 25 mm, wall thickness 2.7 mm257In stock
Enquiry
TR-SPIRABEL-030SPIRABEL hose SNTS 30 mm, wall thickness 2.7 mm306In stock
Enquiry
TR-SPIRABEL-032SPIRABEL hose SNTS 32 mm, wall thickness 2.8 mm326In stock
Enquiry
TR-SPIRABEL-035SPIRABEL hose SNTS 35 mm, wall thickness 3 mm356In stock
Enquiry
TR-SPIRABEL-038SPIRABEL hose SNTS 38 mm, wall thickness 3 mm386In stock
Enquiry
TR-SPIRABEL-040SPIRABEL hose SNTS 40 mm, wall thickness 3 mm406In stock
Enquiry
TR-SPIRABEL-045SPIRABEL hose SNTS 45 mm, wall thickness 3.1 mm455In stock
Enquiry
TR-SPIRABEL-050SPIRABEL hose SNTS 50 mm, wall thickness 3.3 mm505In stock
Enquiry
TR-SPIRABEL-055SPIRABEL hose SNTS 55 mm, wall thickness 3.3 mm555In stock
Enquiry
TR-SPIRABEL-060SPIRABEL hose SNTS 60 mm, wall thickness 3.3 mm605In stock
Enquiry
TR-SPIRABEL-063SPIRABEL hose SNTS 63 mm, wall thickness 3.3 mm655In stock
Enquiry
TR-SPIRABEL-070SPIRABEL hose SNTS 70 mm, wall thickness 3.4 mm704In stock
Enquiry
TR-SPIRABEL-075SPIRABEL hose SNTS 75 mm, wall thickness 4.8 mm753In stock
Enquiry
TR-SPIRABEL-080SPIRABEL hose SNTS 80 mm, wall thickness 5.3 mm803In stock
Enquiry
TR-SPIRABEL-090SPIRABEL hose SNTS 90 mm, wall thickness 6.1 mm903In stock
Enquiry
TR-SPIRABEL-100SPIRABEL hose SNTS 100 mm, wall thickness 6.1 mm1003In stock
Enquiry
TR-SPIRABEL-110SPIRABEL hose SNTS 110 mm, wall thickness 6.1 mm1103In stock
Enquiry
TR-SPIRABEL-120SPIRABEL hose SNTS 120 mm, wall thickness 6.1 mm1203In stock
Enquiry
TR-SPIRABEL-151SPIRABEL hose SNTS 151 mm, wall thickness 6.3 mm1503In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This lightweight and highly flexible suction and discharge hose is designed for safe and efficient transfer of water, juices, beverages, and a wide range of food products. Manufactured from transparent PVC free of phthalates, it is suitable for milk and dairy derivatives as well as alcohols up to 50% concentration at temperatures reaching +60°C, while its smooth inner surface minimizes flow resistance and simplifies cleaning. Reinforced with a durable hard PVC spiral, the hose offers excellent resistance to vacuum and collapse, while the clear wall enables continuous visual monitoring of the medium. The smooth outer layer not only facilitates the installation of fittings with tapes or clamps but also enhances protection against abrasion and makes maintenance effortless. Beyond food applications, it is a versatile solution for industrial, agricultural, and construction use, handling light chemicals, water, sludge, wastewater, air, dust, powders, and granules, provided they are free from fats, oils, and hydrocarbons. Its adaptability is complemented by compliance with strict European food contact regulations (1935/2004/EC, 10/2011/EU, 2023/2006/EC), ensuring safety and reliability in professional environments. With working pressure ranging from 3 to 7 bar depending on diameter and an operating temperature range of -15°C to +60°C, this hose combines durability, hygiene, and practicality, making it an indispensable component for businesses seeking efficiency and quality in fluid and bulk transfer operations.
