Is the 90° Elbow, BSP Female x BSPT Male Thread, Stainless Steel, Type VT153 suitable for potable water and food-grade applications?

90° Elbow, BSP Female x BSPT Male Thread, Stainless Steel, Type VT153 Yes — the Type VT153 made from AISI 316 stainless steel is generally suitable for potable water and food‑grade applications. AISI 316 offers excellent corrosion resistance and is commonly used in food, beverage, and water systems. The fitting’s robust construction, precise threads and up to 10 bar working pressure support safe, leak‑resistant service in these sectors. Caveats: confirm any required certifications (e.g., NSF/ANSI, WRAS, or local potable‑water approvals) and ensure thread type/pipe sealing methods meet sanitary standards for your specific installation. For strict food‑grade or pharmaceutical processes, verify surface finish, traceability and whether any additional hygienic or cleanability requirements must be met.

Can the 90° Elbow, BSP Female x BSPT Male Thread, Stainless Steel, Type VT153 withstand continuous exposure to aggressive chemicals and high humidity environments?

Yes. The 90° Elbow, BSP Female x BSPT Male Thread, Stainless Steel, Type VT153 is manufactured from AISI 316 stainless steel, which offers excellent corrosion resistance and durability in moist, chemically aggressive, and fluctuating-temperature environments. Its robust construction and precise threads ensure a tight seal that minimizes leakage risk, and its rated working pressure up to 10 bar supports safe continuous operation in many industrial settings. These properties make Type VT153 suitable for continuous exposure to many aggressive chemicals and high-humidity environments commonly encountered in chemical processing, food & beverage, water treatment, and general industry. Caveat: AISI 316 resists a broad range of corrosives but is not universally impervious. Highly aggressive media (e.g., strong reducing acids, chlorides at elevated temperature/concentration, certain halogenated solvents) or specific process conditions may require higher-alloy materials or special coatings. For continuous exposure to a particular chemical or extreme conditions, verify compatibility with detailed chemical-resistance data and consult technical/specification sheets or the manufacturer to confirm suitability for your exact application.

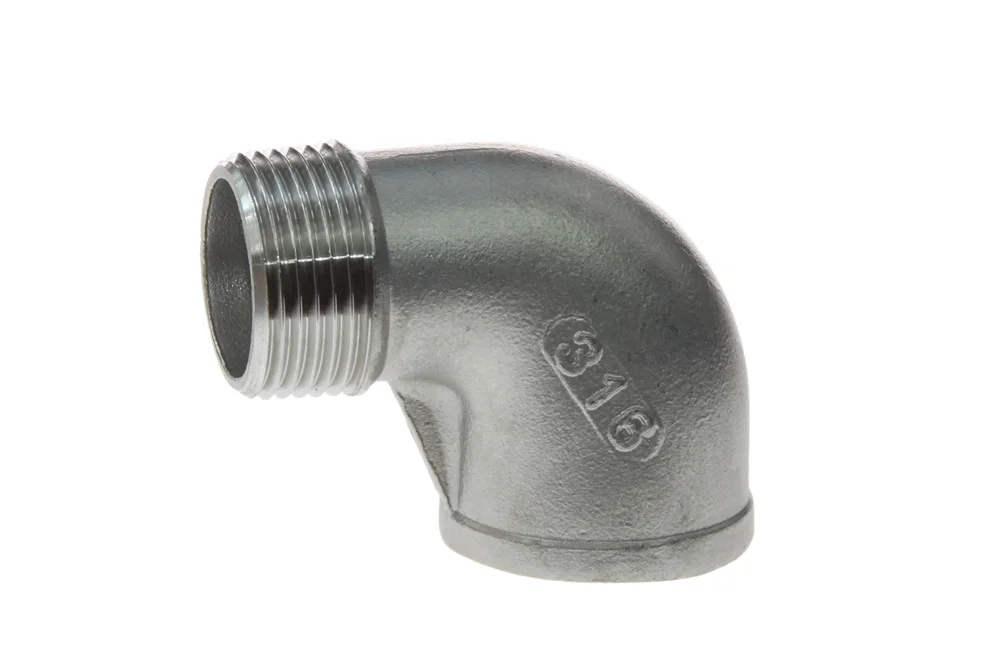

90° Elbow, BSP Female x BSPT Male Thread, Stainless Steel, Type VT153

Additional information

Material	SS – stainless steel

The 90° elbow with internal BSP thread and external BSPT thread is a reliable solution designed for precise and secure piping connections in demanding industrial installations. Manufactured from high‑quality AISI 316 stainless steel, it ensures excellent resistance to corrosion, durability under challenging conditions, and long service life even in environments exposed to moisture, chemicals, or temperature fluctuations. With a working pressure of up to 10 bar, this fitting provides safe and efficient performance, making it suitable for a wide range of applications in sectors such as chemical processing, food and beverage, water treatment, and general industry. Its robust construction and precise threading guarantee a tight seal, minimizing the risk of leaks and ensuring smooth operation of the entire system. Easy to install and compatible with standard piping components, this elbow fitting offers both reliability and convenience, helping optimize installation time while maintaining the highest standards of safety and efficiency.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
NM-VT153-04	90° elbow with G thread BSP/GZ thread BSPT 1/4", AISI 316	-	10	In stock	Enquiry
NM-VT153-06	90° elbow with G1/2 BSP/G1/2 BSPT 3/8", AISI 316	-	10	In stock	Enquiry
NM-VT153-08	90° elbow with G thread BSP/ G thread BSPT 1/2", AISI 316	-	10	In stock	Enquiry
NM-VT153-12	90° elbow with G thread BSP/ G thread BSPT 3/4", AISI 316	-	10	In stock	Enquiry
NM-VT153-16	90° elbow with G1" BSP/G1" BSPT, AISI 316	-	10	In stock	Enquiry
NM-VT153-20	90° elbow with G1 BSP / G1 BSPT 1.1/4", AISI 316	-	10	In stock	Enquiry
NM-VT153-24	90° elbow with G1/2" BSP male thread / G1/2" BSPT female thread, AISI 316	-	10	In stock	Enquiry
NM-VT153-32	90° elbow with G thread BSP/ G thread BSPT 2", AISI 316	-	10	In stock	Enquiry
NM-VT153-40	90° elbow with G thread BSP/ G thread BSPT 2.1/2", AISI 316	-	10	In stock	Enquiry
NM-VT153-48	90° elbow with G1 BSP / G1 BSPT 3", AISI 316	-	10	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The 90° elbow with internal BSP thread and external BSPT thread is a reliable solution designed for precise and secure piping connections in demanding industrial installations. Manufactured from high‑quality AISI 316 stainless steel, it ensures excellent resistance to corrosion, durability under challenging conditions, and long service life even in environments exposed to moisture, chemicals, or temperature fluctuations. With a working pressure of up to 10 bar, this fitting provides safe and efficient performance, making it suitable for a wide range of applications in sectors such as chemical processing, food and beverage, water treatment, and general industry. Its robust construction and precise threading guarantee a tight seal, minimizing the risk of leaks and ensuring smooth operation of the entire system. Easy to install and compatible with standard piping components, this elbow fitting offers both reliability and convenience, helping optimize installation time while maintaining the highest standards of safety and efficiency.
