Is the Stainless Steel End Piece with GZ BSP and Anti-Bending Spring, Type AK suitable for continuous use at 40 bar in high-temperature washing applications?

Yes. The Stainless Steel End Piece with GZ BSP and Anti-Bending Spring, Type AK is suitable for continuous use at 40 bar in high-temperature washing applications, provided the system temperature remains within the material and seal ratings. Rationale: - Pressure rating: the product description specifies a working pressure capacity of up to 40 bar, matching your requirement. - Construction: manufactured from AISI 316 stainless steel, it offers excellent corrosion resistance and durability for harsh, wet, and chemically aggressive wash environments. - Anti-kink spring: the integrated robust spring protects the hose at the connection point during frequent bending, reducing wear and maintaining reliable flow under continuous operation. Caveat: confirm that all seals, hose materials, and any connected components are rated for the specific high temperatures encountered; AISI 316 performs well at elevated temperatures but polymer seals or hoses may have lower limits. If exact temperature and seal/hose specifications are provided, a definitive suitability confirmation can be given.

Can the Stainless Steel End Piece with GZ BSP and Anti-Bending Spring, Type AK withstand repeated bending cycles in hot-water washing lines without loss of anti-kink performance?

Yes. The Stainless Steel End Piece with GZ BSP and Anti-Bending Spring, Type AK is designed to withstand repeated bending cycles in hot-water washing lines without loss of anti-kink performance. Its integrated anti-kink spring is specially engineered for frequent bending at the water-gun connection, providing effective protection against kinking and premature wear. Constructed from high-grade AISI 316 stainless steel, the fitting resists corrosion and maintains mechanical integrity in hot, wet environments. With a working pressure rating up to 40 bar and a robust spring construction, it delivers consistent anti-kink performance and extended service life under the demanding conditions typical of industrial washing applications.

Stainless Steel End Piece with GZ BSP and Anti-Bending Spring, Type AK

All products, Low-pressure water spray guns/

Additional information

Material	SS – stainless steel

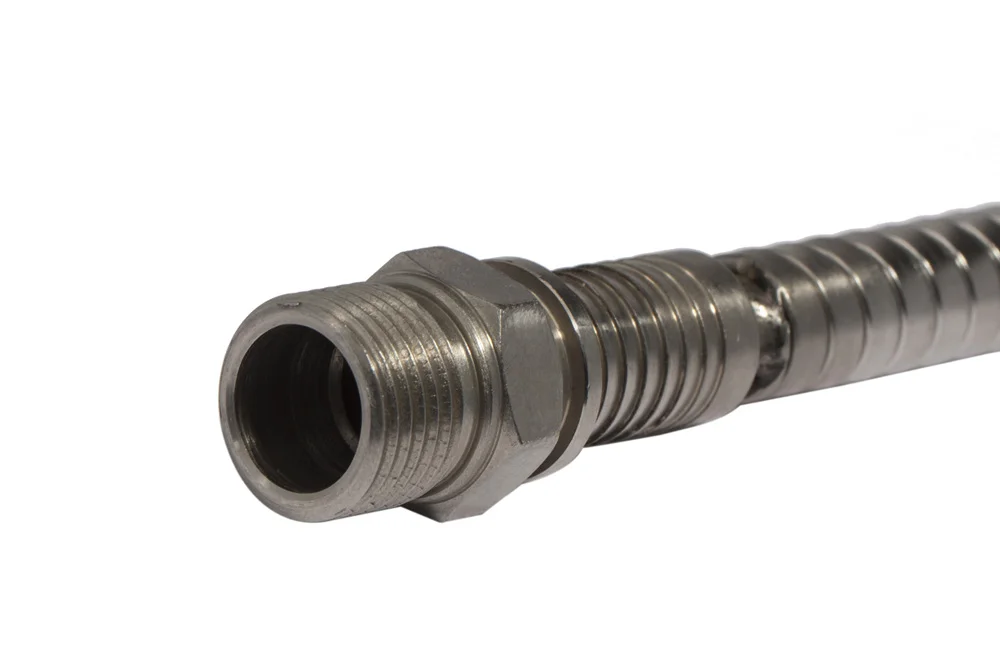

The AK fitting with external BSP thread and integrated anti-kink spring, measuring 200 mm in length, is a reliable solution for demanding industrial applications. Specially engineered for use in washing hoses at the connection point with a water gun, it ensures smooth operation even when frequent bending of the hose is required. The robust spring construction effectively protects the hose from kinking and premature wear, extending its service life and maintaining consistent performance. Manufactured from high-grade AISI 316 stainless steel, the fitting guarantees excellent resistance to corrosion and durability in harsh working environments. With a working pressure capacity of up to 40 bar, it provides both safety and efficiency, making it an ideal choice for industries that require dependable hose connections and long-lasting protection.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AK-RVST13-C17-SP	GZ 1/2" BSP end, flange 17 mm, spring, for 1/2" hose, AISI 316	12	40	In stock	Enquiry
AK-RVST13-C20-SP	GZ 1/2" BSP end, flange 20 mm, spring, for 1/2" hose, AISI 316	12	40	In stock	Enquiry
AK-RVST16-C21-SP	GZ 1/2" BSP end, flange 21 mm, spring, for 5/8" hose, AISI 316	16	40	In stock	Enquiry
AK-RVST19-C24-SP	GZ 1/2" BSP end, 24 mm flange, spring, for 3/4" hose, AISI 316	20	40	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

The AK fitting with external BSP thread and integrated anti-kink spring, measuring 200 mm in length, is a reliable solution for demanding industrial applications. Specially engineered for use in washing hoses at the connection point with a water gun, it ensures smooth operation even when frequent bending of the hose is required. The robust spring construction effectively protects the hose from kinking and premature wear, extending its service life and maintaining consistent performance. Manufactured from high-grade AISI 316 stainless steel, the fitting guarantees excellent resistance to corrosion and durability in harsh working environments. With a working pressure capacity of up to 40 bar, it provides both safety and efficiency, making it an ideal choice for industries that require dependable hose connections and long-lasting protection.
