How does the FLEX-GEAR HD 845 Series Stainless Steel Compensation Spring Band maintain constant clamping force during hose shrinkage or extreme temperature changes?

The FLEX-GEAR HD 845 Series Stainless Steel Compensation Spring Band maintains constant clamping force through its integrated spring system: a set of 10 disc springs located under the screw head. As the hose shrinks or expands with temperature changes, these disc springs compress or expand to automatically take up the dimensional change, keeping tension on the band and ensuring an even, continuous seal around the hose circumference. The springs visibly flatten at correct installation, confirming proper preload. The internal insert protects the hose surface while the stainless steel 410 screw/lock and 300 band provide durable, corrosion-resistant construction. Together, the disc-spring compensation, robust materials, and correct torque specification (8.5 Nm nominal, max 14.1 Nm) ensure leak-free performance and maintained clamping force under extreme thermal variations.

How do the 10 disc springs in the FLEX-GEAR HD 845 Series Stainless Steel Compensation Spring Band indicate correct installation and optimal clamping?

How do the 10 disc springs in the FLEX-GEAR HD 845 Series Stainless Steel Compensation Spring Band indicate correct installation and optimal clamping? The 10 disc springs are located under the screw head and automatically compensate for hose shrinkage and thermal changes, maintaining constant clamping force. Correct installation and optimal clamping are indicated by two visible signs: - The screw end extends beyond the lock housing. - The disc springs are visibly flattened under the screw head. When both conditions are met, the clamp provides a secure, even seal around the hose without damaging the surface (protected by the internal insert). The assembly torque guidance is 8.5 Nm (max 14.1 Nm) and the band is 16 mm (5/8") wide, making the check straightforward and reliable for heavy‑duty, variable‑temperature applications.

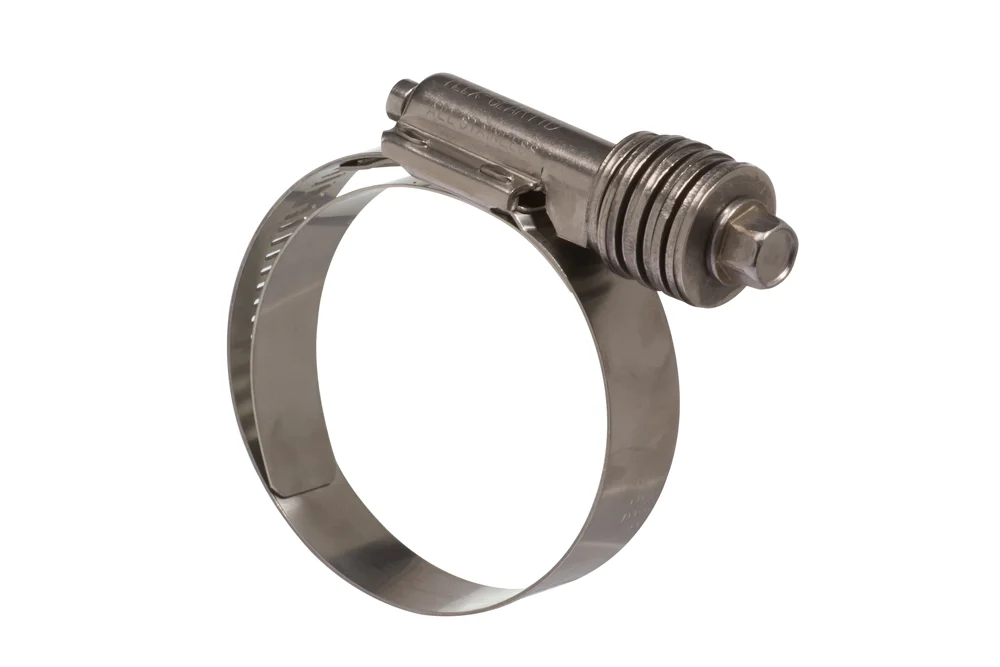

FLEX-GEAR HD 845 Series Stainless Steel Compensation Spring Band

All products, Clamps for mounting ends/

Additional information

Material	SS – stainless steel

The band clamp with worm drive and integrated spring system provides reliable, long-lasting sealing performance even under demanding conditions. Its innovative design, featuring a set of 10 disc springs positioned under the screw head, automatically compensates for dimensional changes caused by hose shrinkage or extreme temperature fluctuations. This ensures constant clamping force and a secure seal around the entire circumference of the hose, effectively preventing leaks and maintaining system integrity. The internal insert safeguards the hose surface from damage, while the stainless steel 410 screw and lock combined with a stainless steel 300 band guarantee durability and resistance to corrosion. With a 16 mm (5/8″) band width and installation torque of 8.5 Nm (maximum 14.1 Nm), the clamp is particularly recommended for heavy-duty applications exposed to significant thermal variations. Proper installation is confirmed when the screw end extends beyond the lock housing and the disc springs are visibly flattened, providing a clear and reliable indication of optimal tightening. This advanced clamp solution delivers both performance and peace of mind in critical installations.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
AB-845175	FLEX-GEAR HD band 25÷45 mm, SS	-	-	In stock	Enquiry
AB-845200	FLEX-GEAR HD strap 32÷54 mm, SS	-	-	In stock	Enquiry
AB-845250	FLEX-GEAR HD strap 45÷67 mm, SS	-	-	In stock	Enquiry
AB-845300	FLEX-GEAR HD strap 57÷79 mm, SS	-	-	In stock	Enquiry
AB-845350	FLEX-GEAR HD strap 70÷92 mm, SS	-	-	In stock	Enquiry
AB-845400	FLEX-GEAR HD band 83÷105 mm, SS	-	-	In stock	Enquiry
AB-845450	FLEX-GEAR HD strap 95÷117 mm, SS	-	-	In stock	Enquiry
AB-845500	FLEX-GEAR HD band 108÷130 mm, SS	-	-	In stock	Enquiry
AB-845550	FLEX-GEAR HD strap 121÷143 mm, SS	-	-	In stock	Enquiry
AB-845600	FLEX-GEAR HD strap 133÷155 mm, SS	-	-	In stock	Enquiry
AB-845650	FLEX-GEAR HD strap 146÷168 mm, SS	-	-	In stock	Enquiry
AB-845700	FLEX-GEAR HD strap 159÷181 mm, SS	-	-	In stock	Enquiry
AB-845750	FLEX-GEAR HD strap 172÷193 mm, SS	-	-	In stock	Enquiry
AB-845800	FLEX-GEAR HD strap 184÷206 mm, SS	-	-	In stock	Enquiry
AB-845850	FLEX-GEAR HD band 197÷219 mm, SS	-	-	In stock	Enquiry
AB-845900	FLEX-GEAR HD strap 210÷232 mm, SS	-	-	In stock	Enquiry
