Can FSS Swivel Flange End for Steam Hose EN 14423, Stainless Steel be used with PN40 flanges for saturated steam at +210°C and 18 bar?

Yes. FSS Swivel Flange End for Steam Hose EN 14423, Stainless Steel can be used with PN40 flanges for saturated steam at +210°C and 18 bar. The product description states the fittings are manufactured to EN 1092-1 including PN40, are produced from AISI 316 stainless steel, and are rated suitable for saturated steam up to +210°C at pressures up to 18 bar. Pressure ratings are adapted to the flange class at that temperature, so compatibility with PN40 and safe operation at the specified steam conditions is confirmed. For final selection and installation details, consult Tubes International or product technical support.

Can FSS Swivel Flange End for Steam Hose EN 14423, Stainless Steel be used with ASA/ASME 300 PSI flanges for high-temperature saturated steam applications?

Yes — FSS Swivel Flange End for Steam Hose EN 14423, Stainless Steel can be used with ASA/ASME 300 PSI flanges for high‑temperature saturated steam applications, with the following conditions met: - Flange compatibility: The product is manufactured to ASA/ASME 300 PSI standard, so it is mechanically compatible with 300‑class flanges. - Pressure/temperature limits: The fitting is rated for saturated steam up to +210°C and working pressures up to 18 bar at that temperature; ensure the flange class pressure rating at +210°C is acceptable for your system (ASME 300 class pressure must be verified at the operating temperature). - Material and corrosion resistance: Made from AISI 316 stainless steel, it is suitable for steam service and resistant to corrosion in demanding conditions. - Installation: Use the correct shell clamps and follow EN 14423 / DIN 2826 installation practice to secure the corrugated tail and locking system. - Verification: Confirm the combined assembly (hose + swivel flange + mating ASME 300 flange) meets your system’s pressure‑temperature requirements, gasket and bolting specifications, and any applicable safety codes. For site‑specific selection and to confirm pressure ratings at your exact operating temperature, consult Tubes International or your engineering authority.

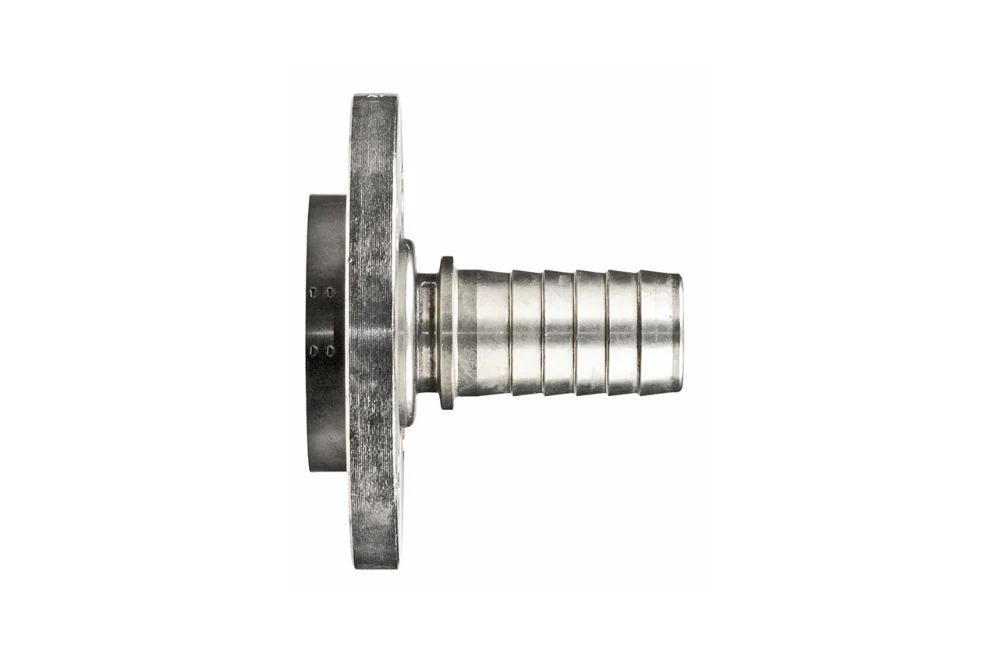

FSS Swivel Flange End for Steam Hose EN 14423, Stainless Steel

All products, Steam hoses/

Additional information

Material	SS – stainless steel
Standard length [m]	15, 2

FSS hose fittings with rotating flange are designed for secure and reliable connection of rubber steam hoses, featuring a corrugated tail and locking system for installation with shell clamps in compliance with EN 14423 and DIN 2826 standards, available in sizes from 1/2” to 2”. The flanges are manufactured according to European standards EN 1092-1 (PN16 and PN40) as well as American ASA/ASME standards (150 PSI and 300 PSI), ensuring compatibility with a wide range of systems worldwide. Produced from high-quality stainless steel AISI 316 or durable galvanized steel, these fittings guarantee excellent resistance to corrosion and demanding operating conditions. They are suitable for working pressures up to 18 bar at +210°C for saturated steam, with pressure ratings adapted to the respective flange class at this temperature. For other media and applications, the permissible working pressure corresponds to the selected flange class, such as PN40, ensuring flexibility and safety in diverse industrial environments. For optimal selection and technical support, customers are encouraged to consult Tubes International for tailored solutions.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
RS-FSA2-015-013-SS	FSS end with rotary coupling ASA 1/2", hose 1/2", AISI 316	12	18	In stock	Enquiry
RS-FSA2-020-019-SS	FSS end with rotary coupling ASA 3/4", hose 3/4", AISI 316	20	18	In stock	Enquiry
RS-FSA2-025-025-SS	FSS end with rotary coupling ASA 1", hose 1", AISI 316	25	18	In stock	Enquiry
RS-FSA2-032-032-SS	FSS end with rotary coupling ASA 1.1/4", hose 1.1/4", AISI 316	32	18	In stock	Enquiry
RS-FSA2-040-038-SS	FSS end with rotary coupling ASA 1.1/2", hose 1.1/2", AISI 316	38	18	In stock	Enquiry
RS-FSA2-050-050-SS	FSS end with rotary coupling ASA 2", hose 2", AISI 316	50	18	In stock	Enquiry
RS-FSA4-015-013-SS	FSS end with rotary coupling ASA 300 1/2", hose 1/2", AISI 316	12	18	In stock	Enquiry
RS-FSA4-020-019-SS	FSS end with rotary coupling ASA 300 3/4", hose 3/4", AISI 316	20	18	In stock	Enquiry
RS-FSA4-025-025-SS	FSS end with rotary collar ASA 300 1", hose 1", AISI 316	25	18	In stock	Enquiry
RS-FSA4-032-032-SS	FSS end with rotary coupling ASA 300 1.1/4", hose 1.1/4", AISI 316	32	18	In stock	Enquiry
RS-FSA4-040-038-SS	FSS end with rotary coupling ASA 300 1.1/2", hose 1.1/2", AISI 316	38	18	In stock	Enquiry
RS-FSA4-050-050-SS	FSS end with rotary coupling ASA 300 2", hose 2", AISI 316	50	18	In stock	Enquiry
RS-FSS2-015-013-SS	FSS end with rotary coupling DN15 PN40, hose 1/2", AISI 316	12	18	In stock	Enquiry
RS-FSS2-015-013-SST	FSS end with rotary coupling DN15 PN40, hose 1/2", AISI 316 / zinc-coated steel flange.	12	18	In stock	Enquiry
RS-FSS2-020-019-SS	FSS end with rotary coupling DN20 PN40, hose 3/4", AISI 316	20	18	In stock	Enquiry
RS-FSS2-020-019-SST	FSS end with rotary coupling DN20 PN40, hose 3/4", AISI 316 / zinc-coated steel flange.	20	18	In stock	Enquiry
RS-FSS2-025-013-SS	FSS end with rotary coupling DN25 PN40, hose 1/2", AISI 316	12	18	In stock	Enquiry
RS-FSS2-025-019-SS	FSS end with rotary coupling DN25 PN40, hose 3/4", AISI 316	20	18	In stock	Enquiry
RS-FSS2-025-019-SST	FSS end with rotary coupling DN25 PN40, hose 3/4", AISI 316 / zinc-coated steel flange.	20	18	In stock	Enquiry
RS-FSS2-025-025-SS	FSS end with rotary coupling DN25 PN40, hose 1", AISI 316	25	18	In stock	Enquiry
RS-FSS2-025-025-SST	FSS end with rotary coupling DN25 PN40, hose 1", AISI 316 / zinc-coated steel.	25	18	In stock	Enquiry
RS-FSS2-032-032-SS	FSS end with rotary coupling DN32 PN40, hose 1.1/4", AISI 316	32	18	In stock	Enquiry
RS-FSS2-032-032-SST	FSS end with rotary coupling DN32 PN40, hose 1.1/4", AISI 316 / zinc-coated steel flange.	32	18	In stock	Enquiry
RS-FSS2-040-038-SS	FSS end with rotary coupling DN40 PN40, hose 1.1/2", AISI 316	38	18	In stock	Enquiry
RS-FSS2-040-038-SST	FSS end with rotary coupling DN40 PN40, hose 1.1/2", AISI 316 / zinc-coated steel flange.	38	18	In stock	Enquiry
RS-FSS2-050-050-SS	FSS end with rotary coupling DN50 PN16, hose 2", AISI 316	50	18	In stock	Enquiry
RS-FSS2-050-050-SST	FSS end with rotary coupling DN50 PN16, 2" hose, AISI 316 / zinc-coated steel flange.	50	18	In stock	Enquiry
RS-FSS4-050-050-SS	FSS end with rotary coupling DN50 PN40, hose 2", AISI 316	50	18	In stock	Enquiry
RS-FSS4-050-050-SST	FSS end with rotary coupling DN50 PN40, hose 2", AISI 316 / zinc-coated steel flange.	50	18	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

FSS hose fittings with rotating flange are designed for secure and reliable connection of rubber steam hoses, featuring a corrugated tail and locking system for installation with shell clamps in compliance with EN 14423 and DIN 2826 standards, available in sizes from 1/2” to 2”. The flanges are manufactured according to European standards EN 1092-1 (PN16 and PN40) as well as American ASA/ASME standards (150 PSI and 300 PSI), ensuring compatibility with a wide range of systems worldwide. Produced from high-quality stainless steel AISI 316 or durable galvanized steel, these fittings guarantee excellent resistance to corrosion and demanding operating conditions. They are suitable for working pressures up to 18 bar at +210°C for saturated steam, with pressure ratings adapted to the respective flange class at this temperature. For other media and applications, the permissible working pressure corresponds to the selected flange class, such as PN40, ensuring flexibility and safety in diverse industrial environments. For optimal selection and technical support, customers are encouraged to consult Tubes International for tailored solutions.
