Is the Stainless Steel Reel for Water, Air & Detergent E-254/314 ATEX-certified for safe use in explosive atmospheres?

Yes. The Stainless Steel Reel for Water, Air & Detergent E-254/314 is ATEX-certified for safe use in potentially explosive atmospheres. It is fully compliant with ATEX directive II 3 GD c IIB TX, ensuring safe operation in environments where explosive gases or dust may be present.

What maintenance is required to ensure the Stainless Steel Reel for Water, Air & Detergent E-254/314 continues to meet ATEX and performance specifications?

To ensure the Stainless Steel Reel for Water, Air & Detergent E-254/314 continues to meet ATEX and performance specifications, follow a regular maintenance program: - Visual inspection weekly: check hose, swivel coupling, spring protector and reel housing for wear, kinks, corrosion, cuts or chemical attack. Verify Viton seals show no cracking or hardening. - Functional test monthly: unwind and rewind the reel through full travel to confirm smooth operation of the retractable spring and even winding; listen for unusual noise or sticking. Operate under normal working pressure and temperature (up to +70°C) to confirm proper flow and sealing. - Hose and coupling check: inspect polyurethane hose and bend-protection spring for abrasion, delamination, or deformation; confirm swivel coupling rotates freely and leak-free. Replace hose immediately if damage or leaks are found. - Seal and leak testing quarterly: pressure-test connections and seals at working pressure to detect leaks from fittings, swivel or hose. Replace Viton seals if leakage or deterioration occurs. - ATEX compliance verification annually: confirm no modifications or non-approved parts have been installed, check marking legibility and certificate validity. Record and retain inspection results per ATEX documentation requirements. - Spring and rewind mechanism service: after heavy use or every 30,000 cycles (or sooner if performance degrades), have the spring and rewind assembly serviced or replaced by qualified personnel. - Cleaning and corrosion protection: clean stainless surfaces with compatible, non-corrosive cleaners; remove corrosive residues (detergents, salts) after use. Avoid abrasive cleaning agents that damage AISI 304 finish. - Qualified repairs only: use manufacturer-approved spare parts (Viton seals, hoses, fittings) and have repairs performed by trained technicians to preserve ATEX rating. - Recordkeeping: maintain logs of inspections, tests, repairs and parts replacements to demonstrate ongoing compliance. Following these steps will help maintain safety, performance and ATEX conformity of the Stainless Steel Reel for Water, Air & Detergent E-254/314.

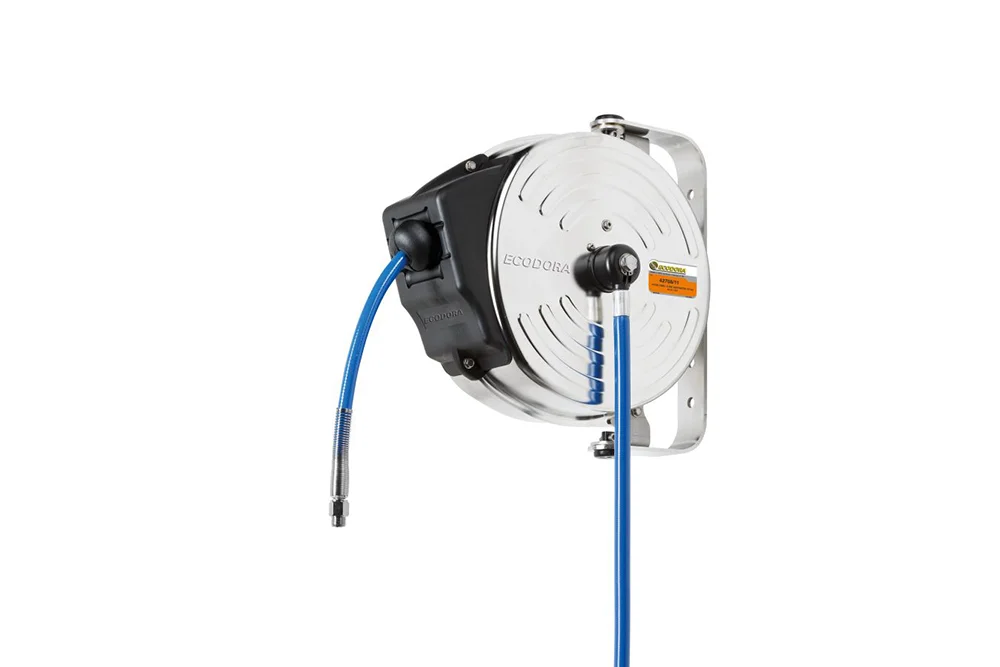

Stainless Steel Reel for Water, Air & Detergent E-254/314

All products, Spring-driven hose reels/

Additional information

Material	SS – stainless steel
Maximum operating temperature [°C]	70

This robust reel is engineered for versatile use, ensuring reliable transmission of air, hot and cold water, as well as detergents, making it an ideal solution for demanding industrial and commercial environments. Designed for both indoor and outdoor installation, it features a highly durable retractable spring tested for up to 30,000 winding and unwinding cycles, guaranteeing long-lasting performance. Fully compliant with ATEX directive II 3 GD c IIB TX, it provides safe operation even in potentially explosive atmospheres. The reel comes equipped with a premium polyurethane hose reinforced with a bend protection spring and a swivel coupling, allowing smooth and flexible handling of connected tools such as pneumatic devices. With a 1.5 m supply hose, stainless steel AISI 304 construction, and viton sealing, it ensures exceptional resistance to wear, corrosion, and chemicals. Designed to operate at temperatures up to +70°C, this reel combines durability, safety, and efficiency, making it a reliable choice for professional applications where performance and safety are paramount.

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
ED-42708-11	Drum E-254 with hose 5/16" / 12 m, 20 bar, AISI 304 steel	8	20	In stock	Enquiry
ED-42708-12	Drum E-254 with hose 3/8" / 10 m, 20 bar, stainless steel AISI 304	10	20	In stock	Enquiry
ED-43208-12	Drum E-314 with hose 5/16" / 12 m, 20 bar, AISI 304 steel	8	20	In stock	Enquiry
ED-43208-13	Drum E-314 with hose 5/16" / 15 m, 20 bar, AISI 304 steel	8	20	In stock	Enquiry
ED-43208-14	Drum E-314 with hose 5/16" / 20 m, 20 bar, AISI 304 steel	8	20	In stock	Enquiry
ED-43208-15	Drum E-314 with hose 3/8" / 12 m, 20 bar, AISI 304 steel	10	20	In stock	Enquiry
ED-43208-16	Drum E-314 with hose 3/8" / 15 m, 20 bar, AISI 304 steel	10	20	In stock	Enquiry
