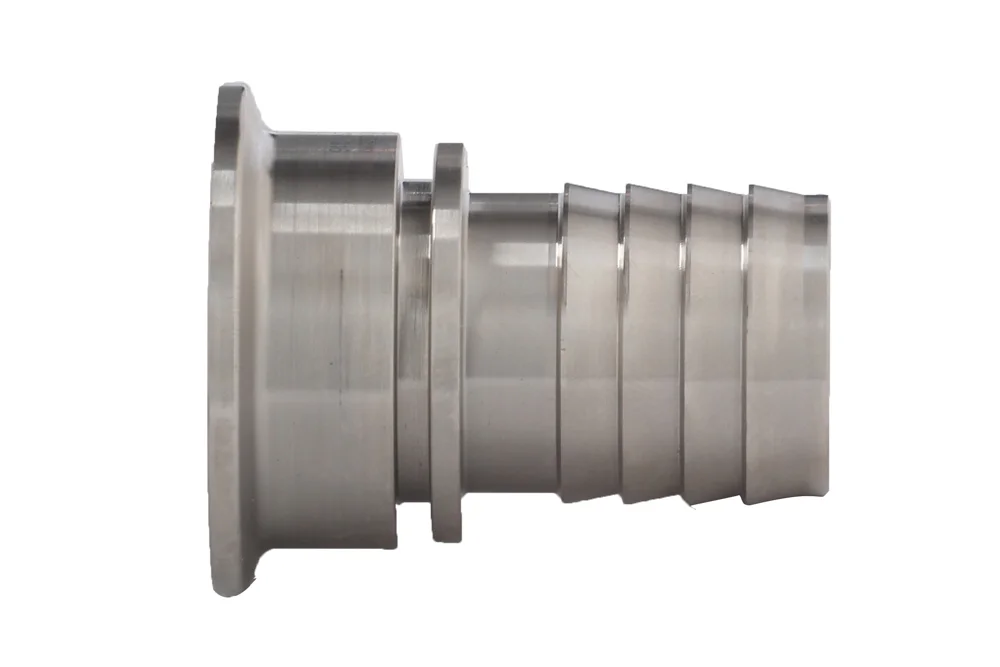

The TRICLOVER flange end with a corrugated tail is a highly reliable connection solution designed for rubber hoses, ensuring secure and hygienic transfer of liquids and high-viscosity media across demanding industries such as pharmaceuticals, biotechnology, cosmetics, food processing, and chemicals. Manufactured from premium AISI 316 stainless steel, it guarantees exceptional resistance to corrosion, durability, and compliance with strict sanitary standards. Its robust construction allows safe operation under varying pressure conditions, with a minimum working pressure of 16 bar for 2″ sizes and 10 bar for larger dimensions, depending on the clamp type applied. The corrugated tail ensures a firm grip and leak-free performance, while compatibility with TI-LD and TI-LDR clamp sleeves simplifies installation and enhances operational safety. Engineered for efficiency and reliability, this fitting provides a long-lasting, maintenance-friendly solution that supports smooth production processes, minimizes downtime, and meets the highest expectations of industries where cleanliness, precision, and performance are critical.
List of product variants
Article number
Product variant name
Nominal inner diameter
Working pressure [bar]
Enquiry
Catalogue
NH-TCK-025-09-013
End. TRICLOVER coupling 25/9.4 mm, corrugated, hose 13 mm
12
16
NH-TCK-025-10-013
End. TRICLOVER coupling 25/10 mm, corrugated, hose 13 mm
12
16
NH-TCK-025-11-013
End. TRICLOVER coupling 25/10.3 mm, corrugated, hose 13 mm
12
16
NH-TCK-025-12-013
End. TRICLOVER coupling 25/12 mm, corrugated, hose 13 mm
12
16
NH-TCK-025-14-013
End. TRICLOVER coupling 25/14 mm, corrugated, hose 13 mm
12
16
NH-TCK-025-15-013
End. TRICLOVER coupling 25/15.75 mm, corrugated, hose 13 mm
12
16
NH-TCK-025-15-016
End. TRICLOVER coupling 25/15.75 mm, corrugated, hose 16 mm
16
16
NH-TCK-025-15-019
End. TRICLOVER coupling 25/15.75 mm, corrugated, hose 19 mm
20
16
NH-TCK-025-16-019
End. TRICLOVER coupling 25/16 mm, corrugated, hose 19 mm
20
16
NH-TCK-034-10-013
End. TRICLOVER coupling 34/10 mm, corrugated, hose 13 mm
12
16
NH-TCK-034-10B-013
End. TRICLOVER coupling 34/10.3 mm, corrugated, hose 13 mm
12
16
NH-TCK-034-11-013
End. TRICLOVER coupling 34/10.7 mm, corrugated, hose 13 mm
12
16
NH-TCK-034-14-013
End. TRICLOVER coupling 34/14 mm, corrugated, hose 13 mm
12
16
NH-TCK-034-14-016
End. TRICLOVER coupling 34/14 mm, corrugated, hose 16 mm
16
16
NH-TCK-034-15-016
End. TRICLOVER coupling 34/15.2 mm, corrugated, hose 16 mm
16
16
NH-TCK-034-15-019
End. TRICLOVER coupling 34/15.2 mm, corrugated, hose 19 mm
20
16
NH-TCK-034-16-016
End. TRICLOVER coupling 34/16 mm, corrugated, hose 16 mm
16
16
NH-TCK-034-16-019
End. TRICLOVER coupling 34/16 mm, corrugated, hose 19 mm
20
16
NH-TCK-034-18-016
End. TRICLOVER coupling 34/18.1 mm, corrugated, hose 16 mm
16
16
NH-TCK-034-18-019
End. TRICLOVER coupling 34/18.1 mm, corrugated, hose 19 mm
20
16
NH-TCK-034-19-016
End. TRICLOVER coupling 34/19.3 mm, corrugated, hose 16 mm
16
16
NH-TCK-034-19-019
End. TRICLOVER coupling 34/19.3 mm, corrugated, hose 19 mm
20
16
NH-TCK-034-20-016
End. TRICLOVER coupling 34/20 mm, corrugated, hose 16 mm
16
16
NH-TCK-034-20-019
End. TRICLOVER coupling 34/20 mm, corrugated, hose 19 mm
20
16
NH-TCK-050-09-013
End. TRICLOVER coupling 50.5/9.4 mm, corrugated, hose 13 mm
12
16
NH-TCK-050-15-019
End. TRICLOVER coupling 50.5/15.75 mm, corrugated, hose 19 mm
20
16
NH-TCK-050-18-019
End. TRICLOVER coupling 50.5/18.1 mm, corrugated, hose 19 mm
20
16
NH-TCK-050-22-013
End. TRICLOVER coupling 50.5/22.1 mm, corrugated, hose 13 mm
12
16
NH-TCK-050-22-016
End. TRICLOVER coupling 50.5/22.1 mm, corrugated, hose 16 mm
16
16
NH-TCK-050-22-019
End. TRICLOVER coupling 50.5/22.1 mm, corrugated, hose 19 mm
20
16
NH-TCK-050-22-025
End. TRICLOVER coupling 50.5/22.1 mm, corrugated, hose 25 mm
25
16
NH-TCK-050-23-025
End. TRICLOVER coupling 50.5/22.6 mm, corrugated, hose 25 mm
25
16
NH-TCK-050-24-019
End. TRICLOVER coupling 50.5/23.7 mm, corrugated, hose 19 mm
20
16
NH-TCK-050-24-025
End. TRICLOVER coupling 50.5/23.7 mm, corrugated, hose 25 mm
25
16
NH-TCK-050-25-019
End. TRICLOVER coupling 50.5/25 mm, corrugated, hose 19 mm
20
16
NH-TCK-050-26-013
End. TRICLOVER coupling 50.5/26 mm, corrugated, hose 13 mm
12
16
NH-TCK-050-26-016
End. TRICLOVER coupling 50.5/26 mm, corrugated, hose 16 mm
16
16
NH-TCK-050-26-019
End. TRICLOVER coupling 50.5/26 mm, corrugated, hose 19 mm
20
16
NH-TCK-050-26-025
End. TRICLOVER coupling 50.5/26 mm, corrugated, hose 25 mm
25
16
NH-TCK-050-30-019
End. TRICLOVER coupling 50.5/29.7 mm, corrugated, hose 19 mm
20
16
NH-TCK-050-30-025
End. TRICLOVER coupling 50.5/29.7 mm, corrugated, hose 25 mm
25
16
NH-TCK-050-30-032
End. TRICLOVER coupling 50.5/29.7 mm, corrugated, hose 32 mm
32
16
NH-TCK-050-31-025
End. TRICLOVER coupling 50.5/31.3 mm, corrugated, hose 25 mm
25
16
NH-TCK-050-31-032
End. TRICLOVER coupling 50.5/31.3 mm, corrugated, hose 32 mm
32
16
NH-TCK-050-32-019
End. TRICLOVER coupling 50.5/32 mm, corrugated, hose 19 mm
20
16
NH-TCK-050-32-025
End. TRICLOVER coupling 50.5/32 mm, corrugated, hose 25 mm
25
16
NH-TCK-050-32-032
End. TRICLOVER coupling 50.5/32 mm, corrugated, hose 32 mm
32
16
NH-TCK-050-35-019
End. TRICLOVER coupling 50.5/34.8 mm, corrugated, hose 19 mm
20
16
NH-TCK-050-35-025
End. TRICLOVER coupling 50.5/34.8 mm, corrugated, hose 25 mm
25
16
NH-TCK-050-35-032
End. TRICLOVER coupling 50.5/34.8 mm, corrugated, hose 32 mm
32
16
NH-TCK-050-35-038
End. TRICLOVER coupling 50.5/34.8 mm, corrugated, hose 38 mm
38
16
NH-TCK-050-36-038
End. TRICLOVER coupling 50.5/35.6 mm, corrugated, hose 38 mm
38
16
NH-TCK-050-38-019
End. TRICLOVER coupling 50.5/38 mm, corrugated, hose 19 mm
20
16
NH-TCK-050-38-025
End. TRICLOVER coupling 50.5/38 mm, corrugated, hose 25 mm
25
16
NH-TCK-050-38-032
End. TRICLOVER coupling 50.5/38 mm, corrugated, hose 32 mm
32
16
NH-TCK-050-38-038
End. TRICLOVER coupling 50.5/38 mm, corrugated, hose 38 mm
38
16
NH-TCK-050-38B-032
End. TRICLOVER coupling 50.5/38.4 mm, corrugated, hose 32 mm
32
16
NH-TCK-050-38B-038
End. TRICLOVER coupling 50.5/38.4 mm, corrugated, hose 38 mm
38
16
NH-TCK-064-37-038
End. TRICLOVER coupling 64/37.6 mm, corrugated, hose 38 mm
38
16
NH-TCK-064-38-038
End. TRICLOVER coupling 64/38.4 mm, corrugated, hose 38 mm
38
16
NH-TCK-064-44-038
End. TRICLOVER coupling 64/44.3 mm, corrugated, hose 38 mm
38
16
NH-TCK-064-48-025
End. TRICLOVER coupling 64/47.5 mm, corrugated, hose 25 mm
25
16
NH-TCK-064-48-032
End. TRICLOVER coupling 64/47.5 mm, corrugated, hose 32 mm
32
16
NH-TCK-064-48-038
End. TRICLOVER coupling 64/47.5 mm, corrugated, hose 38 mm
38
16
NH-TCK-064-48-050
End. TRICLOVER coupling 64/47.5 mm, corrugated, hose 50 mm
50
16
NH-TCK-064-49-050
End. TRICLOVER coupling 64/48.6 mm, corrugated, hose 50 mm
50
16
NH-TCK-064-50-038
End. TRICLOVER coupling 64/50 mm, corrugated, hose 38 mm
38
16
NH-TCK-064-50-050
End. TRICLOVER coupling 64/50 mm, corrugated, hose 50 mm
50
16
NH-TCK-077-56-050
End. TRICLOVER coupling 77.5/56.3 mm, corrugated, hose 50 mm
50
16
NH-TCK-077-56-063
End. TRICLOVER coupling 77.5/56.3 mm, corrugated, hose 63 mm
65
10
NH-TCK-077-60-050
End. TRICLOVER coupling 77.5/60.3 mm, corrugated, hose 50 mm
50
16
NH-TCK-077-60-063
End. TRICLOVER coupling 77.5/60.3 mm, corrugated, hose 63 mm
65
10
NH-TCK-091-66-063
End. TRICLOVER coupling 91/66 mm, corrugated, hose 63 mm
65
10
NH-TCK-091-67-063
End. TRICLOVER fitting 91/66.8 mm, corrugated, hose 63 mm
65
10
NH-TCK-091-72-063
End. TRICLOVER coupling 91/72.1 mm, corrugated, hose 63 mm
65
10
NH-TCK-091-72-075
End. TRICLOVER coupling 91/72.1 mm, corrugated, hose 75 mm
75
10
NH-TCK-091-73-050
End. TRICLOVER coupling 91/73 mm, corrugated, hose 50 mm
50
16
NH-TCK-091-73-063
End. TRICLOVER coupling 91/73 mm, corrugated, hose 63 mm
65
10
NH-TCK-091-73-075
End. TRICLOVER coupling 91/73 mm, corrugated, hose 75 mm
75
10
NH-TCK-106-81-075
End. TRICLOVER coupling 106/81 mm, corrugated, hose 75 mm
75
10
NH-TCK-106-84-075
End. TRICLOVER coupling 106/84.3 mm, corrugated, hose 75 mm
75
10
NH-TCK-106-85-075
End. TRICLOVER coupling 106/84.9 mm, corrugated, hose 75 mm
75
10
NH-TCK-119-100-100
End. TRICLOVER coupling 119/100 mm, corrugated, hose 100 mm
100
10
NH-TCK-119-98-100
End. TRICLOVER coupling. 119/97.6 mm, corrugated, hose 100 mm
100
10
NH-TCK-130-110-100
End. TRICLOVER coupling 130/110.3 mm, corrugated, hose 100 mm
100
10
