Is the Metric ISO 12151-2 24° Cone O-Ring Straight Hose Coupling compatible with DN2 and DN4 measuring hoses and supplied with a clamping sleeve?

Yes. The Metric ISO 12151-2 24° Cone O-Ring Straight Hose Coupling is compatible with DN2 and DN4 measuring hoses and is supplied complete with a clamping sleeve. The straight measuring-hose version fits DN2 or DN4, includes the clamping sleeve for quick, secure installation, and features a 24° cone with NBR O-ring, high-quality steel construction with zinc‑nickel coating, and working pressures from 250 to 630 bar (size-dependent). Temperature range: -30°C to +120°C.

Can the Metric ISO 12151-2 24° Cone O-Ring Straight Hose Coupling withstand continuous operation at its maximum rated pressures (250–630 bar) without reducing service life?

Metric ISO 12151-2 24° Cone O-Ring Straight Hose Coupling: Yes — with qualifications. The coupling is rated for working pressures of 250–630 bar depending on size and is manufactured from high-quality steel with a corrosion‑resistant zinc‑nickel coating and an NBR O‑ring seal. These features, plus availability in lighter (L) and heavier (S) series, make it suitable for continuous high‑pressure use in demanding hydraulic systems. However, continuous operation at the maximum rated pressure will affect service life compared with operation at lower pressures. Factors that influence longevity include: - actual system pressure vs. rated pressure (peak fluctuations and spikes), - duty cycle (continuous vs. intermittent), - temperature (−30°C to +120°C rating; higher sustained temperatures accelerate wear of NBR), - fluid type and contamination, - dynamic stresses (vibration, bending, impulse loads), - correct assembly and use of the provided clamping sleeve, - maintenance practices. If your application subjects the coupling to sustained maximum pressure, repeated pressure spikes, elevated temperatures near the upper limit, or harsh contaminants, consider selecting the S (heavy) series, sizing conservatively, implementing pressure surge protection, and establishing regular inspection and maintenance to preserve service life.

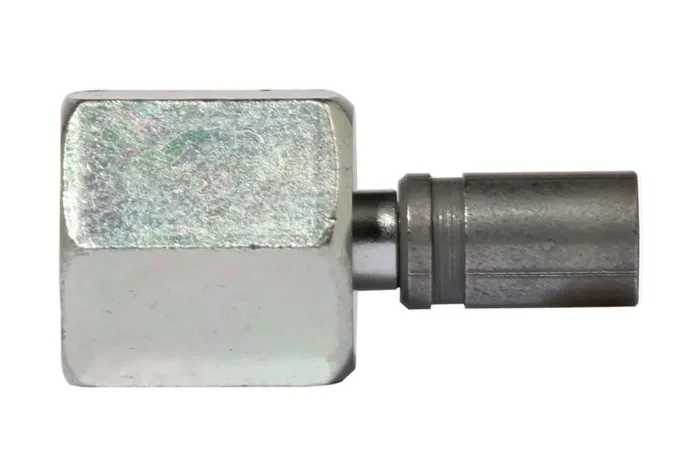

Metric ISO 12151-2 24° Cone O-Ring Straight Hose Coupling

Additional information

Material	CS – steel (cast iron)

The ISO 12151-2 metric connection with 24° cone, O-ring and nut is a reliable solution designed for demanding hydraulic applications, ensuring secure and leak-free performance. Available in both L (light series) and S (heavy series), it offers flexibility to match diverse system requirements. The straight version with a measuring hose end is compatible with DN2 or DN4 hoses and comes complete with a clamping sleeve for quick and safe installation. Manufactured from high-quality steel with a durable zinc-nickel coating, it provides excellent resistance to corrosion and extended service life even in harsh environments. With working pressures ranging from 250 bar up to 630 bar depending on size, this connection guarantees consistent performance under high loads. The NBR O-ring ensures reliable sealing, while the operating temperature range from -30°C to +120°C makes it suitable for a wide variety of industrial and mobile hydraulic systems. This robust and versatile connection is the ideal choice for professionals seeking efficiency, durability, and safety in hydraulic assemblies.

List of product variants

Article number	Product variant name	Nominal inner diameter	Working pressure [bar]
PS-801-40-006-00	End. GW M12x1.5 light, cone 24°, o-ring, hose 2x5 mm, with sleeve	2	250
PS-801-40-008-00	End. GW M14x1.5 light, cone 24°, o-ring, hose 2x5 mm, with sleeve	2	250
PS-801-40-010-00	End. GW M16x1.5 light, cone 24°, o-ring, hose 2x5 mm, with sleeve	2	250
PS-801-41-006-00	End. GW M14x1.5 heavy, cone 24°, o-ring, hose 2x5 mm, with sleeve	2	630
PS-801-41-008-00	End. GW M16x1.5 heavy, 24° cone, o-ring, hose 2x5 mm, with sleeve	2	630
PS-801-41-010-00	End. GW M18x1.5 heavy, cone 24°, o-ring, hose 2x5 mm, with sleeve	2	630
PS-804-40-006-00	End. GW M12x1.5 light, cone 24°, o-ring, hose 4x8 mm, with sleeve	4	250
PS-804-40-008-00	End. GW M14x1.5 light, cone 24°, o-ring, hose 4x8 mm, with sleeve	4	250
PS-804-40-010-00	End.GW M16x1.5 light, cone 24°, o-ring, hose 4x8 mm, with sleeve	4	250
PS-804-41-006-00	End. GW M14x1.5 heavy, cone 24°, o-ring, hose 4x8 mm, with sleeve	4	500
PS-804-41-008-00	End. GW M16x1.5 heavy, cone 24°, o-ring, hose 4x8 mm, with sleeve	4	500
PS-804-41-010-00	End. GW M18x1.5 heavy, cone 24°, o-ring, hose 4x8 mm, with sleeve	4	500
