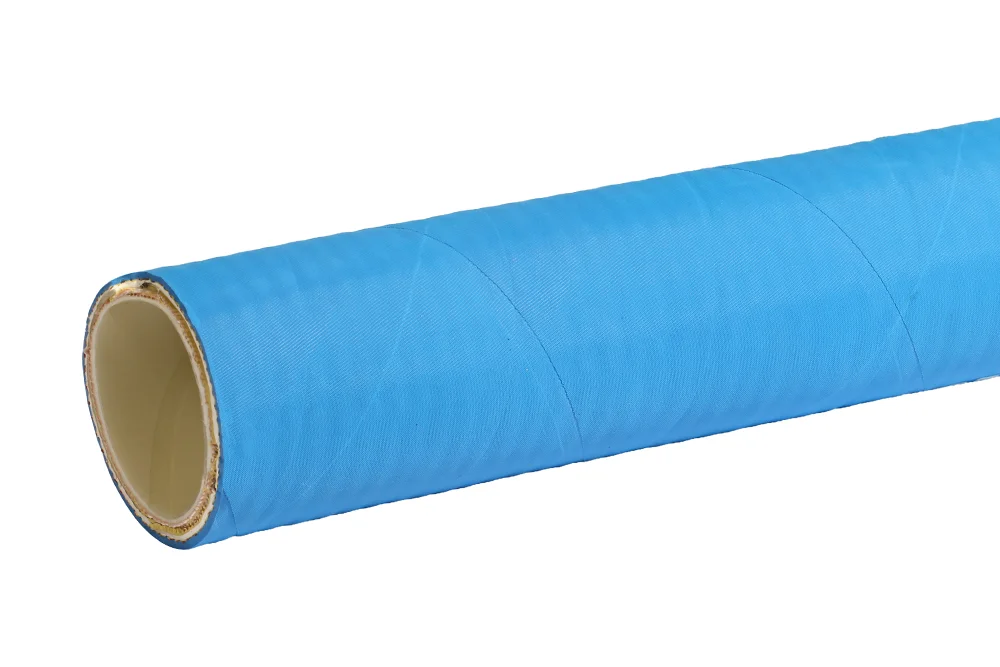

Hose for conveying chemistry in industry food SUPERTOP LL FOOD UPE®

Additional information

Material

UPE – polyethylene UPE

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-30

Vacuum resistance

yes

Standard length [m]

30, 60

Reinforcement

steel spiral, synthetic cover

Strong hose suction-delivery intended for conveying liquid chemicals, in this aggressive acids, bases, alcohols and other detergents used for cleaning installation in plants food (selection in accordance with rules acc. to chapter „hoses chemical” this catalogue). Layer inner with UPE compliant with requirements FDA for contact with food. Widely used in industry food, cosmetic, chemical and petrochemical. has copper cable ensuring continuity electrical between fitting hose. Layer outer resistant to abrasion, ozone and conditions atmospheric. compliant with requirements EN 12115:11 (type M, resistance between fitting line R ≤ 100 Ω, guaranteed for lines o length for 40 m). standards and requirements : 1) hoses chemical EN 12115:2011. industry food, contact with food (Layer inner) 1935/2004/EC, 2023/2006/EC (GMP), 10/2011/EU (simulant fluids A, B, D2), FDA 21 CFR 177.1520, BfR III. assembly : smooth ends with a spigot (“tail” into the hose) must be used, without sharp or high barbs that could cut or damage the UPE inner layer after clamping. The spigot diameter should be precisely matched to the hose diameter to ensure tightness. Assembly with clamping ferrules or shell clamps. Inner layer: white polyethylene UPE. Reinforcement: cord synthetic, steel spiral. Outer layer: blue EPDM rubber. Working pressure: 16 bar. Vacuum: 0.8 ÷ 0.9 bar – depending on the diameter hose. Operating temperature: -30°C up to +100°C.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-SUPUPE-LL-F-019Hose SUPERTOP/LL FOOD UPE 19x31.5 mm2016In stock0 €
Enquiry
IV-SUPUPE-LL-F-025Hose SUPERTOP/LL FOOD UPE 25x37 mm2516In stock0 €
Enquiry
IV-SUPUPE-LL-F-038Hose SUPERTOP/LL FOOD UPE 38x53 mm3816In stock0 €
Enquiry
IV-SUPUPE-LL-F-051Hose SUPERTOP/LL FOOD UPE 51x66.5 mm5016In stock0 €
Enquiry
IV-SUPUPE-LL-F-063Hose SUPERTOP/LL FOOD UPE 63.5x79 mm6516In stock0 €
Enquiry
IV-SUPUPE-LL-F-076Hose SUPERTOP/LL FOOD UPE 76x91 mm7516In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Strong hose suction-delivery intended for conveying liquid chemicals, in this aggressive acids, bases, alcohols and other detergents used for cleaning installation in plants food (selection in accordance with rules acc. to chapter „hoses chemical” this catalogue). Layer inner with UPE compliant with requirements FDA for contact with food. Widely used in industry food, cosmetic, chemical and petrochemical. has copper cable ensuring continuity electrical between fitting hose. Layer outer resistant to abrasion, ozone and conditions atmospheric. compliant with requirements EN 12115:11 (type M, resistance between fitting line R ≤ 100 Ω, guaranteed for lines o length for 40 m). standards and requirements : 1) hoses chemical EN 12115:2011. industry food, contact with food (Layer inner) 1935/2004/EC, 2023/2006/EC (GMP), 10/2011/EU (simulant fluids A, B, D2), FDA 21 CFR 177.1520, BfR III. assembly : smooth ends with a spigot (“tail” into the hose) must be used, without sharp or high barbs that could cut or damage the UPE inner layer after clamping. The spigot diameter should be precisely matched to the hose diameter to ensure tightness. Assembly with clamping ferrules or shell clamps. Inner layer: white polyethylene UPE. Reinforcement: cord synthetic, steel spiral. Outer layer: blue EPDM rubber. Working pressure: 16 bar. Vacuum: 0.8 ÷ 0.9 bar – depending on the diameter hose. Operating temperature: -30°C up to +100°C.

Additional information

Material

UPE – polyethylene UPE

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-30

Vacuum resistance

yes

Standard length [m]

30, 60

Reinforcement

steel spiral, synthetic cover
