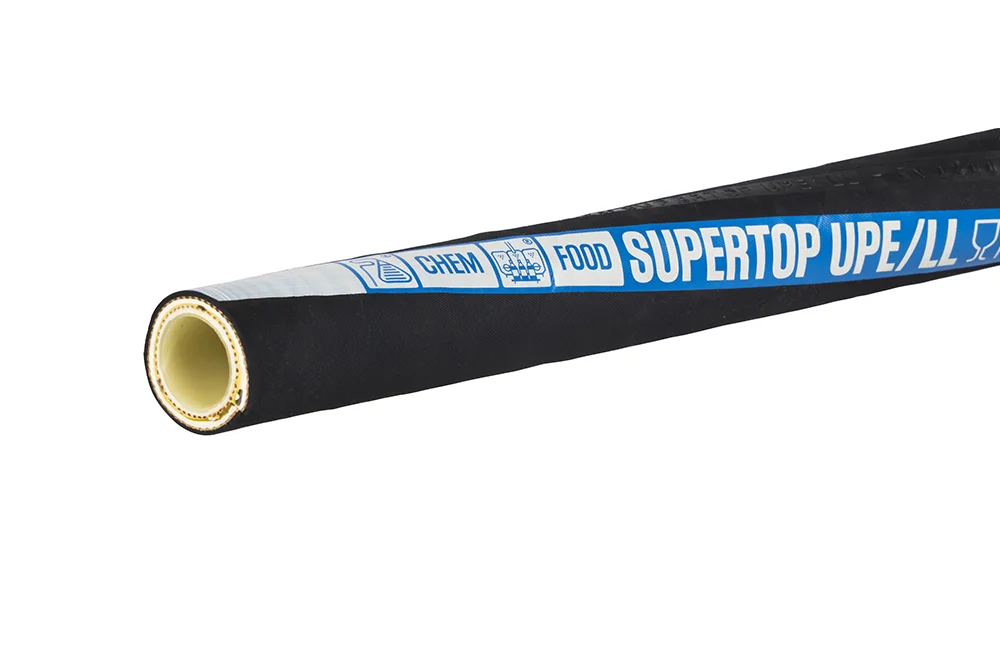

SUPERTOP/LL UPE® Suction & Discharge Hose for Chemical Liquids

Additional information

Material

UPE – polyethylene UPE

Maximum operating temperature [°C]

100

Minimum operating temperature [°C]

-40

Vacuum resistance

yes

Standard length [m]

60, 60/ 120

Reinforcement

steel spiral, synthetic cover

This highly durable suction and discharge hose is designed for demanding applications, featuring an inner layer of ultra-high molecular weight polyethylene (UPE, UHMWPE) that ensures exceptional resistance to a wide range of acids, bases, and aggressive chemicals, even at elevated temperatures. Its smooth, low-friction surface prevents deposits, simplifies cleaning, and meets strict food-grade standards, making it ideal not only for the chemical and petrochemical sectors but also for the food, cosmetic, and pharmaceutical industries. Free from phthalates and PAH, the hose guarantees safe contact with sensitive media while maintaining compliance with European and FDA regulations. Reinforced with a robust synthetic cord, steel spiral, and integrated copper wires for reliable electrostatic discharge, it delivers maximum safety in critical environments. The outer layer, crafted from high-quality EPDM rubber, offers outstanding resistance to abrasion, ozone, and weathering, ensuring long service life even under harsh conditions. With a working pressure of 16 bar, an operating temperature range from -40°C to +100°C, and full compliance with EN 12115:2011 standards, this hose provides a secure, versatile, and efficient solution for industries requiring both chemical resistance and food safety.

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
IV-SUPUPE-LL-019SUPERTOP/LL UPE hose 19x31 mm2016In stock
Enquiry
IV-SUPUPE-LL-025SUPERTOP/LL UPE hose 25x37 mm2516In stock
Enquiry
IV-SUPUPE-LL-032SUPERTOP/LL UPE hose 32x44 mm3216In stock
Enquiry
IV-SUPUPE-LL-038SUPERTOP/LL UPE hose 38x51 mm3816In stock
Enquiry
IV-SUPUPE-LL-051SUPERTOP/LL UPE hose 51x65 mm5016In stock
Enquiry
IV-SUPUPE-LL-063Hose SUPERTOP/LL UPE 63.5x78 mm6516In stock
Enquiry
IV-SUPUPE-LL-076Hose SUPERTOP/LL UPE 76x91 mm7516In stock
Enquiry
IV-SUPUPE-LL-102SUPERTOP/LL Hose UPE 102x118 mm10016In stock
Enquiry

Do you need a larger quantity of products or a bespoke quote?

This highly durable suction and discharge hose is designed for demanding applications, featuring an inner layer of ultra-high molecular weight polyethylene (UPE, UHMWPE) that ensures exceptional resistance to a wide range of acids, bases, and aggressive chemicals, even at elevated temperatures. Its smooth, low-friction surface prevents deposits, simplifies cleaning, and meets strict food-grade standards, making it ideal not only for the chemical and petrochemical sectors but also for the food, cosmetic, and pharmaceutical industries. Free from phthalates and PAH, the hose guarantees safe contact with sensitive media while maintaining compliance with European and FDA regulations. Reinforced with a robust synthetic cord, steel spiral, and integrated copper wires for reliable electrostatic discharge, it delivers maximum safety in critical environments. The outer layer, crafted from high-quality EPDM rubber, offers outstanding resistance to abrasion, ozone, and weathering, ensuring long service life even under harsh conditions. With a working pressure of 16 bar, an operating temperature range from -40°C to +100°C, and full compliance with EN 12115:2011 standards, this hose provides a secure, versatile, and efficient solution for industries requiring both chemical resistance and food safety.
