Can the Manual Compressed Air Shut-Off Valve V3V, No End Fittings, SYNTESI® Series accept two padlocks (SY1) and three padlocks (SY2) simultaneously for enhanced lockout/tagout safety?

Yes. The Manual Compressed Air Shut-Off Valve V3V, No End Fittings, SYNTESI® Series can accept two padlocks (size SY1) or three padlocks (size SY2) simultaneously for enhanced lockout/tagout safety. It also offers an alternative version with a Ø 7 mm hole for a single padlock. Additionally, the valve provides auxiliary front and rear connections (1/8” for SY1 and 1/4” for SY2) for pressure gauges, sensors, or extra air intakes.

Does the Manual Compressed Air Shut-Off Valve V3V, No End Fittings, SYNTESI® Series support auxiliary pressure gauge connections on both front and rear surfaces for monitoring during lockout/tagout?

Yes. The Manual Compressed Air Shut-Off Valve V3V, No End Fittings, SYNTESI® Series provides auxiliary pressure/gauge connections on both front and rear surfaces: 1/8” for the SY1 version and 1/4” for the SY2 version, allowing installation of pressure gauges, sensors, or additional air intakes for monitoring during lockout/tagout.

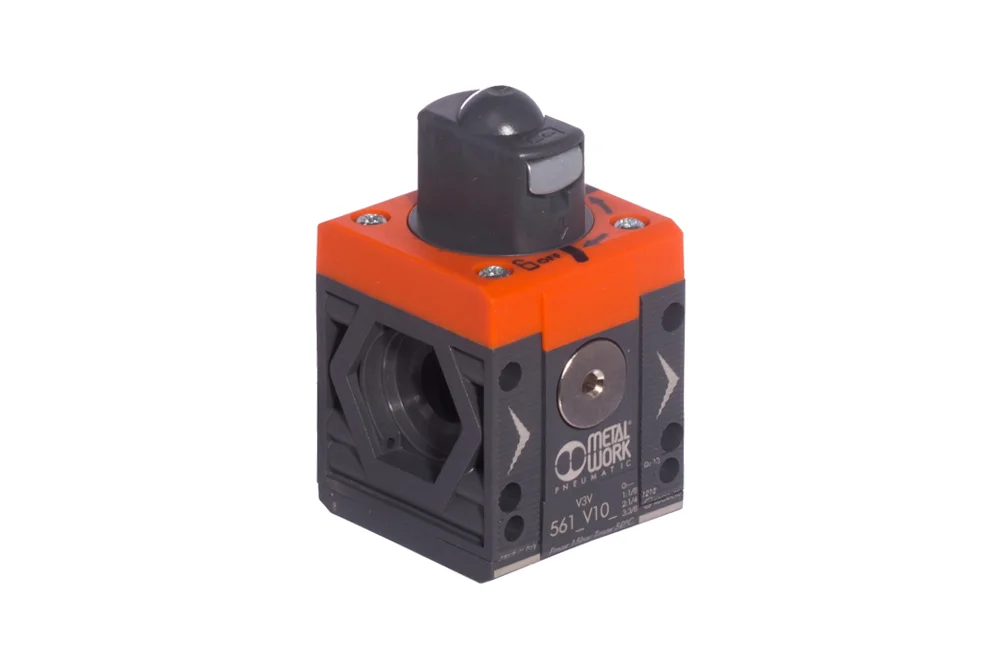

Valve shut-off manual for compressed air V3V, without end connections, series SYNTESI®

Air preparation elements (FRL), All products/

Additional information

Maximum operating temperature [°C]	50
Minimum operating temperature [°C]	-10

Valve shut-off Controlled manually V3V series SYNTESI®, without end connections, serves for separation the system working od air supply. is to valve three-way, two-position, normally closed. W position closed cuts off air supply and vents configuration, co makes go especially useful at performing work service. has configuration allowing on mounting dwu in size SY1 or three in size SY2 padlocks o diameter 3 mm. alternatively Available is version with a hole Ø 7 for single padlock. On rear and front surface valve is found the connection auxiliary (1/8” for rate SY1 and 1/4” for size SY2) for connection pressure gauge, sensor pressure or for additional draw air. Size: SY1, SY2. Connection: 1/8″ BSP female, 1/4″, with the front and with the back. Supply pressure: up to 15 bar, depending on size. Operating temperature: od -10°C up to +50°C. Flow rate nominal: for 4000 l/min, depending on size (at an inlet pressure of 6 bar and Δp = 1 bar).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Price	Quantity	Actions	Catalogue
MW-5610V100	Shut-off valve manual V3V SY1 without end plates	-	-	In stock	0 €		Enquiry
MW-5620V100	Shut-off valve manual V3V SY2 without end plates	-	-	In stock	0 €		Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

Valve shut-off Controlled manually V3V series SYNTESI®, without end connections, serves for separation the system working od air supply. is to valve three-way, two-position, normally closed. W position closed cuts off air supply and vents configuration, co makes go especially useful at performing work service. has configuration allowing on mounting dwu in size SY1 or three in size SY2 padlocks o diameter 3 mm. alternatively Available is version with a hole Ø 7 for single padlock. On rear and front surface valve is found the connection auxiliary (1/8” for rate SY1 and 1/4” for size SY2) for connection pressure gauge, sensor pressure or for additional draw air. Size: SY1, SY2. Connection: 1/8″ BSP female, 1/4″, with the front and with the back. Supply pressure: up to 15 bar, depending on size. Operating temperature: od -10°C up to +50°C. Flow rate nominal: for 4000 l/min, depending on size (at an inlet pressure of 6 bar and Δp = 1 bar).
