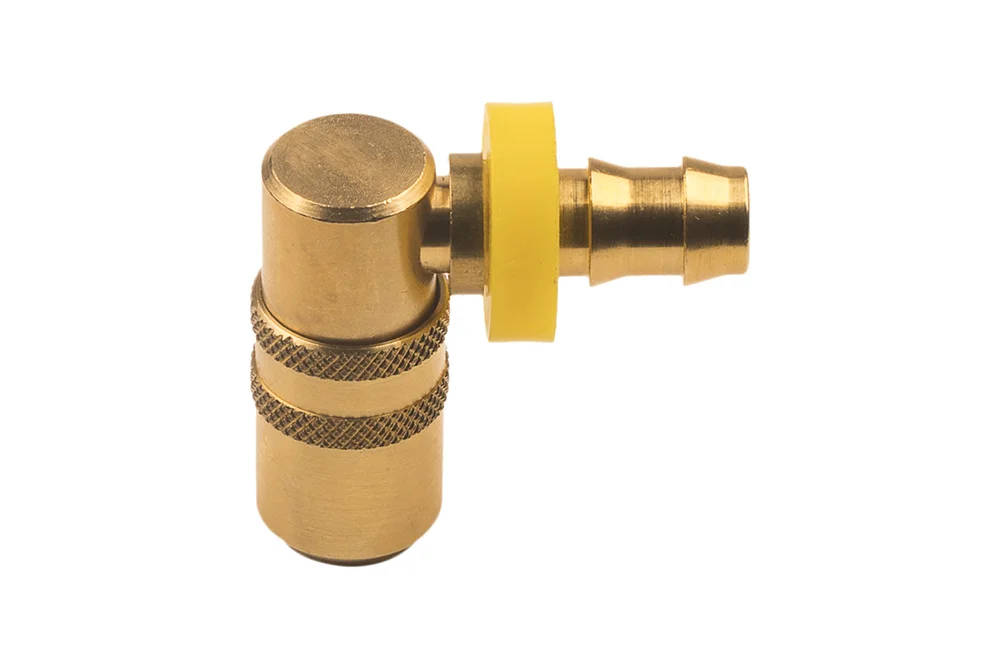

Socket 90° DN 6 quick coupling with fitting for hose PUSH-ON, series TST 060, brass

Additional information

Material

B – brass (bronze)

Socket 90° DN 6 quick coupling with “tail” for hose PUSH-ON, with valve or without valve, used widely in industry for cooling moulds injection and casting parts with plastics, aluminum, brass and alloys zinc. can be used for water in cleaning machines, for hot oil, steam water. Diameter bore: 6 mm. Working pressure: 25 bar. Operating temperature: od -20°C up to +200°C (Viton). Material: brass (body socket, Connection, sleeve valve), steel stainless (spring, ring, balls).

List of product variants

Article numberProduct variant nameDNBARAvailabilityPriceQuantityActionsCatalogue
FW-CSK060-FG06-90Socket 90° DN 6 with Fitting for hose PUSH-ON 6.7 mm, with a valve625In stock0 €
Enquiry
FW-CSK060-FG10-90Socket 90° DN 6 with Fitting for hose PUSH-ON 10 mm, with a valve1025In stock0 €
Enquiry
FW-SK060-FG06-90Socket 90° DN 6 with Fitting for hose PUSH-ON 6.7 mm, without valve625In stock0 €
Enquiry
FW-SK060-FG10-90Socket 90° DN 6 with Fitting for hose PUSH-ON 10 mm, without valve1025In stock0 €
Enquiry

Do you need a larger quantity of products or a bespoke quote?

Socket 90° DN 6 quick coupling with “tail” for hose PUSH-ON, with valve or without valve, used widely in industry for cooling moulds injection and casting parts with plastics, aluminum, brass and alloys zinc. can be used for water in cleaning machines, for hot oil, steam water. Diameter bore: 6 mm. Working pressure: 25 bar. Operating temperature: od -20°C up to +200°C (Viton). Material: brass (body socket, Connection, sleeve valve), steel stainless (spring, ring, balls).

Additional information

Material

B – brass (bronze)

Do you need a larger quantity of products or a bespoke quote?
