What maintenance is required to ensure long-term leak-free performance of the Hydraulic 2-Way Valve with Metric External Thread, Type BKH L/S?

To ensure long-term leak-free performance of the Hydraulic 2-Way Valve with Metric External Thread, Type BKH L/S, follow these maintenance guidelines: - Regular visual inspection: check for external leaks, corrosion, thread damage and mechanical wear on body, stem and fittings. Inspect connections for proper torque and seal integrity. - Seal checks and replacement: monitor PA ball seal and NBR stem seal for wear, hardening or swelling. Replace seals at first signs of deterioration; use manufacturer-specified PA and NBR replacements to maintain temperature and chemical compatibility. - Cleanliness: keep valve and surrounding hydraulic lines free of dirt, chips and contamination. Flush system before installation and after major repairs to prevent abrasive wear on ball and seals. - Operational cycling: operate the valve periodically through full open/close cycles to prevent sticking and to distribute lubricants evenly on the ball and stem. - Pressure and temperature limits: always operate within specified pressure ratings and temperature ranges (PA: -40°C to +100°C; NBR: -20°C to +100°C). Avoid thermal shocks and pressures beyond the valve’s series rating (L or S) to prevent seal failure. - Lubrication: if applicable, use compatible hydraulic fluid and follow system lubrication practices; avoid additives incompatible with PA or NBR. - Thread and fitting care: inspect DIN 2353 metric external threads for damage; re-torque fittings to recommended values and replace damaged fittings to maintain leak-free joints. - Scheduled maintenance: include the valve in routine preventive maintenance intervals; more frequent checks in abrasive, high-pressure or high-cycle applications. - Documentation and spares: keep service records and stock critical spare seals and fittings to minimize downtime. Following these steps will maximize the durability and leak-free performance of the Hydraulic 2-Way Valve with Metric External Thread, Type BKH L/S.

How does the Hydraulic 2-Way Valve with Metric External Thread, Type BKH L/S perform under cyclic high-pressure loads and what is its expected service life?

Hydraulic 2-Way Valve with Metric External Thread, Type BKH L/S demonstrates strong performance under cyclic high-pressure loads due to its robust steel construction (body, ball, stem) and precision sealing. The PA ball seal and NBR stem seal ensure reliable tightness and resistance to wear across a wide temperature range (PA: −40°C to +100°C; NBR: −20°C to +100°C), reducing leak risk and seal degradation during repeated pressure cycles. The availability in light (L) and heavy (S) series allows selection matched to cycle frequency and peak pressures—S series offers higher fatigue resistance for more demanding cyclic duty. Expected service life depends on operating conditions (pressure amplitude, cycle frequency, fluid cleanliness, temperature). Under typical high-pressure hydraulic service with proper filtration and maintenance, the valve generally provides long-term reliable operation: L series for moderate cyclic loads over thousands to tens of thousands of cycles; S series for intensive cyclic high-pressure applications extending service life significantly beyond that of the L series. Compact design and wear-resistant materials further extend intervals between maintenance. For precise lifetime estimates and safety margins, perform application-specific fatigue analysis or consult supplier test data based on your exact pressure profile and cycle rate.

Valve hydraulic two-way with thread external metric, type BKH L/S

All products, Directional control valves/

Additional information

Material	CS – steel (cast iron)

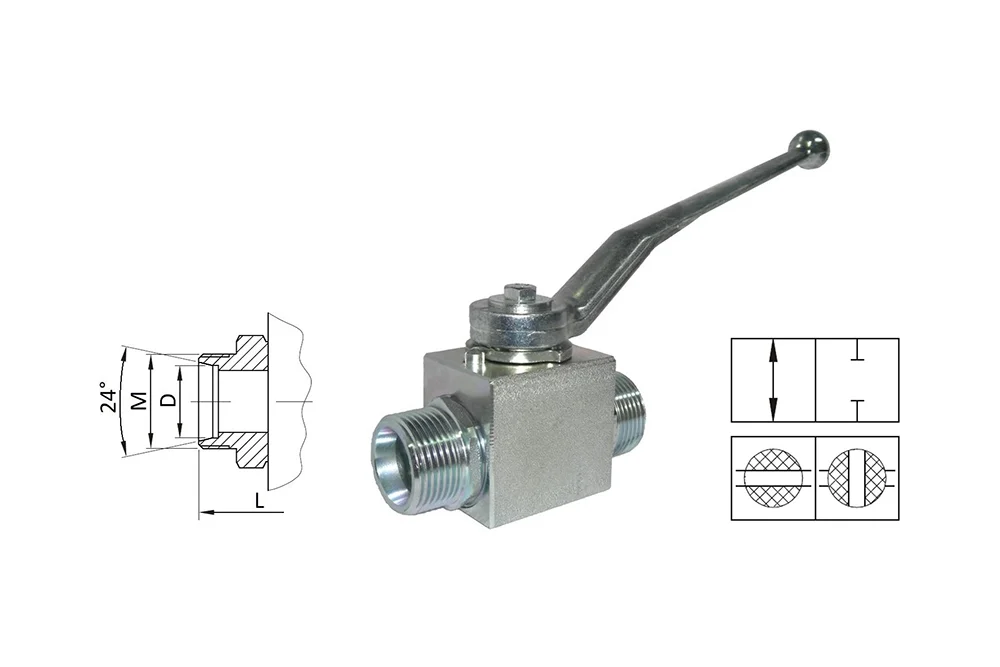

High quality two-way ball valve type BKH L/S with external thread metric, DIN 2353, intended for high-pressure installation hydraulic. occurs as: L (series light), S (series heavy). Material: steel (body, ball, stem). seal: PA (ball), NBR (stem). Operating temperature: od -40°C up to +100°C (PA): od -20°C up to +100°C (NBR).

List of product variants

Article number	Product variant name	DN	BAR	Availability	Actions
HZ-BKH-06L	Valve two-way DN4 with M12x1.5 male, PA/NBR, light	4	500	In stock	Enquiry
HZ-BKH-08L	Valve two-way DN6 with M14x1.5 male, PA/NBR, light	6	500	In stock	Enquiry
HZ-BKH-08S	Valve two-way DN4 with M16x1.5 male, PA/NBR, heavy	4	500	In stock	Enquiry
HZ-BKH-10L	Valve two-way DN8 with M16x1.5 male, PA/NBR, light	8	500	In stock	Enquiry
HZ-BKH-10S	Valve two-way DN6 with M18x1.5 male, PA/NBR, heavy	6	500	In stock	Enquiry
HZ-BKH-12L	Valve two-way DN10 with M18x1.5 male, PA/NBR, light	10	500	In stock	Enquiry
HZ-BKH-12S	Valve two-way DN8 with M20x1.5 male, PA/NBR, heavy	8	500	In stock	Enquiry
HZ-BKH-14S	Valve two-way DN10 with M22x1.5 male, PA/NBR, heavy	10	500	In stock	Enquiry
HZ-BKH-15L	Valve two-way DN13 with M22x1.5 male, PA/NBR, light	12	500	In stock	Enquiry
HZ-BKH-16S	Valve two-way DN13 with M24x1.5 male, PA/NBR, heavy	12	500	In stock	Enquiry
HZ-BKH-18L	Valve two-way DN13 with M26x1.5 male, PA/NBR, light	12	500	In stock	Enquiry
HZ-BKH-20S	Valve two-way DN13 with M30x2 male, PA/NBR, heavy	12	500	In stock	Enquiry
HZ-BKH-22L	Valve two-way DN20 with M30x2 male, PA/NBR, light	20	400	In stock	Enquiry
HZ-BKH-25S	Valve two-way DN20 with M36x2 male, PA/NBR, heavy	20	400	In stock	Enquiry
HZ-BKH-28L	Valve two-way DN25 with M36x2 male, PA/NBR, light	25	350	In stock	Enquiry
HZ-BKH-30S	Valve two-way DN25 with M42x2 male, PA/NBR, heavy	25	350	In stock	Enquiry
HZ-BKH-35L	Valve two-way DN25 with M45x2 male, PA/NBR, light	25	350	In stock	Enquiry
HZ-BKH-38S	Valve two-way DN25 with M52x2 male, PA/NBR, heavy	25	350	In stock	Enquiry
HZ-BKH-42L	Valve two-way DN25 with M52x2 male, PA/NBR, light	25	500	In stock	Enquiry

Do you need a larger quantity of products or a bespoke quote?

Call us: +91 8 925 918 796 or email us: chennai@tubes-international.com

SEND ENQUIRY

High quality two-way ball valve type BKH L/S with external thread metric, DIN 2353, intended for high-pressure installation hydraulic. occurs as: L (series light), S (series heavy). Material: steel (body, ball, stem). seal: PA (ball), NBR (stem). Operating temperature: od -40°C up to +100°C (PA): od -20°C up to +100°C (NBR).
